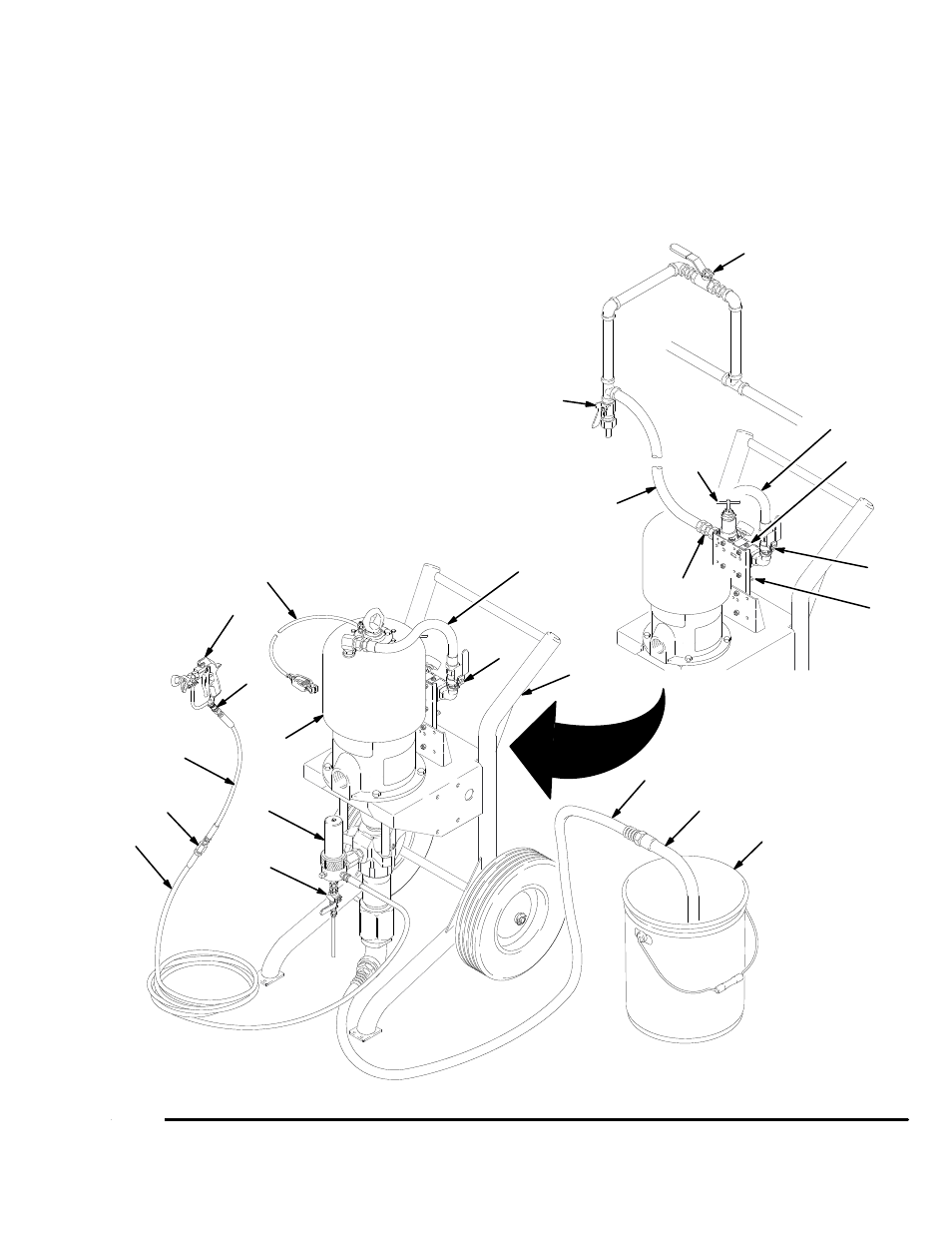

Fig. 2
Model 237–296 Shown
KEY
SUPPLIED WITH ALL MODELS
1 Pump
2 Cart
4 Fluid Filter (includes drain valve D)
(surge tank on Model 237–281)
D Fluid Drain Valve (required)
7 Suction Tube
8 Suction Hose
19 Air Regulation Kit (includes items
F, G, H, and J)
F Red-Handled Bleed-Type Master
Air Valve (required, for pump)
G Air Line Inlet Swivel
H Pump Air Filter/Regulator
J Air Manifold
25 Pump Air Hose
26 Ground Wire (required; see page 5
for installation instructions)
38 Air Relief Valve (partially hidden)
SUPPLIED WITH MODELS 237–296 AND
238–906 ONLY
102Airless Spray Gun
103Electrically Conductive Fluid
Supply Hose
104Electrically Conductive Fluid Whip Hose
105Coupling
106Gun Swivel
COMPONENTS YOU MUST SUPPLY
A Electrically Conductive Air Supply Hose
B Bleed-Type Master Air Valve
(for accessories)
C Air Line Moisture Trap and Drain Valve
E Grounded 5 Gallon (19 Liter) Pail
1
2
F
A
B
D
103
104
26
4
106
102
105
8
7
G
H
38
C
E
Detail of Air Line Connection
and Air Regulation Kit (19)
J
25
25
F
308-425 7
Setup
