G0514X/-X2/-X2B/-X3 (Mfg. Since 2/12)
-41-
foot Brake
the Models g0514X2 and g0514X3 are equipped
with a foot brake (
figure 69). use the brake to cut
power to the motor and bring the blade to a halt.

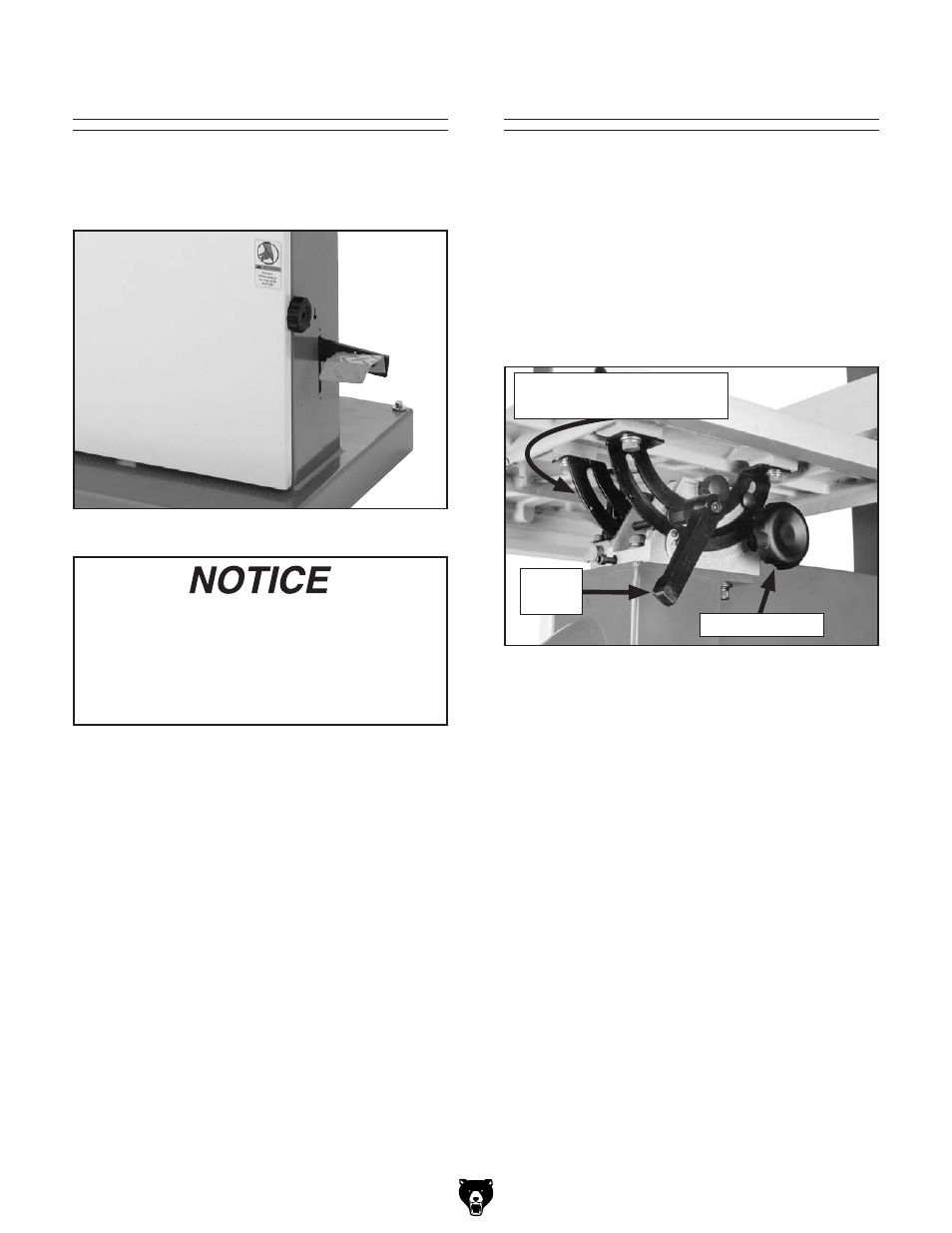

figure 69. Foot brake.
Table Tilt
the bandsaw table will tilt 5˚ left and 45˚ right to
provide a wide range of cutting options. remove
the positive stop bolt to tilt the table to the left.
G0514X Table Tilt
1. disConneCt BandsaW FroM poWer!
2. loosen the lock handle on the table trunnion,
shown in figure 70.
3. turn the table tilt knob to position the table
to the desired angle of tilt. refer to the angle
gauge on the front table trunnion for the tilting
angle.
4. to tilt the table to the left, turn the table tilt
knob clockwise one turn, remove or lower
the positive stop bolt, then turn the tilt knob
counterclockwise.
5. retighten the lock handle to secure the
table.
6. Follow positive Stop instructions on page
25 for resetting the stop bolt and table for
horizontal (0º) operations.
The foot brake will not stop the bandsaw
wheels and blade instantly. DO NOT become
over confident and relax your safety aware-
ness because of the foot brake feature. Make
sure the bandsaw blade has stopped mov-
ing completely before leaving the machine.
figure 70. g0514X table tilt controls.
table tilt Knob
lock
handle
angle indicator scale
located on opposite Face
