-38-
G0514X/-X2/-X2B/-X3 (Mfg. Since 2/12)
front controls
A. Blade Tension Scale: allows for easy moni-
toring of blade tension.
B. Blade Tension handwheel: tensions blade
in gradual increments.
c. Blade Tracking Window: allows for easy
monitoring of blade tracking (refer to page
23).
D. fence and Miter Gauge: allows for con-
trolled straight or angle cutting.
Rear controls
f. Guide post handwheel and Lock Knob:
Moves blade guide support quickly to the
desired height on the guide post; locks set-
ting (refer to
page 42).
G. Quick Release Blade Tension Lever:
adjusts blade tension for quick blade chang-
es.
h. Blade Tracking Knob and Lock Lever:
Moves and locks blade tracking.
I. Table Tilt Lock Levers (G0514X): locks or
unlocks the table at the current angle.

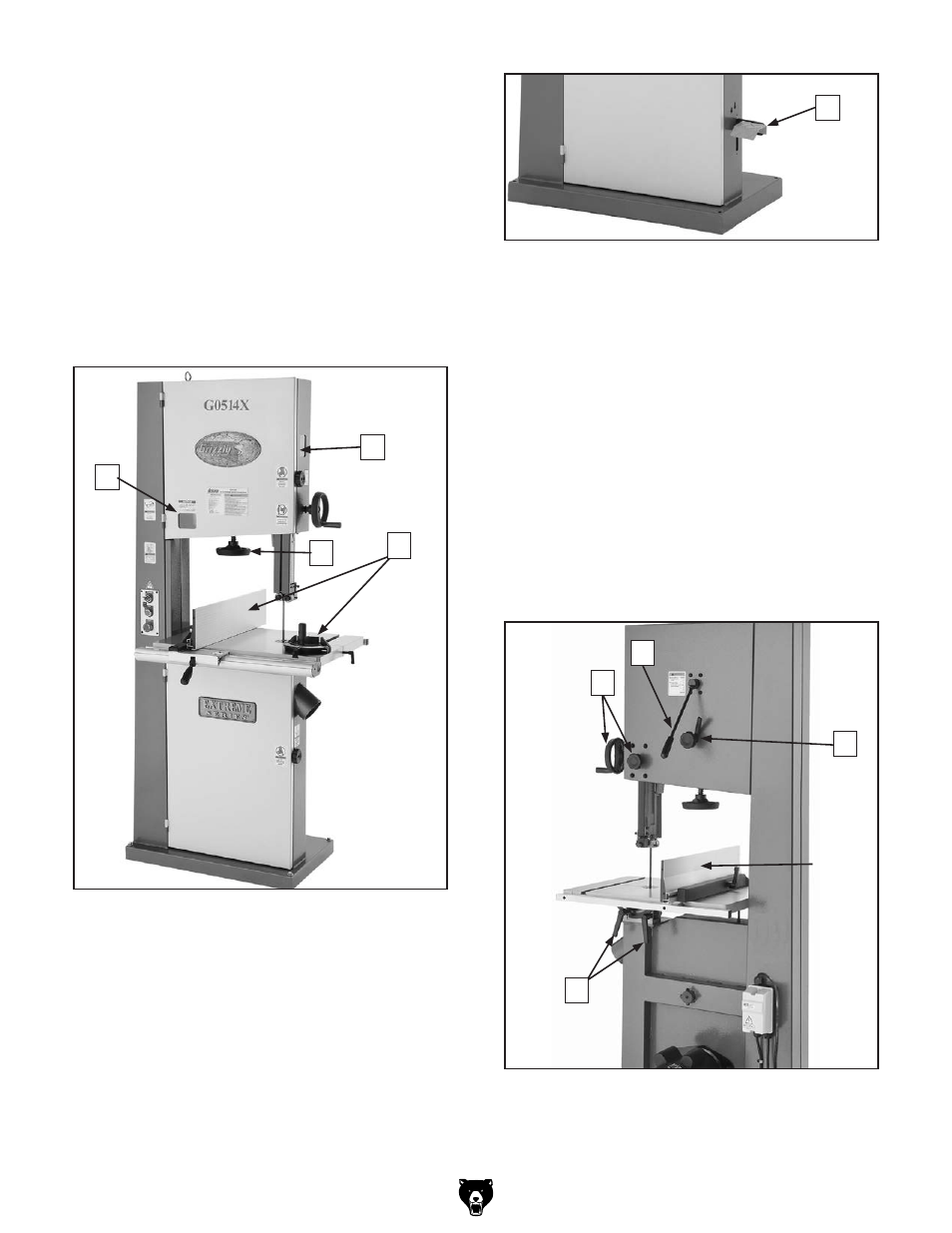

figure 64. Foot brake.
e
figure 63. Front controls (g0514X).
a
B
C
d
E. foot Brake (G0514X2 & G0514X3): Cuts
power to motor and allows bandsaw blade to
be quickly brought to a stop.
figure 65. rear controls (g0514X).
F
g
i
h
