Grizzly Extreme Series Bandsaw G0514X - Manual (Page 29)

G0514X/-X2/-X2B/-X3 (Mfg. Since 2/12)
-27-
4. thread the M6-1 hex nut onto the rail pad,
then thread the rail pad into the fence (see
figure 37).

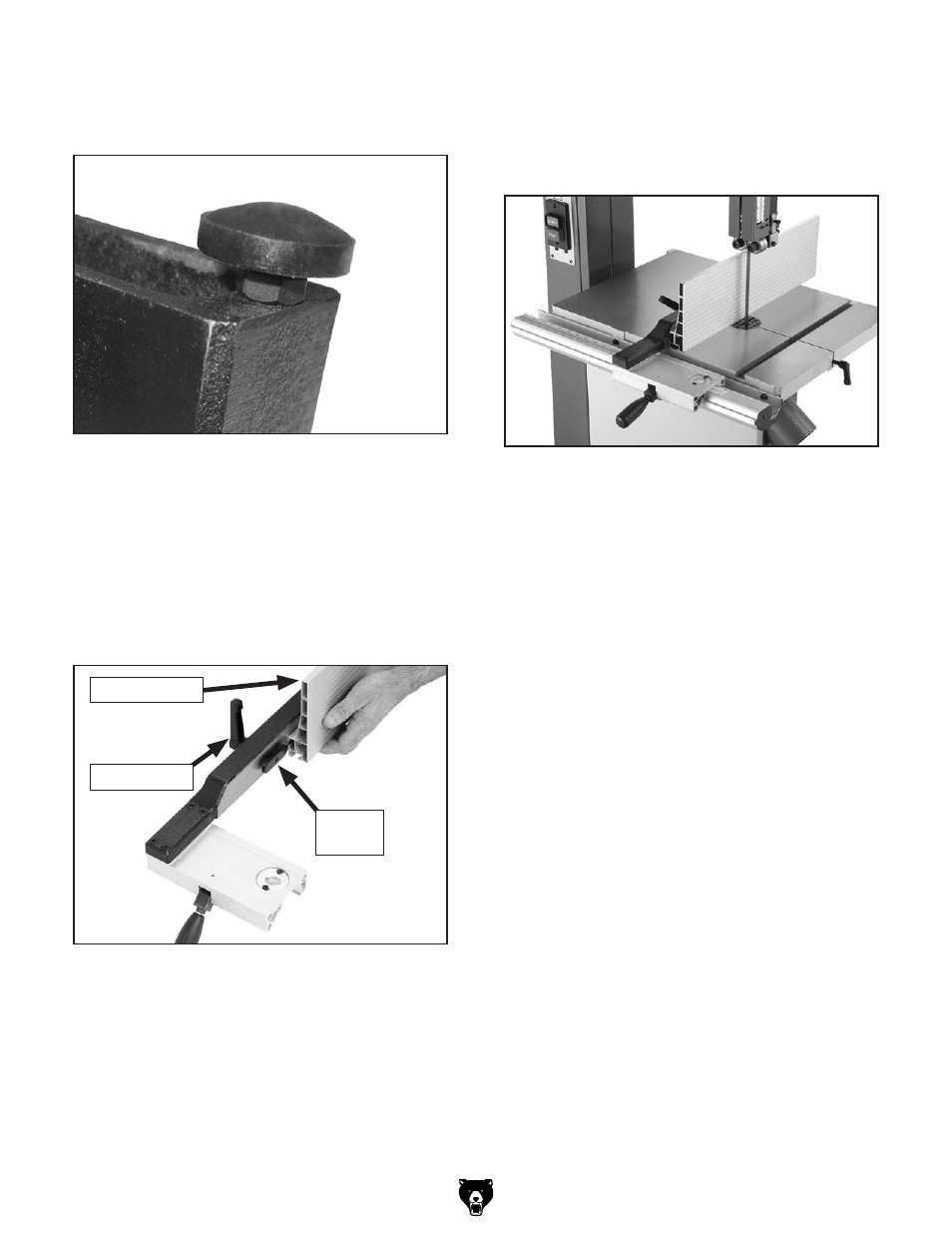

figure 37. installed rail pad.
5. place the 8mm flat washer on the lock han-
dle, slide it through the hole in the fence, then
thread the moving plate onto the end of the
lock handle threads.
6. slide the resaw fence over the moving plate,
as shown in figure 38, so the moving plate
fits inside the channel of the resaw fence.
7. tighten the lock handle.
8. pull the fence handle up and place the fence
assembly on the fixed rail as, shown in
figure 39.
figure 39. Correctly installed fence.
9. push the fence handle down to lock the fence
assembly in place.
10. adjust the rail pad until there is an even gap
between the bottom of the fence and the
table, then tighten the hex nut against the
fence.
figure 38. attaching resaw fence to standard
fence.
resaw Fence
lock handle
Moving
plate
