9 Kitchen Hoods • Type I and Type II

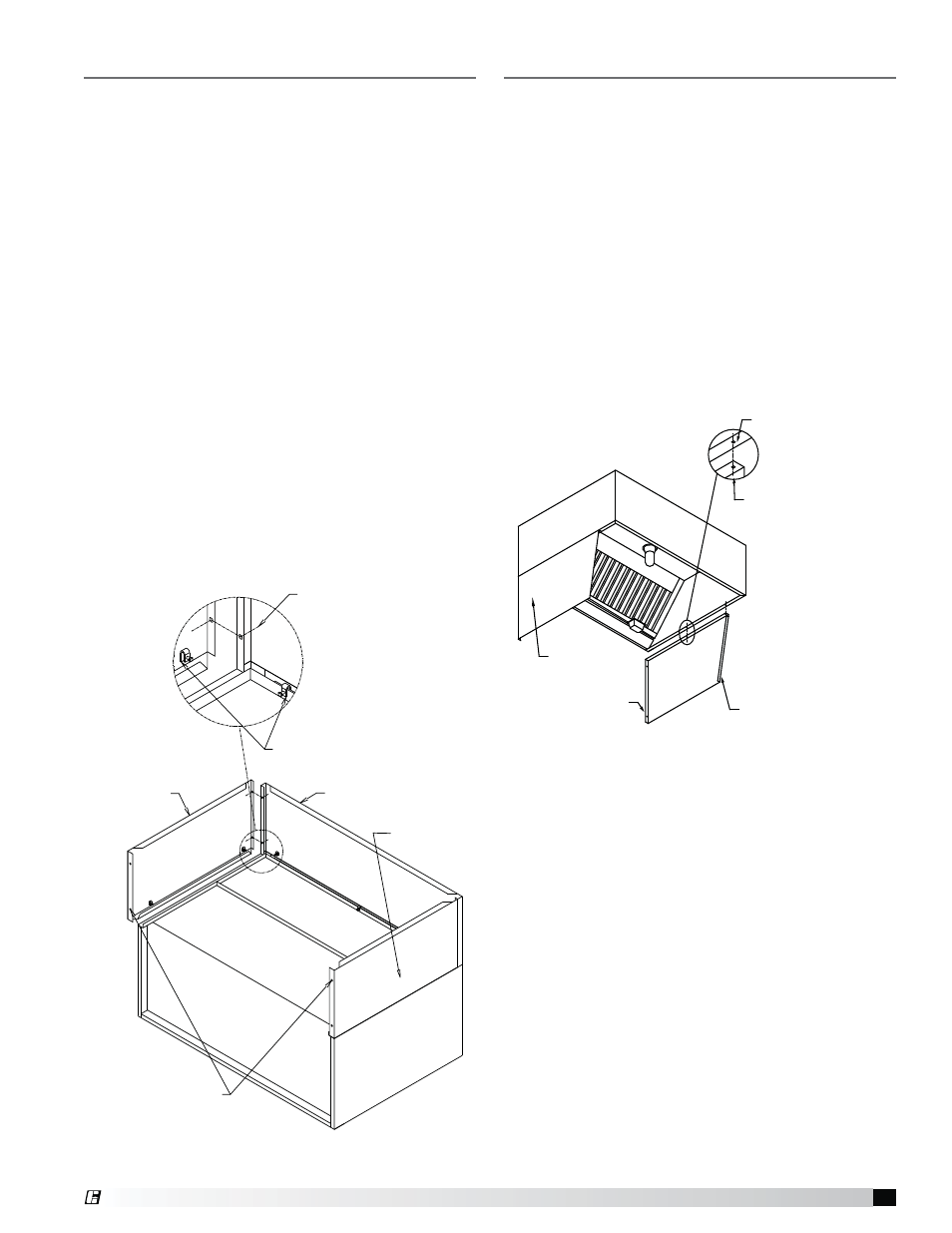

Installing End Skirts
1. After the hood is hung in position, line up the top of
the end skirt with the end panels of the hood.
2. Drill a hole in the hood end panel to line up with
the hole in the end skirt. Attach the end skirt with a
1/4 in. bolt and cap nut to the inside of the hood, or
tack-weld the end skirt to the hood.
3. Position the end skirt against the wall and attach. The
method depends on the wall construction. (Fasteners
provided by others).
4. Caulk the internal joint formed by the end skirt and
the hood end panel with NSF Approved silicone caulk
(GE SCS1009 or its equivalent). The caulk is not
provided.
5. To allow for ease in cleaning, also caulk all the
external seams.
Installing Enclosure Panels
Before installing the enclosure panels, make sure the
hood is hung in position with all the ductwork attached
and electrical connections completed.
1. Position the end enclosure panels on the hood, and
clamp into place with clamps provided or tack-weld
the panels into place.
2. Fasten the end enclosure panels to the wall, method
depends on wall construction. (Fasteners provided
by others).
If the hood is a double island, bolt the end enclosure
panels together. (Fasteners provided by others).
3. Position the front enclosure panel(s) on the hood,
and bolt to the end enclosure panels with the 5/16 in.
bolts provided in the hardware package.
4. Tack-weld or clamp the front enclosure panel(s)
to the hood. If clamps are used, they must be
positioned 4 in. (10.16 cm) from the ends and in the
center of the front enclosure panel.
5. To allow for ease of cleaning, caulk the external
seams with NSF Approved silicone caulk
(GE SCS1009, or its equivalent). The caulk is not
provided.
6. Installation instructions may not be applicable for
concrete ceilings.
HEMMED EDGE
FULL END SKIRT
ATTACH TO WALL
FASTENERS BY OTHERS
HOLE DRILLED
BY INSTALLER
1/4 INCH BOLT AND CAP NUT
SUPPLIED BY MANUFACTURER
BOLT PANELS TOGETHER
WITH 5/16 INCH BOLTS
SUPPLIED BY MANUFACTURER
CLAMP PANELS TO HOOD
STANDING SEAM WITH HARDWARE
SUPPLIED BY MANUFACTURER
FRONT ENCLOSURE PANEL
END ENSLOSURE
PANEL
ATTACH TO WALL
FASTENERS BY OTHERS
END ENSLOSURE
PANEL
HOOD TOP
HOOD BACK
®
