1 . Main Disconnect (non-fusible, lockable)
2 . Motor Starter - Exhaust Air Fan
3 . Motor Starter - Outdoor Air Fan
4 . Motor Contactor - Energy Wheel
5 . 24 VAC Control Transformer
6 . 24 VAC Terminal strip
7 . Fuses for blower motors
8 . Motor Contactor - Indirect Evap Pump
9 . Motor Contactor - Direct Evap Pump
10 . Evap Pump Transformer
(115 VAC Secondary)

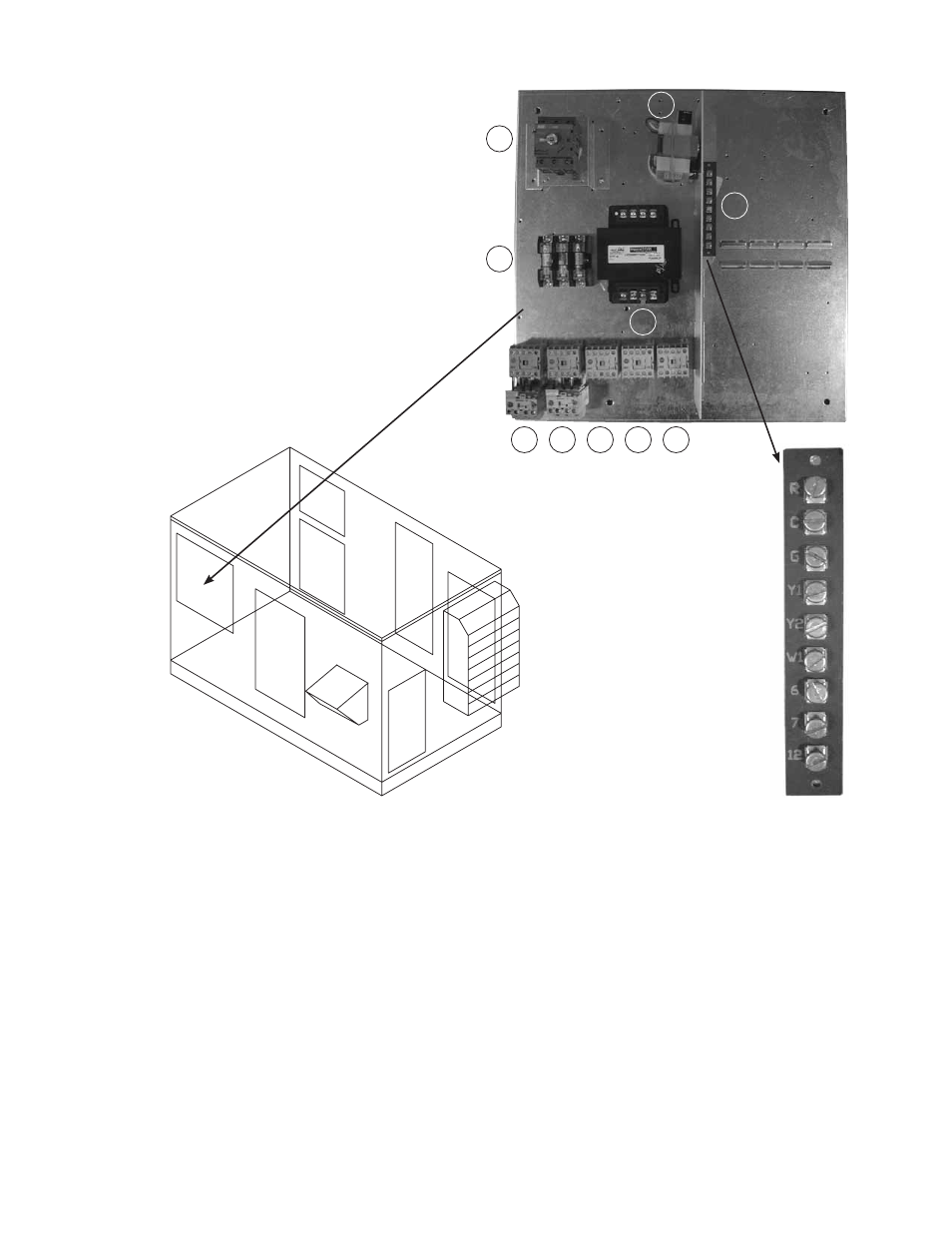

TYPICAL CONTROL CENTER COMPONENTS
1
2 3 4 8 9
7
5
10
Exploded Detail
of Terminal Strip
6
