GN-A11G Wireless LAN Access Point

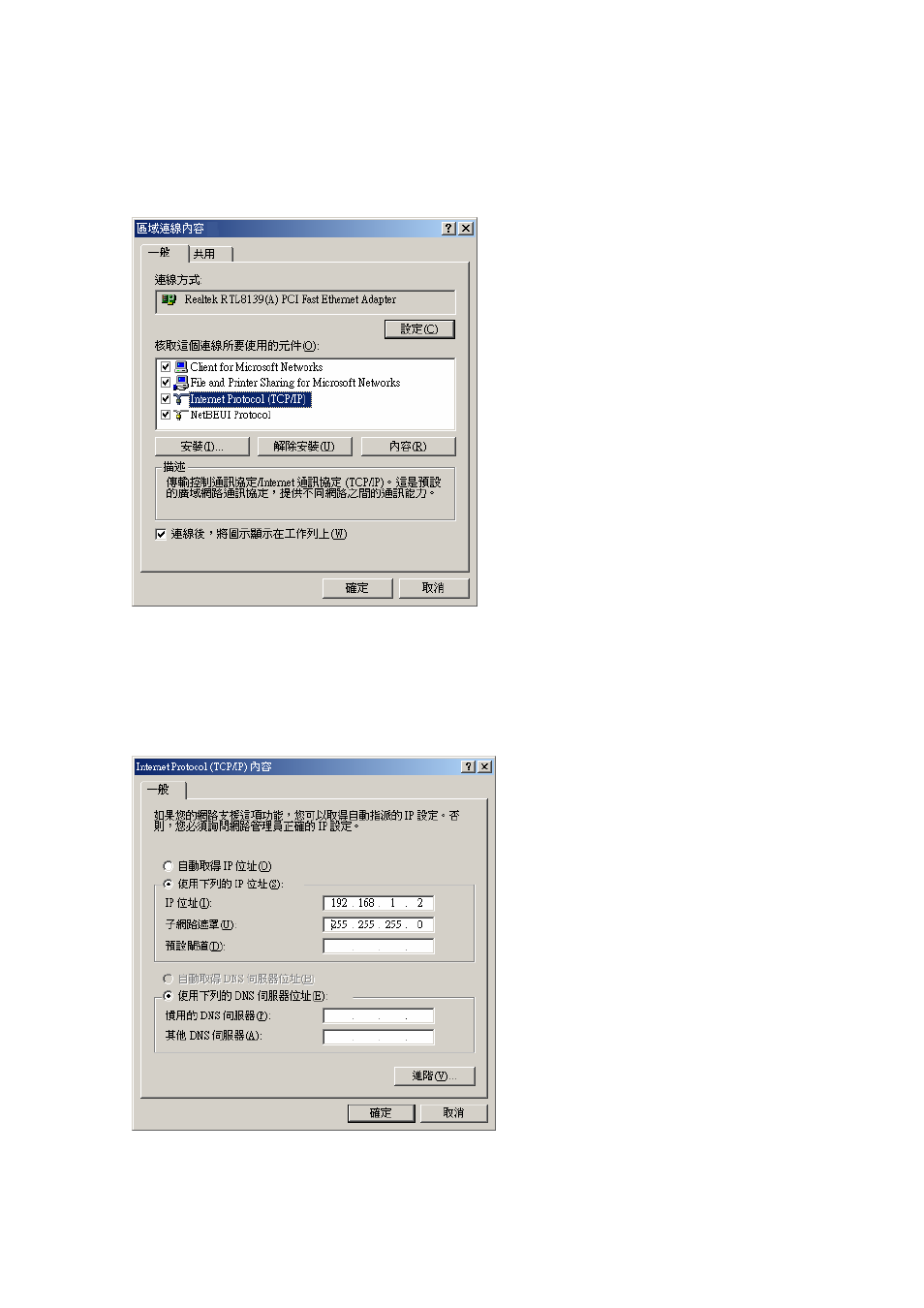

Step 4. The “Local Area Connection Properties” dialog box will appear.
Verfiy that the Internet Protocol (TCP/IP) item is checked. Then
double-click on Internet Protocol (TCP/IP).
Step 5.
Assign the static IP address used by the AP and the same Subnet
Mask to the computer (For example, IP address is192.168.1.2 and
Subnet Mask is 255.255.255.0), click the “OK” button to return to
Local Area Connection Properties. Click the “OK” button again to
complete the PC configuration.
53
