U

SING THE

BT200

IP

P

HONE

G

ETTING

F

AMILIAR WITH THE

LCD

/

LED

BT200 has a numeric backlit LCD measuring 64mm x 24mm which displays icons to illustrate the mode(s)
of the phone. The LCD turns on with an incoming call. If voicemail is configured, there is also a RED LED
message indicator.

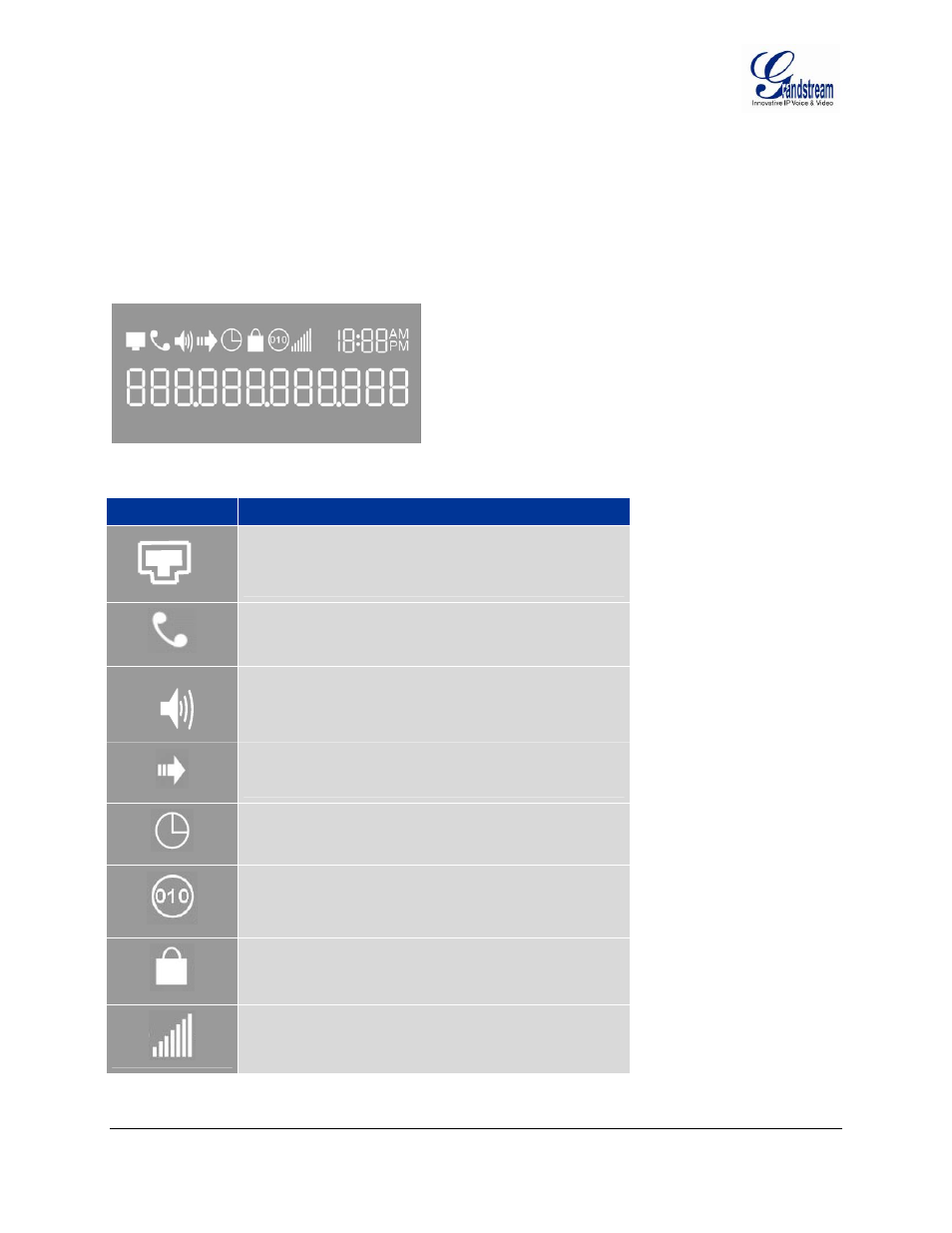

F

IGURE

2:

BT200

LCD

I

LLUSTRATION

T

ABLE

4:

LCD

I

CON

D

EFINITIONS

Icon

LCD Icon Definitions

Connectivity Status / SIP Proxy/Server Icon:

Solid – connected to SIP Server/IP address received
Blinking – physical connection failed
Blank – SIP Proxy/Server not registered

Phone Status Icon:

OFF when the handset is on-hook
ON when the handset is off-hook

Speaker Phone Status Icon:

FLASH when phone rings or a call is pending
OFF when the speakerphone is off
ON when the speakerphone is on

Calls Forwarded Icon:

INDICATES calls are forwarded
Currently not implemented

Alarm Clock Icon:

Currently not implemented

RTP Encryption Icon:

Ensures data security

Currently not implemented

Keypad Lock Icon:

Locks the keypad

Currently not implemented

Handset, Speakerphone and Ring Volume Icon:

Each icon appears next to the volume icon
To adjust volume, use the up/down button

Grandstream Networks, Inc.

BT200 User Manual

Page 9 of 37

Firmware 1.1.1.14

Last Updated: 12/2006
