Galaxy 65 Troubleshooting
73
7.12.3.2
Inserting the Module
1
With the latch in the open position, slide the LRC module into the enclosure until the latch engages
automatically.
2
Cam the module home by manually closing the latches (see
Figure 7–7
).
3
A click should be heard as the latch engages.
Figure 7–6

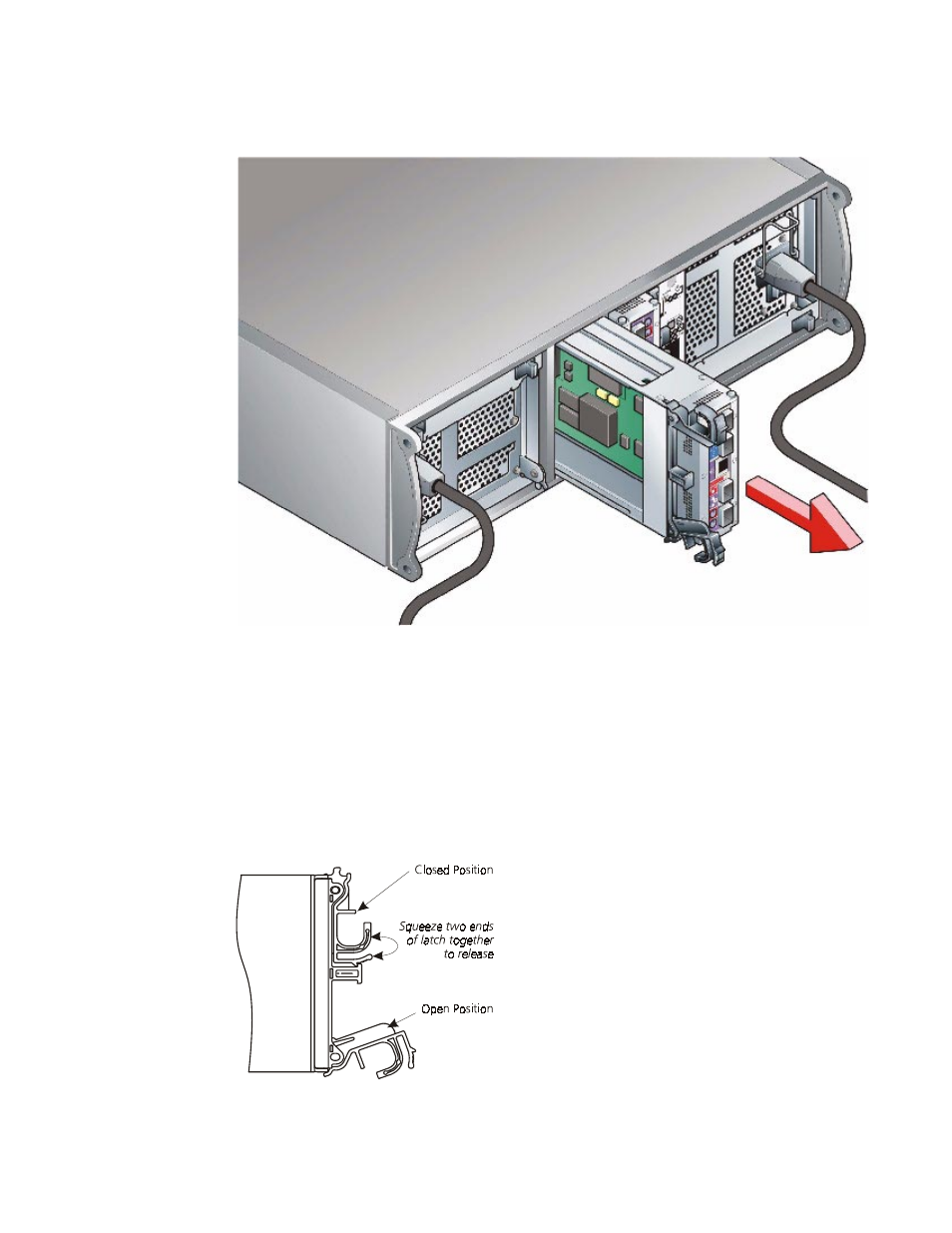

Removing a Storage Manager Module (2)
Figure 7–7
SM Module Latch Operation
