2.2.1 Power Supply/Cooling Module LEDs
The Power Supply/Cooling module incorporates 4 LEDs, located below the On/Off switch and shown in
Table 2–1 .
• Under Normal conditions the LEDs should all be illuminated constant GREEN
• If a problem is detected the color of the relevant LED will change to AMBER.
2.3 Ops Panel LEDs
The Ops Panel LEDs fault and status conditions are defined in Table 2–2 and shown in Figure 2–1 .
Table 2–1 PSU LEDs
PSU Good Green
AC input Fail Amber
Fan Fault Amber
DC Output Fail Amber

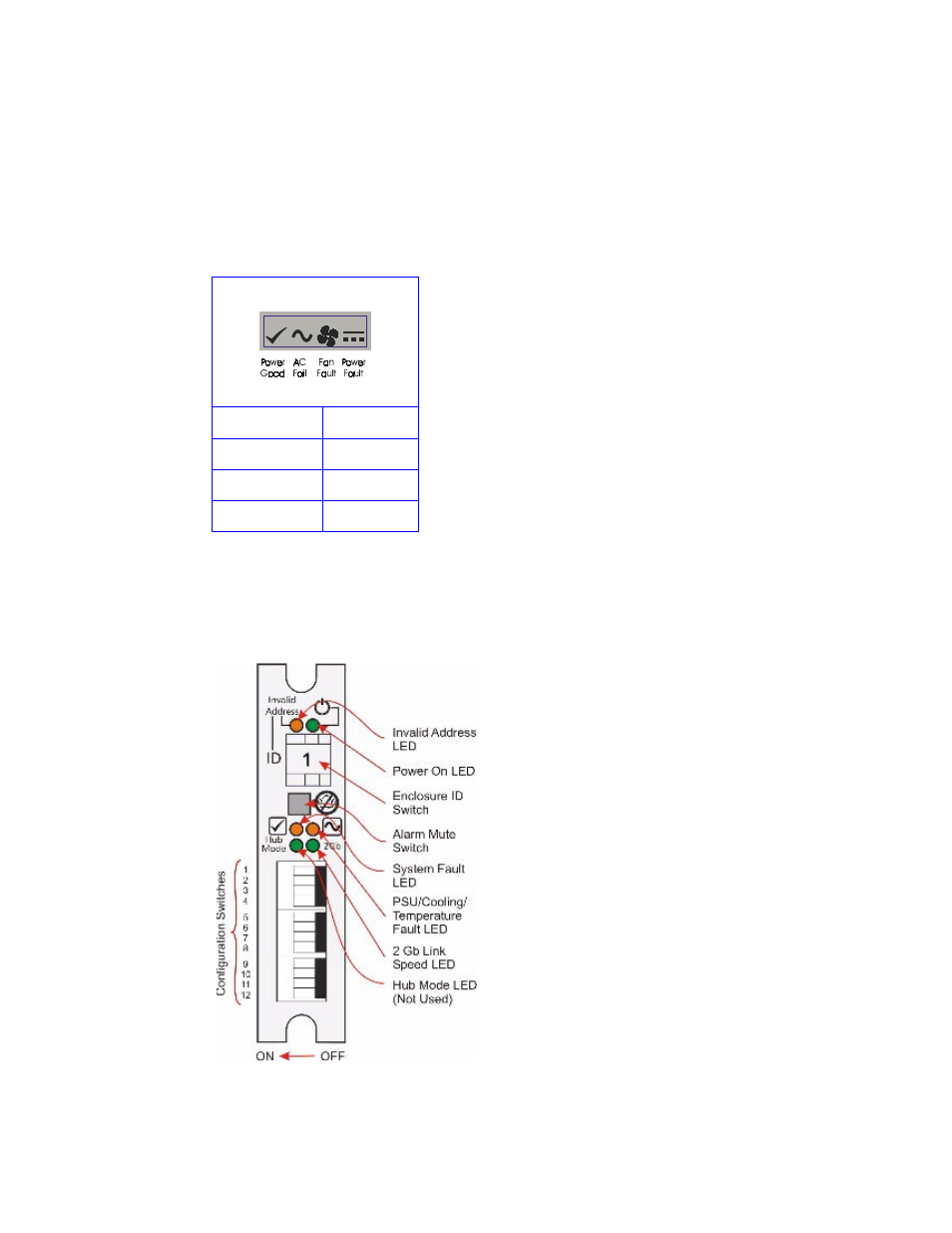

Figure 2–1 Ops Panel LEDs and Switches
