48" and 36" Range Models
12" High Backsplash
22" High
Backsplash
with Shelf
29-1/16"
9-1/2"
3/4"
22"
12"
36" Min.
to Combustibles
28-1/4"
31-1/2"
45-5/8"
0" Clearance
26"
Backguard
36" Min.
to
Combustibles
0" Clearance
12" Min. to Combustibles or
0" Min. to Combustibles
with 12" or 22" Backsplash
4

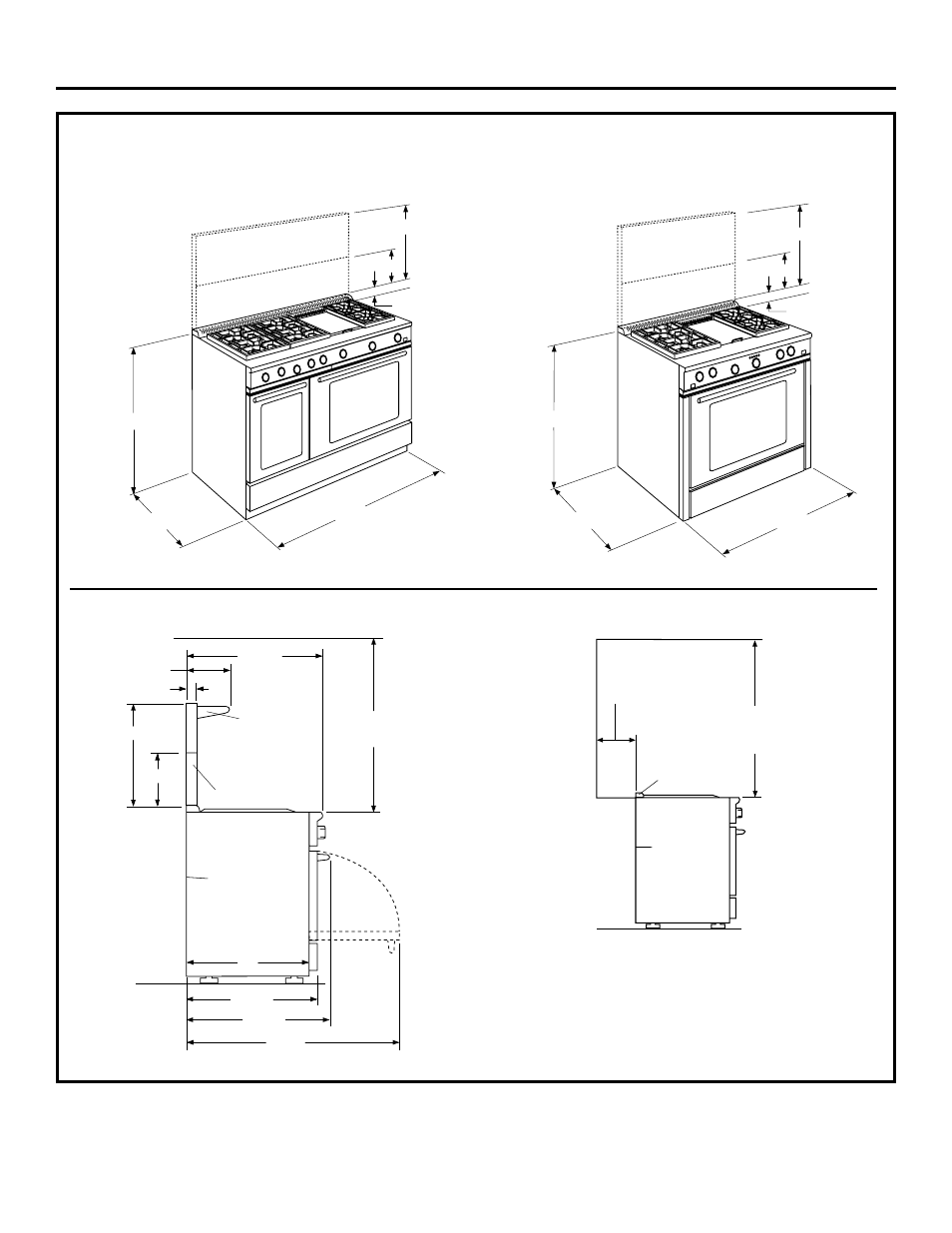

PRODUCT DIMENSIONS AND CLEARANCES
48" Wide Range Models 36" Wide Range Models
22"
12"
1-1/2"
35-1/4"-36-3/4"
28-1/4"
47-7/8"
Optional B
acksplas
h
22"
1-1/2"
35-1/4"-36-3/4"
28-1/4" 35-7/8"
Optional B
acksplas
h
12"
Design Information
NOTE: 12" Min. to Combustibles or
0" Min to Combustibles with any
backsplash accessory or custom
non-combustible back wall.
