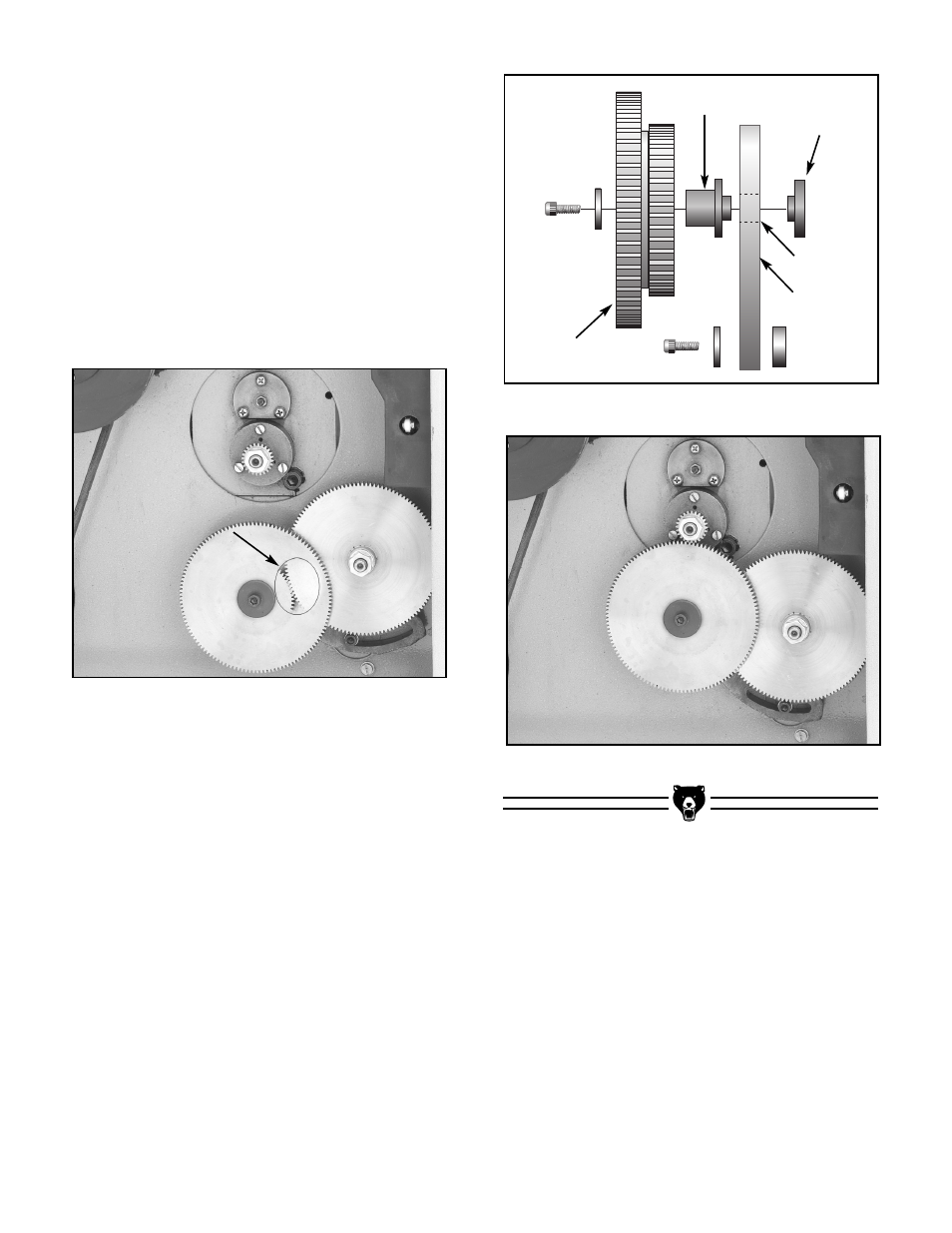

Figure 42. Cut-away shows Gear C and D in mesh.
Figure 43. Gears aligned and in mesh.
Figure 41. Flats on bushing align with slot.
gear support arm and loosely fasten the
assembly to the tee-nut using the cap screw.
Figure 41 shows the proper sequence. Slide
the combination gear along the slot in the
support arm until gear C meshes with gear
D, as in
Figure 42 , and tighten the cap
screw.
8. Rotate the support arm until gears B and A
are in mesh. Tighten the cap screw at the
bottom of the gear support arm.
Figure 43
shows the gears properly aligned and in
mesh.
Tee-Nut
Slot
Gear
Support Arm
Bushing
Combination
Gear
