-30- G4015Z Lathe/Mill

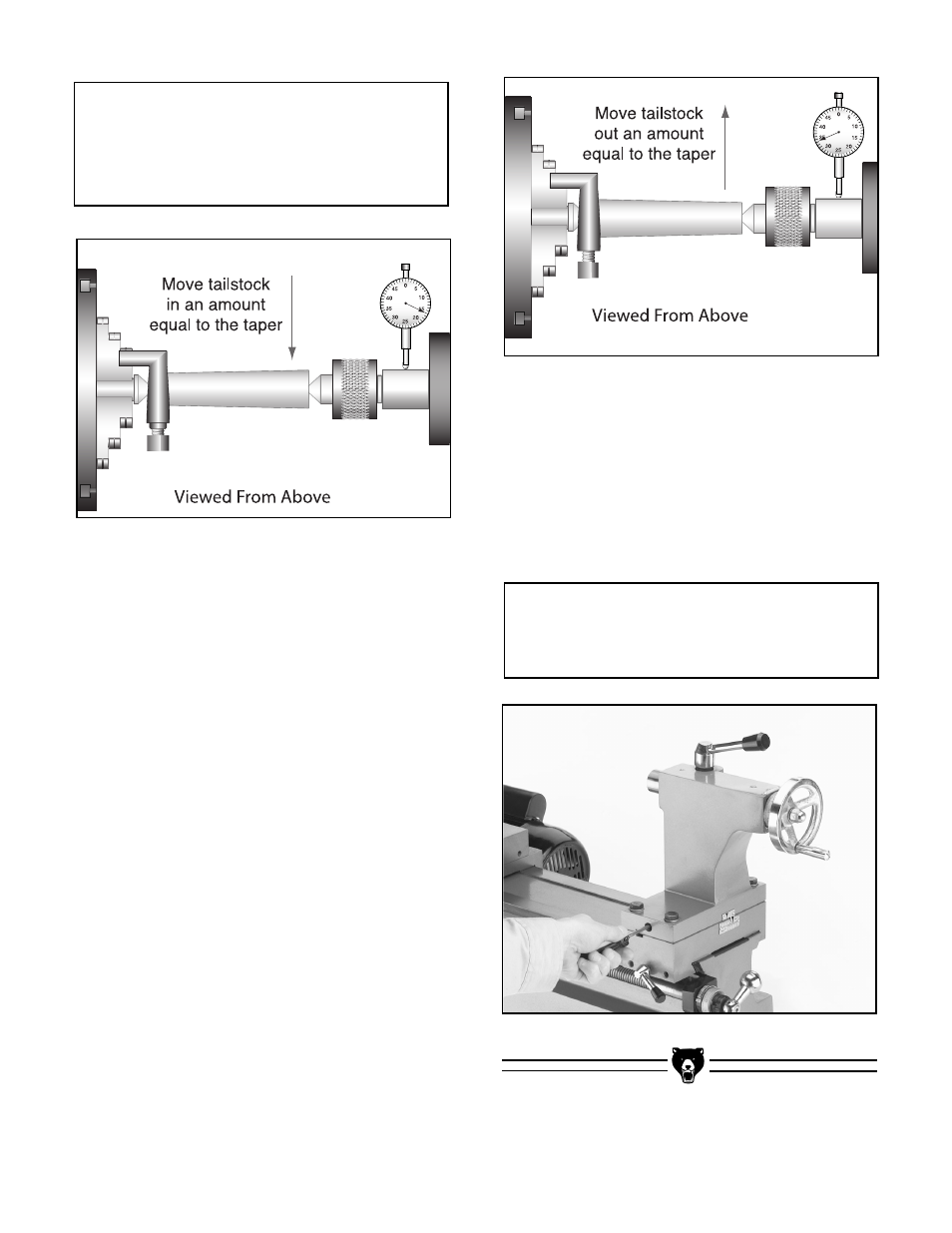

Figure 35. Adjusting for tailstock end taper.
7. Loosen the 4 tailstock mounting bolts.
Adjust the tailstock offset by the amount of
the taper by turning the adjustment
setscrews.
See Figure 36. Turn another
.010'' off of the stock and check for taper.
Repeat as necessary until the desired
amount of accuracy is achieved.
NOTICE
DO NOT forget to lock down the tailstock after
each adjustment.
Figure 36. Tailstock offset adjustment screw.
Figure 34. Adjusting for headstock end taper.
6. Measure the workpiece with a micrometer.
If the stock is fat at the tailstock end, the
tailstock needs to be moved toward you the
amount of the taper.
See Figure 34. If the
stock is thinner at the tailstock end, the tail-
stock needs to be moved away from the
operator by at least the amount of the taper.
See Figure 35.
NOTICE
Before making adjustments to the tailstock,
mount a dial indictor so that the dial plunger is
on the tailstock barrel.
See Figure 34.
