Machine terms – Grizzly G4015Z User Manual
Page 13

G4015Z Lathe/Mill
-11-

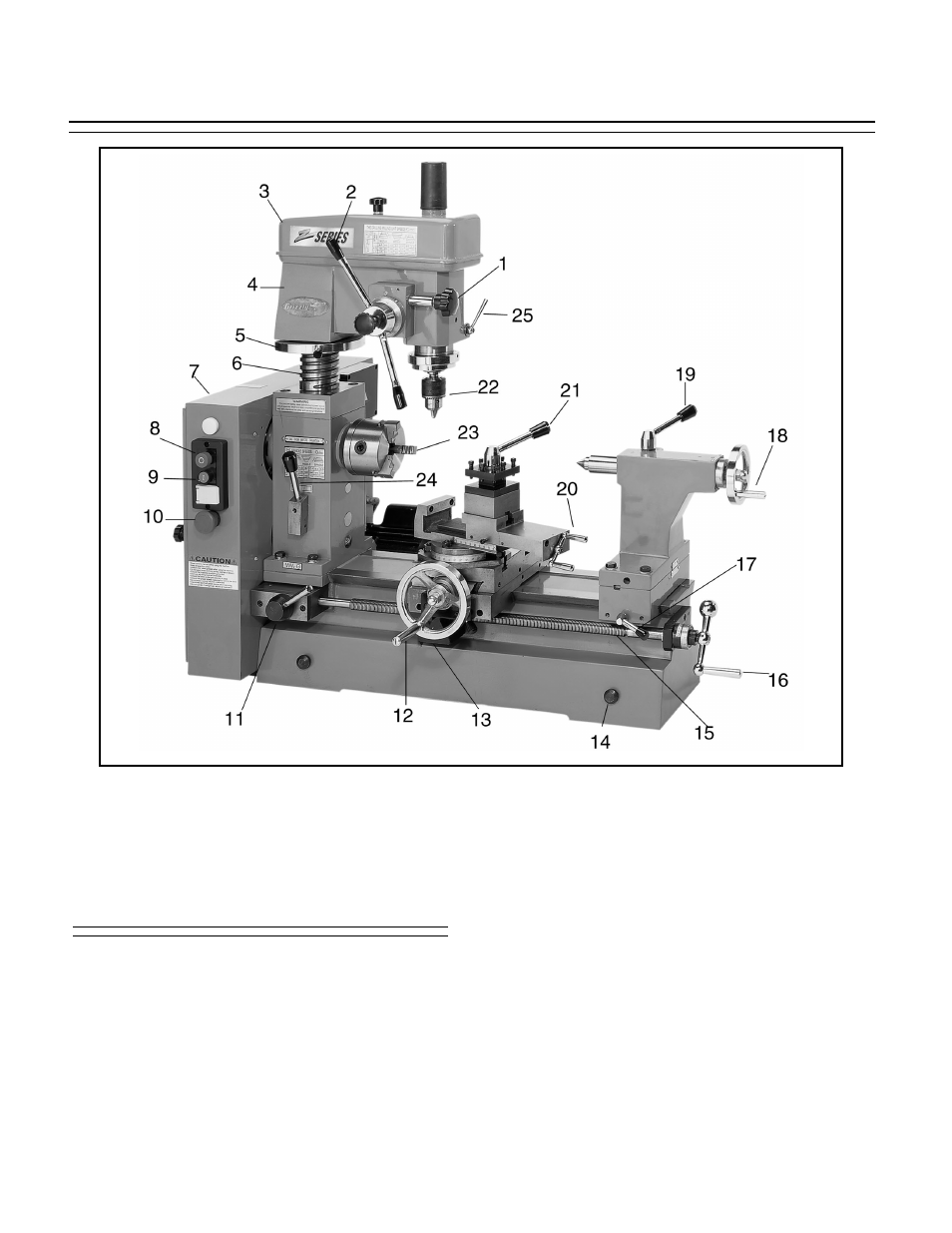

Figure 3.
The following is a list of controls and components on the Model G4015Z. Please take time to
become familiar with each term and its location. These terms will be used throughout the manual and know-
ing them will aid in comprehension. Most of these terms will be shown in italics (
italics
) throughout the man-
ual.
1.
Fine Down Feed
2.
Quill Lever (Coarse Down Feed)
3.
Upper Belt Guard
4.
Head Stock
5.
Head Elevator
6.
Column
7.
Lower Belt Guard
8.
Off Switch
9.
On Switch
10. Reset Button
11. Feed Lever
12. Cross Feed Handle
13. Power Feed/Half Nut Lever
14. Lifting Peg
15. Lead Screw
16. Longitudinal Feed Handle
17. Tailstock Lock Handle
18. Tailstock Handle
19. Tailstock Barrel Lock
20. Compound Handle
21. Tool Post
22. Drill Chuck
23. 3 Jaw Chuck
24. Feed Rate Lever
25. Quill Lock Lever
SECTION 4: IDENTIFICATION
Machine Terms
