Page 30

-28-
G4015Z Lathe/Mill
Apron Gib
- There are 2 setscrews that tension
the saddle gib. Before making adjustments to the
saddle gib, ensure that the front lock lever is
loose by turning it counterclockwise.
See Figure
30.
It is important the setscrews are tightened even-
ly. A slight drag should be detected while turning
the hand crank at the end of the lathe.

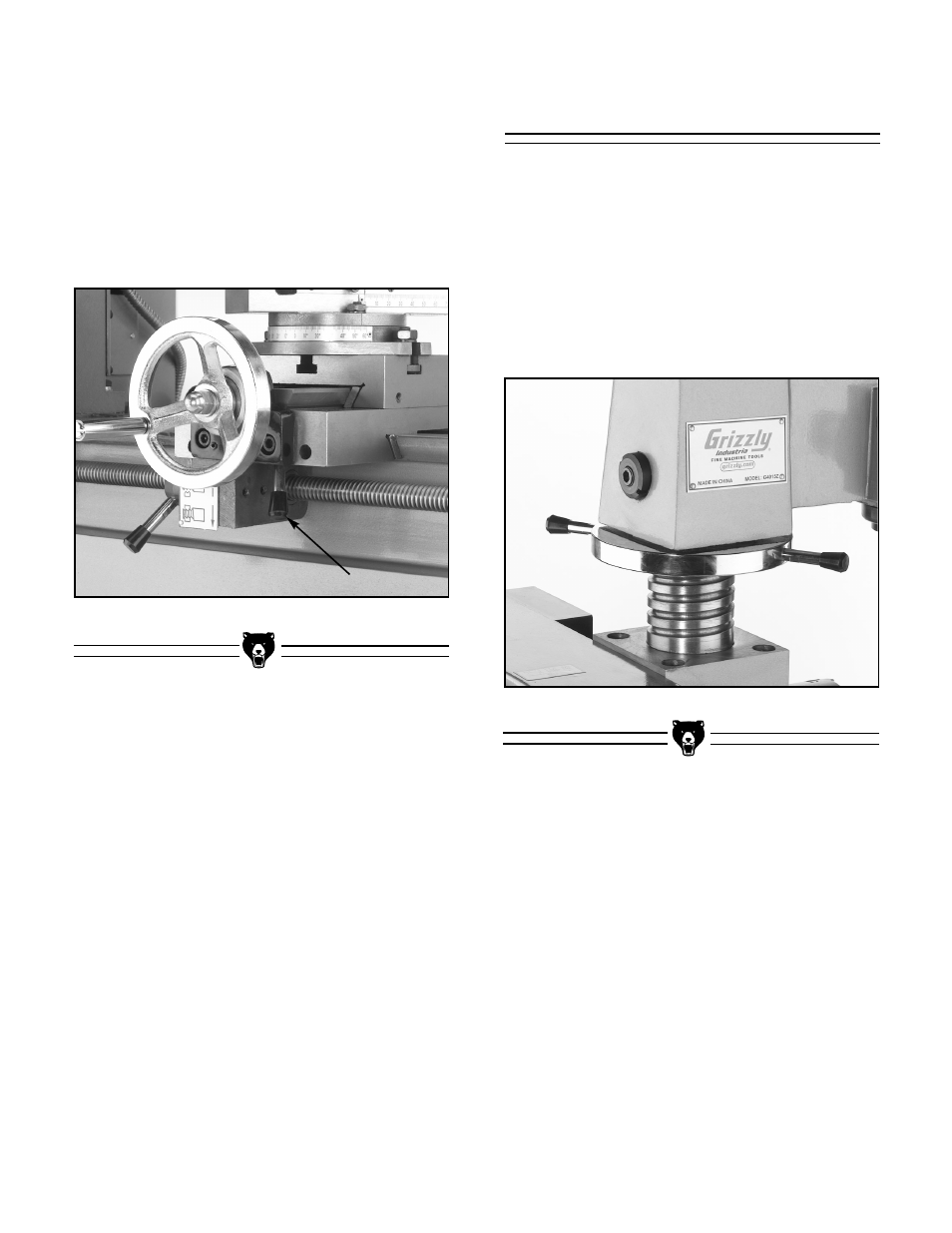

Figure 30.
This bolt locks the apron in place.
Head Stock
The
Head Stock
can be adjusted up or down to
suit height requirements for different workpieces.
Figure 31
shows the locking setscrew and lifting
mechanism. To adjust the height, loosen the
locking setscrew and rotate the lifting levers.
When the
Head Stock
is at the desired height,
lock in place with the lever. The
Head Stock
can
be rotated around the
column
allowing it to be
positioned out of the way during lathe operations.
Figure 31.
Elevating the
Head Stock
.
