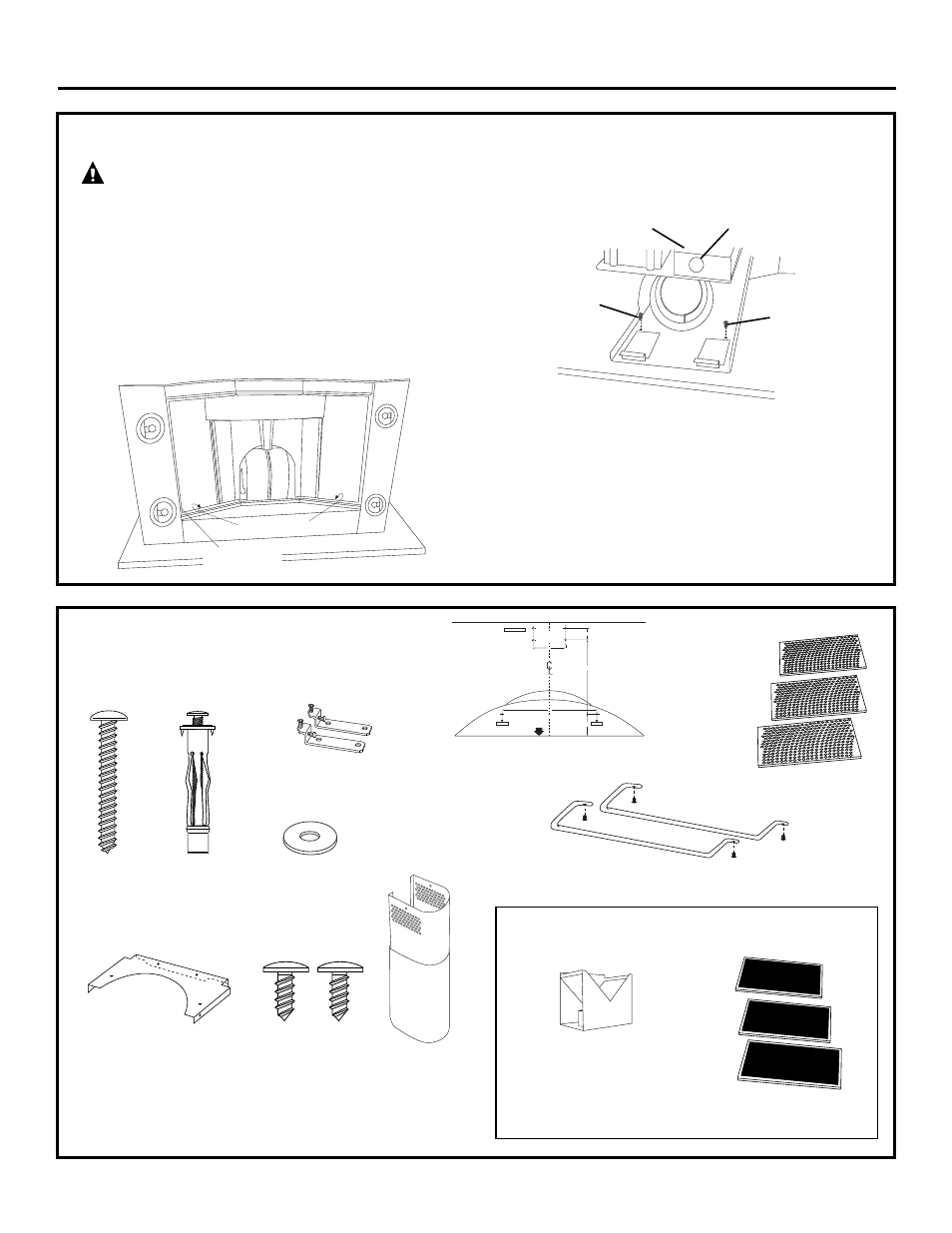

CHECK INSTALLATION HARDWARE
Locate the hardware accessory box packed with
the hood and check contents.
3 charcoal filters
Air deflector with upper
duct connector
• Drill 1/8" Pilot Holes For Mounting Brackets.
Align edge 25-1/2" above Cooking Surface.
17-5/16"
3-15/16"
13-9/16"
2-5/32"
C L
• Drill 1/8" Pilot Holes. • Drill 1/8" Pilot Holes.
5-7/8"
Wall-mount template
10 wood
screws
10 metal wall
fasteners
2 Large
flat washers
2 Mounting brackets
3 Stainless
steel grease
filters
Decorative
duct covers
Duct cover bracket (not required
for recirculating operation)
2 Phillips-head
duct cover
screws
2 Utensil rods with 4 machine screws
Additional Parts for Recirculation Operation
7
Installation Preparation
REMOVE THE PACKAGING
CAUTION:
Wear gloves to protect
against sharp edges.
The vent hood is shipped secured to a shipping
board with 4 screws.
• Remove the duct cover, parts box and styrofoam
packaging.
• Lift the hood out of the box.
• Remove and properly discard the plastic wrapping.
• Remove metal grease filters and side bar packaging.
• To remove the shipping board, locate and remove
2 screws at the top of the assembly and 2 screws
inside the hood behind the filter guides on the left
and right sides. Discard the shipping board.
• Remove junction box cover.
• Remove knockout from junction box.
• Install strain relief onto junction box.
Mounting screw
Shipping board
Shipping board
Mounting screw
Mounting screw
Knockout Junction box
NOTE: Additional tools, materials and hardware are
required to construct your wall framing support.
