ZVB36SH/BH/WH – GE Monogram 36" Telescopic Downdraft Vents
Dimensions and Specifications (in inches)
For answers to your Monogram, ® GE Profile ™ or
GE ® appliance questions, visit our website at
GEAppliances.com or call GE Answer Center ®
service, 800.626.2000. Specification Created 10/03
130656
Listed by
Underwriters
Laboratories
R
682Dia23
Countertop Requirements
Countertops must have a deep flat surface to
accommodate the cooktop and the vent.
Countertops with a rolled edge and backsplash
may not provide the flat surface area required.
Base Cabinet Requirements
The base cabinet must be deep enough to
accommodate the minimum clearance to the
front edge of the countertop, the cooktop
burner box and the vent.
Downdraft Vent and Cooktop Cutout
The installation of these downdraft vents
with any Monogram cooktop requires careful
consideration. For accurate planning,

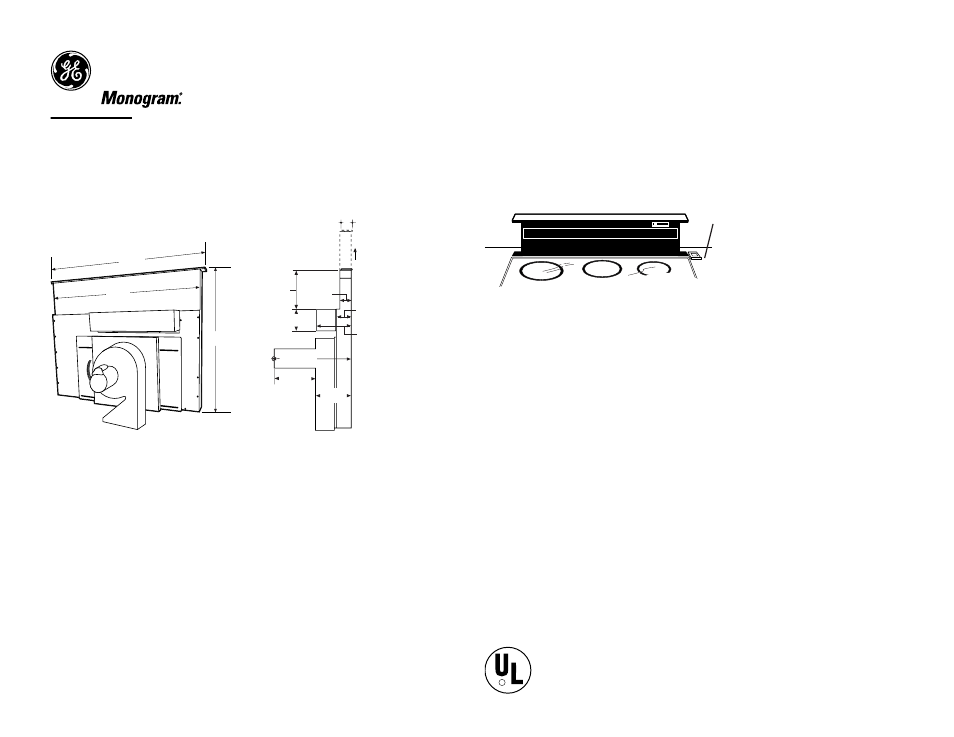

review the individual dimension drawings
for the combined vent and Monogram
cooktop installation.
Before you begin you must:
1. Review countertop dimension illustrations
to be sure you will have enough flat
countertop surface depth.
2. Check to be sure that the total countertop
depth required (including minimum cutout
to front edge depth) allows enough space
for a backsplash.
3. Review the cabinet illustration. Check to
be sure that the interior cabinet depth will
house the cooktop burner box, the vent and
the cutout clearance from the front.
4. When countertop and cabinet depth present
a problem, review Creative Solutions.
5. Carefully review the installation instructions
packed with product or available online at
www.monogram.com.
With careful planning you can achieve a
custom look with minimal adjustments.
All 36” models are equipped with a separate raise/lower switch. The switch must be installed
in a separate location outside of the vent and cooktop cutout.
682Dia21
A
B
27"
682Dia24
2-1/4"
3-1/8"
10-1/2"
3-3/8"
3-3/4"
7-1/2"
6-1/4"
2"
8-1/2"
Lift
7-1/8"
36
34
Separate Raise/Lower Switch
