308-236 11

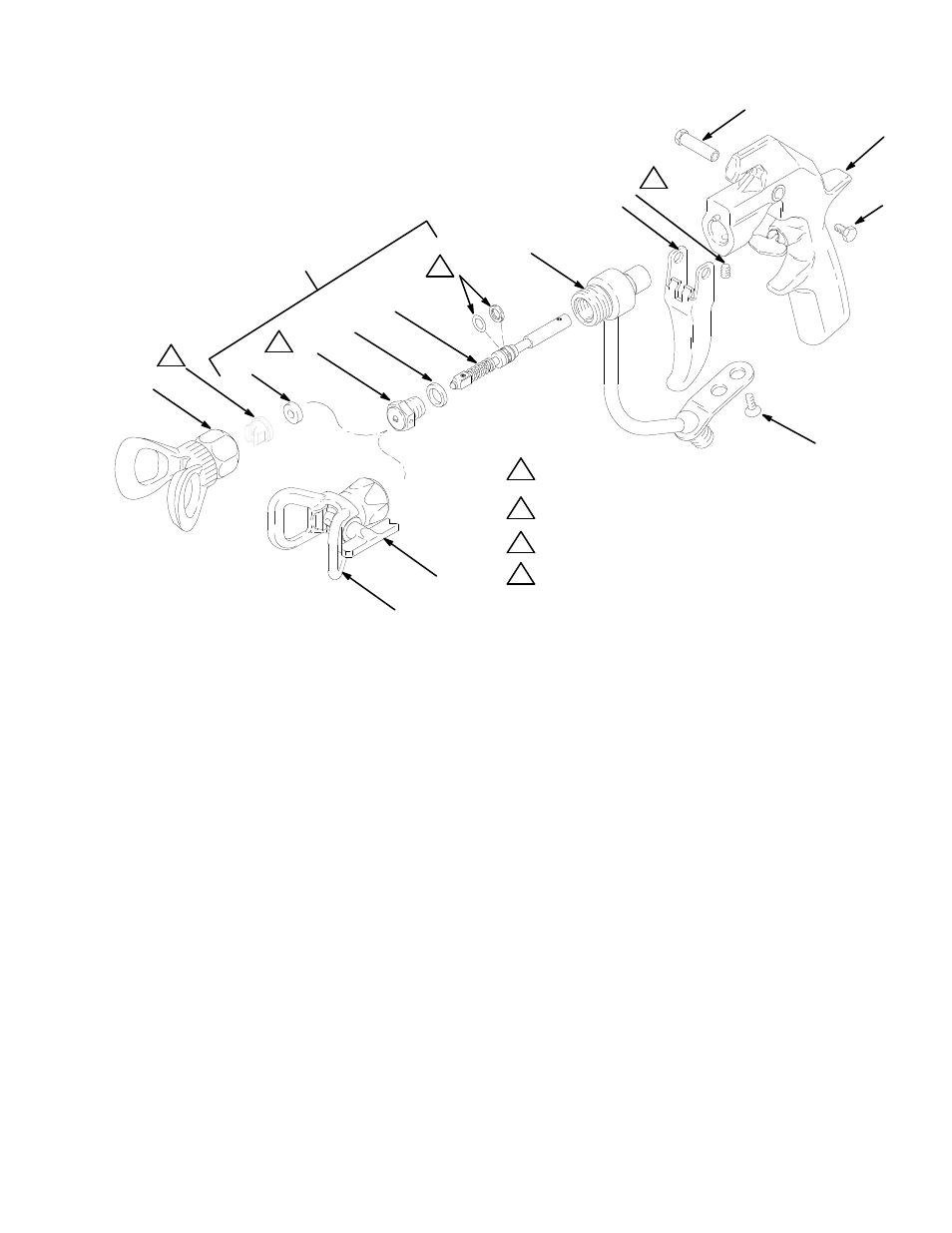

Parts
1
2d*
2a*
2b*
2c*
8
9
10
11
12
13
01477A
6
16
17
1
2
Lubricate, then
torque to 20-25 ft-lb
(27-34 N.m)
3
4
Torque to 30-40 in-lb
(3.4–4.5 N.m)
Purchase separately
Lubricate
4
3
2
1
2
Model 235–460, Series C; Model 237–695, Series B
Model 235–460 Includes the Standard (non-reversing)
DripLess
t
Tip Guard and 2 finger trigger.
Includes items 1 to 15.
Model 237–695 is 2 finger trigger, without Tip Guard
and spray tip.
Includes items 2 to 15.
Ref
No.
Part No. Description Qty.
1 220–251 STANDARD TIP GUARD 1
2 235–474 NEEDLE KIT
Includes items 2a to 2d
1
2a* Z DIFFUSER/SEAT 1
2b* Z GASKET, copper 1
2c*
Z
NEEDLE 1
2d* 166–969 TIP GASKET 1
6 235–482 FLUID HOUSING, two finger 1
8 187–985 TRIGGER, two finger 1
9 102–207 SETSCREW, 1/4–20 1
10 187–965 PIVOT PIN 1
11 235–471 GUN HANDLE 1
12 203–953 SCREW, hex washer hd, 10–24 1
13 107–091 SCREW, 1/4–20 2
14
Y
187–987 WARNING TAG not shown 1
15
Y
222–385 WARNING CARD not shown 1
Model 235–461, Series B
Includes the Standard (non-reversing) DripLess
t
Tip Guard and 4 finger trigger.
Includes items 1 to 15.
Ref
No.
Part No. Description Qty.
1 220–251 STANDARD TIP GUARD 1
2 235–474 NEEDLE KIT
Includes items 2a to 2d
1
2a* Z DIFFUSER/SEAT 1
2b*
Z
GASKET, copper 1
2c* Z NEEDLE 1
2d* 166–969 TIP GASKET 1
6 235–476 FLUID HOUSING, four finger 1
8 188–127 TRIGGER, four finger 1
9 102–207 SETSCREW, 1/4–20 1
10 187–965 PIVOT PIN 1
11 235–471 GUN HANDLE 1
12 203–953 SCREW, hex washer hd, 10–24 1
13 107–091 SCREW, 1/4–20 2
14 Y 187–987 WARNING TAG not shown 1
15 Y 222–385 WARNING CARD not shown 1
