S14 & PS14P (PoE) Convenient Switches
Installation and User Guide
46
www GarrettCom com
.
.
3.4 DIN-Rail mounting option
The Magnum PS14P, S14HR & S14PR
Convenient Switches, designed for use in “Factory
Floor” Industrial Ethernet environments, are also
available for DIN-Rail mounting in an enclosure
having DIN Rails.
The metal DIN-Rail mounting hardware is
optional and needs to be ordered as a separate item,
e.g. Model # DIN-RAIL-MC2. It comes with four
screws to attach the bracket to the MC unit.

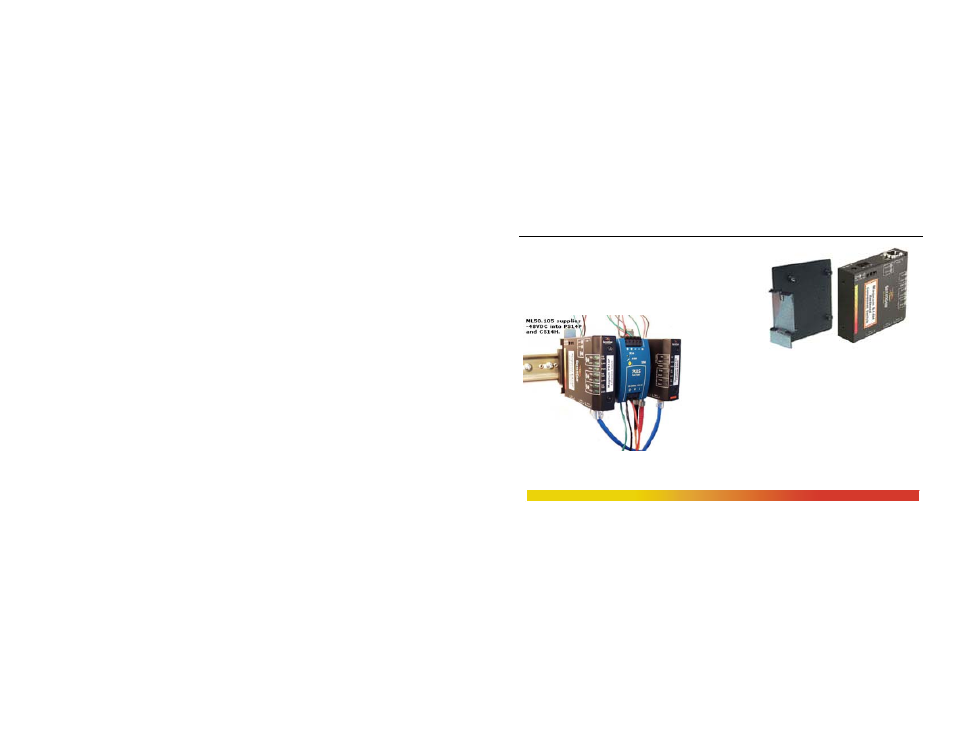

A Magnum PS14P(PoE) with -48VDC supply
(left) and S14H (right) is shown alongside the
DIN-Rail-MC2 bracket
The Magnum S14 Models with “HR” have 24VDC
power, and have the DIN-Rail-MC2 bracket included and assembled with the MC unit at
the factory.
