9

Installation

30" Built-I n Convection Oven s

These Monogram built-in ovens require a separate,
properly grounded 3-wire 120/208 or 120/240 volt, 60
Hz power supply, protected by a time delay fuse or
circuit breaker. Ovens are supplied with a flexible
power cable, which must be attached to a junction
box. The cable length is 53" for both single and
double conventional ovens.

Double ovens are rated 6.3 KW at 240 volt, and 5.1 KW
at 208 volt.
Single ovens are rated 3.3 KW at 240 volt, and 2.8 KW
at 208 volt.

• Junction box

• Electrical cable—3-conductor or 4-conductor wire—as required

by local codes

• U.L. listed conduit connector

• Wire cutters and wire stripper

Note:

Do not use an extension

cord with these appliances.
Do not shorten the flexible power
cable.

CAUTION

WARNING

Electrical Shock Hazard
• The electrical power to the oven

branch circuit must be shut off while
line connections are being made.

• Use copper wiring only.
• Electrical ground is required on this

appliance. The free end of the green wire (the
ground wire) must be connected to a suitable
ground.

This wire must remain grounded to the oven.
• If cold water pipe is interrupted by plastic, non-

metallic gaskets, union connections or other
insulating materials, DO NOT use for grounding.

• DO NOT ground to a gas pipe.
• DO NOT have a fuse in the NEUTRAL or

GROUNDING circuit. A fuse in the NEUTRAL or
GROUNDING circuit could result in an electrical
shock.

• Check with a qualified electrician if you are in

doubt as to whether the appliance is properly
grounded.

Failure to follow these instructions could result in
serious injury or death.

The conduit is located in the center at the top rear of
the oven.

For double oven:
• Locate and install the junction box within reach of

the power cable.
– Through the left or right of cabinet wall into

adjacent cabinet.

– or, below the cutout floor.
– or, above the cutout, into the top cabinet.

For single oven:
• Locate and install the junction box within reach of

the power cable.
– Below the cutout floor.
– Or, through the left or right of cabinet wall into

adjacent cabinet.

– or, above the cutout, into the top cabinet.

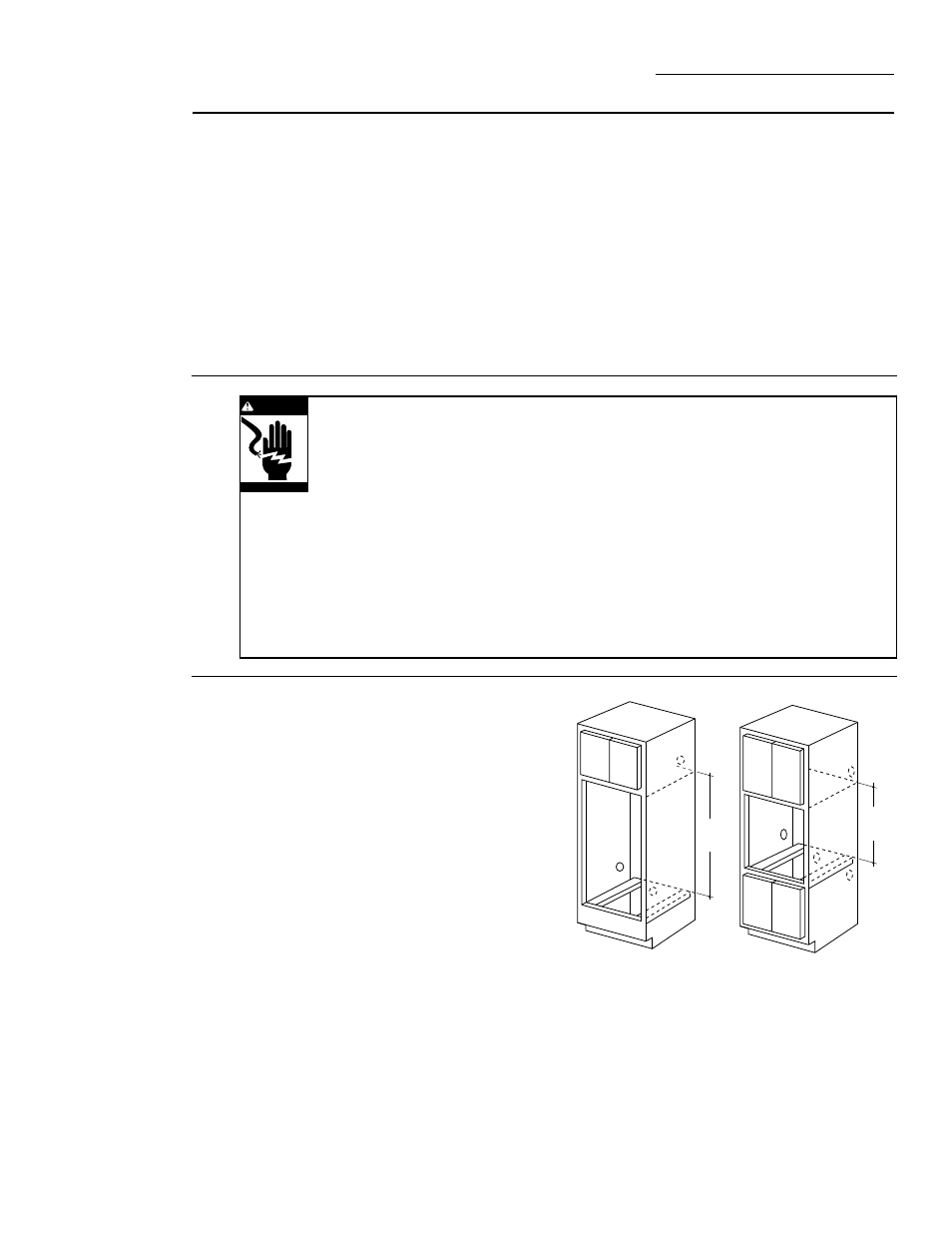

Double Oven:

Locate Junction Box

in one of the locations

Single Oven:

Locate Junction Box

in one of the locations

23"

Min.

47-5/8"

Min.

Electrical
supply

Step 2
Install
junction
box
