Cabinetry

30" Built-I n Convection Oven s

5

Ovens are designed for installation in a cabinet 30" min. wide.

• Cut 2" x 4" runners of appropriate length or solid shelf to

support oven.

• Attach runners or solid shelf in opening as shown.

• Runners must be level, rigidly mounted and capable of

supporting 300 pounds.

Tools and
materials
required

Framed cabinet
double oven

• Installing 12" from floor will place base of upper

oven at countertop level.
– May be more than 12" from floor, depending

upon user preference.

• These Monogram ovens require 3/4" overlap to

both sides. Allow 1" min. for top overlap and
clearance to upper doors.

• Oven overlaps will conceal raw edges on the top and

both sides of the cutout.

Front Framed
Partial Overlay Door

Front Framed Full
Overlay Door

• 2" x 4" lumber for runners

• Saw

• Level

• Phillips screwdriver, wood screws and adhesive or other

hardware for installing runners or shelf to support oven.

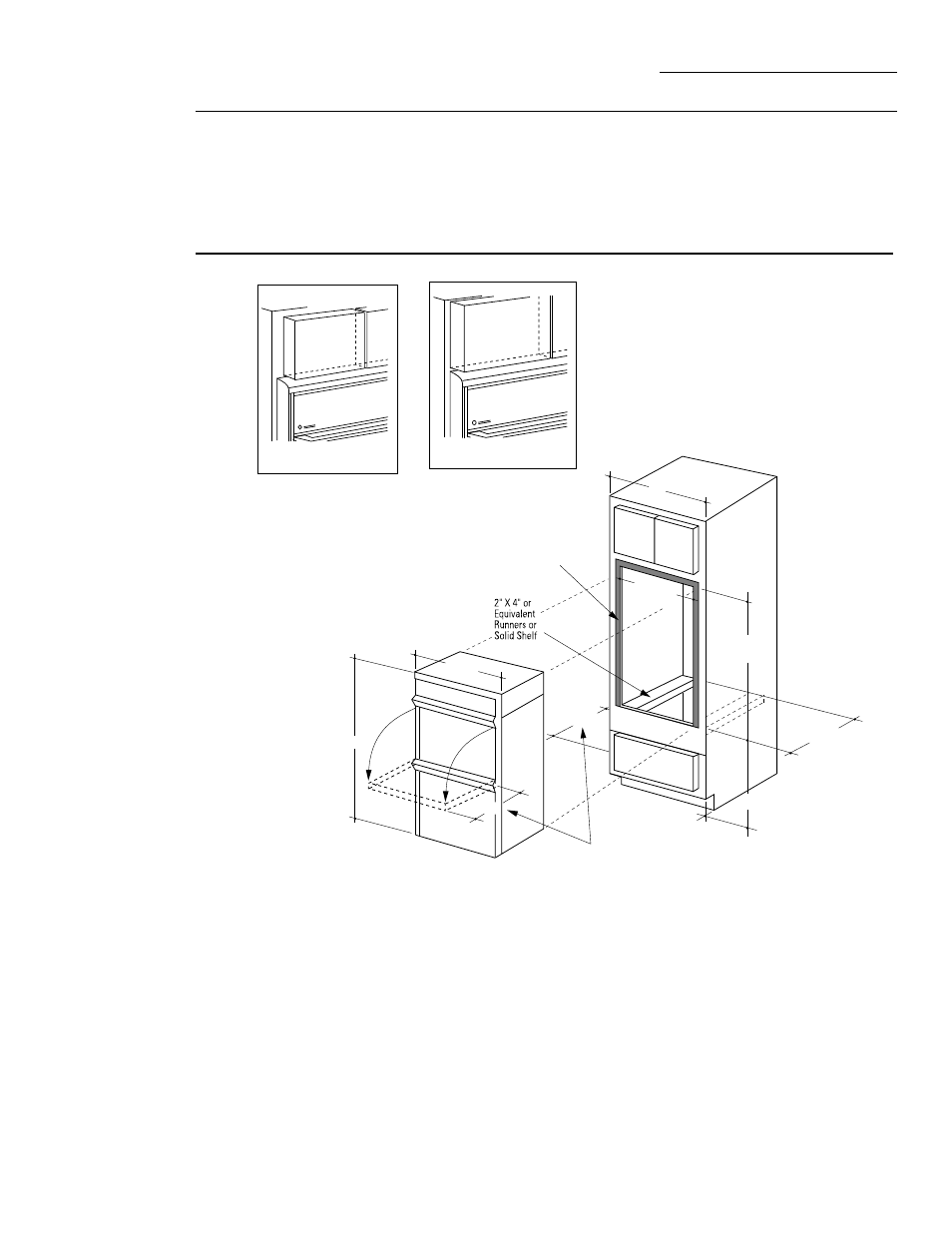

Use the information in this dimension drawing for
typical framed cabinets. The front face of the oven
will be flush with cabinetry doors or drawers.

Order a double oven cabinet.
Rough opening for double oven must be:
• Depth—23-1/2" min. from inside back to front of

cabinet frame.

• Width—28" min., 28-3/8" max.
• Height—47-5/8" min., 47-3/4" max.

48"

17-3/4"

29-1/4"

17-3/4"

Allow Minimum of 17-3/4" for Clearance
to Adjacent Corners, Drawers, or Walls, etc.

23-1/2" Min.
Inside Depth

28" Min.

28-3/8" Max.

30"

47-5/8" Min.

47-3/4 Max.

Allow 3/4" Overlap
on Sides. Allow
1" Min. for Top
Overlap and Clearance.
Allow 1/4" at Bottom
for Clearance.

12" Recommended
