11

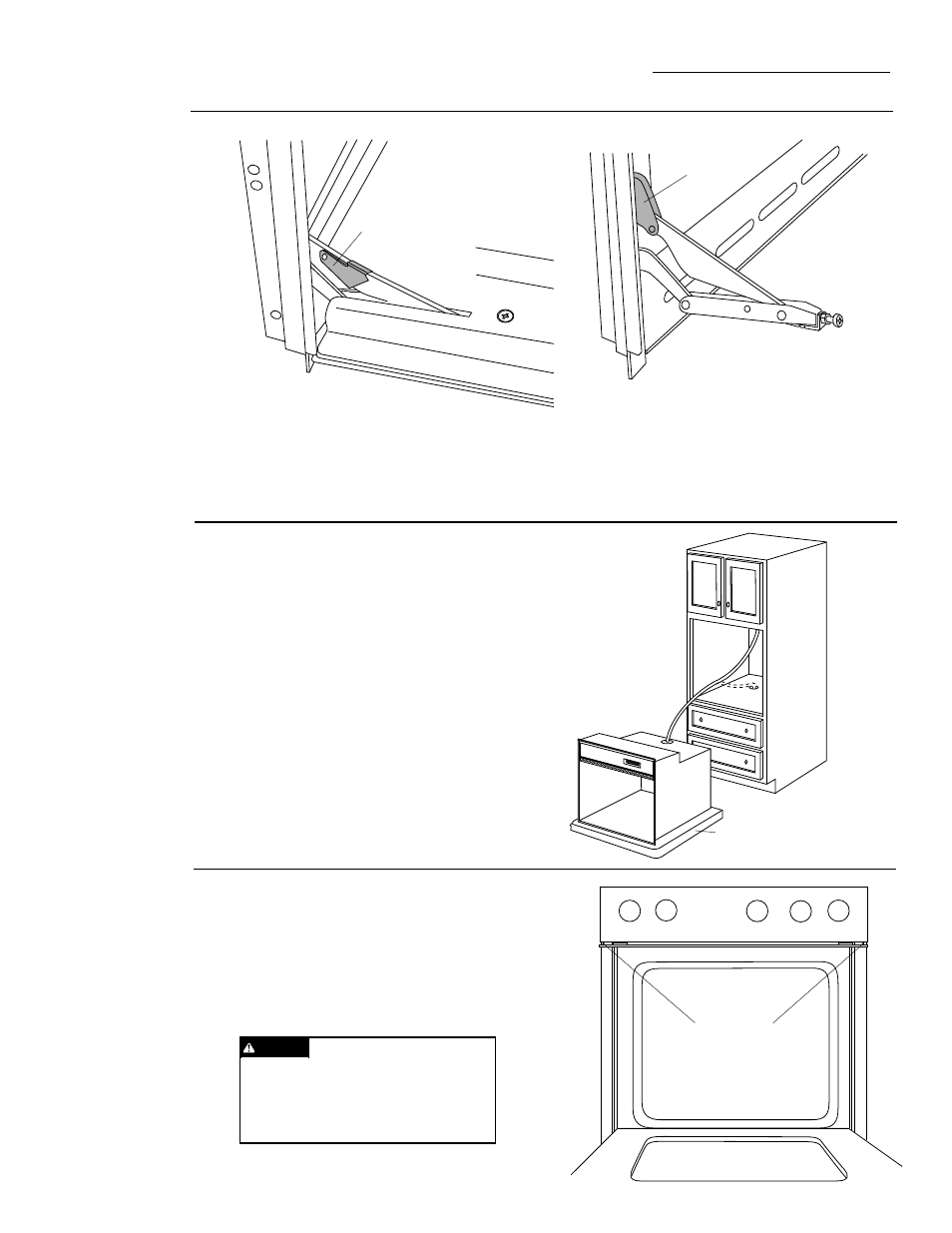

Installation

30" Built-In Convection Oven s

Locked
Hinge Latch

Hinge Latch
Normal Position

Secure Oven To

Cabinet With

Screws Provided

CAUTION

WARNING

Securely fasten oven to cabinet using the
screws provided.

Failure to do so could

cause the oven to move or tip during use
and result in personal injur y.

Styrofoam
Shipping Base

Step 3
Remove
Oven
Door(s)

Step 4
Route
cable
through
cutout

Step 5
Secure
oven
to cabinet

Caution:

Do not lift the oven or oven door with handle.

• Open the door fully.
• Push hinge latches up to lock hinges in open

position.

• Grasp each side of door and pull the door straight

out and away from the oven.

• Lay the oven door on packaging to prevent

scratching.

Caution:

Oven(s) are very heavy. 2 people are required to lift oven(s)

into the opening. Ovens have side handles. Grasp side handle with one
hand and into oven opening with other hand. Lift the oven to the
cabinet opening, very carefully.

With oven in front of cabinet opening:
• Insert power cable into cabinet opening.
• Lift the oven into opening while continuing to feed

the cable in the direction of the installed junction
box. Be sure the cable does not get pinched between
the back of the oven and cabinet wall.

• Slide oven into cabinet opening.
• Drill 3/32" pilot holes into cabinet frame through

mounting holes in oven front frame.

• Secure oven to cabinet with screws furnished.

– Single ovens, use 2 screws, one on each side.
– Double ovens, use 4 screws, 2 on each side.
