Cabinetry

30" Built-I n Convection Oven s

7

Frameless
cabinets

Frameless

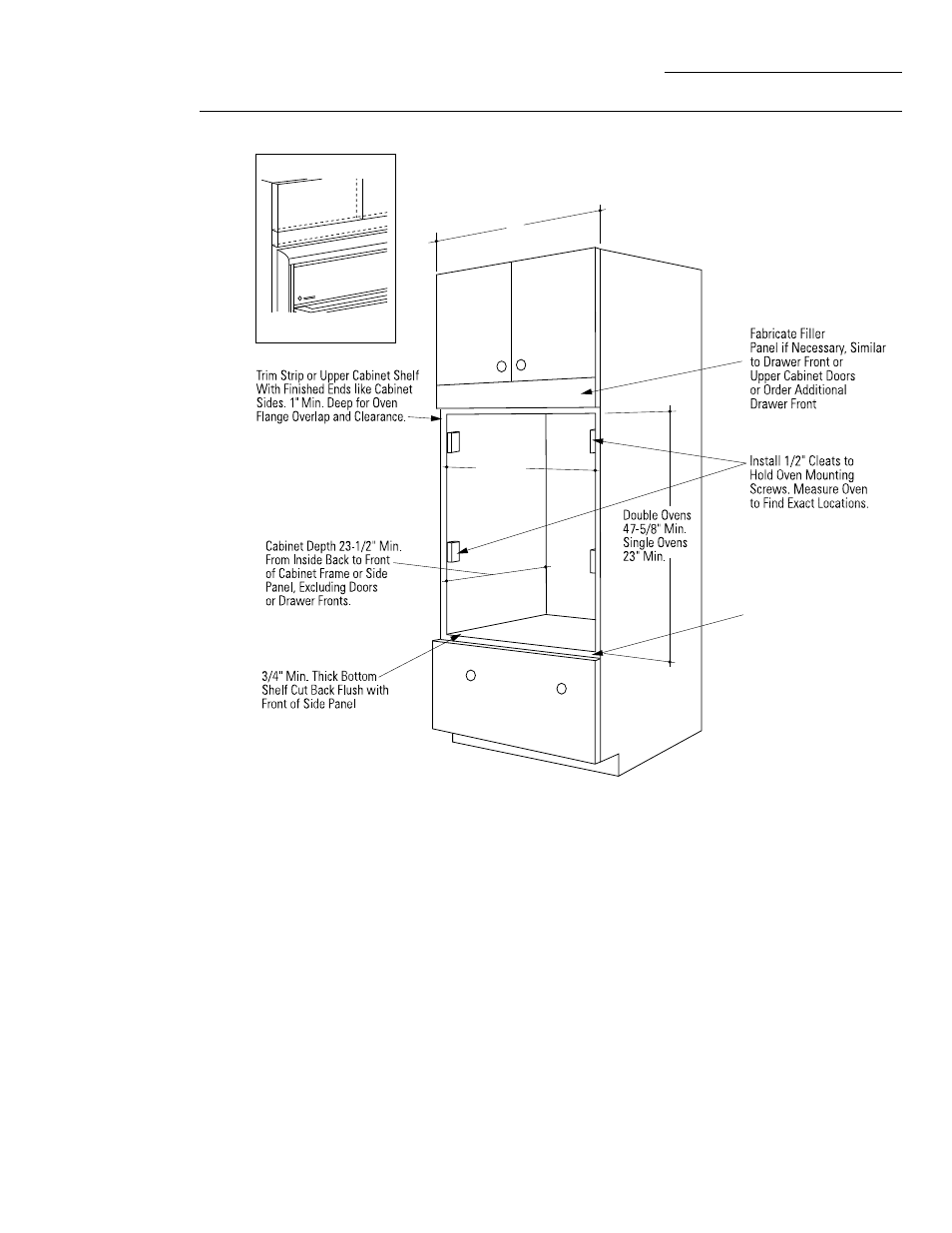

Use the information in this dimension drawing for
typical frameless cabinets. The front face of the oven
will be flush with cabinetry doors or drawers.

Whenever possible, order 30" frameless cabinet with
the cutout sized to fit the oven. If you are using stock
cabinets, additional finished filler pieces may be
required to cover openings.
Rough opening for single and double ovens:
• Depth—23-1/2" min. from inside back to front of

cabinet or side panel, excluding doors or drawer
fronts.

• Width—28" min.

– Frameless cabinet cutout width may be up to

28-3/4". Add 1/2" cleats to the sides, flush with
the front edge of the side panels to accept
mounting screws.

• Height—for double oven 47-5/8" min.
• Height—for single oven 23" min.

Both single and double ovens require 3/4" overlap
around edges of opening on both sides. Allow 1/2"
for top overlap.
• Allow 1/8" clearance between top of oven and

cabinet door or panel and 1/8" between bottom of
oven and cabinet drawer.

• Installation of double oven requires a total height of

48-1/4" including clearances at top and bottom.

• Installation of single oven requires a total height

of 23-1/2" including clearances.

30"

See page 9.

28" Min.

28-3/8" Max.

Finish Trim Strip 1/4" Min.
Deep for Clearance.

To Obtain Installation Height
from Floor it may be Necessary
to Install a Lower Filler Panel.
