Cabinetry

30" Built-I n Convection Oven s

6

Framed cabinet
single oven

Front Framed
Partial Overlay Door

Front Framed
Full Overlay Door

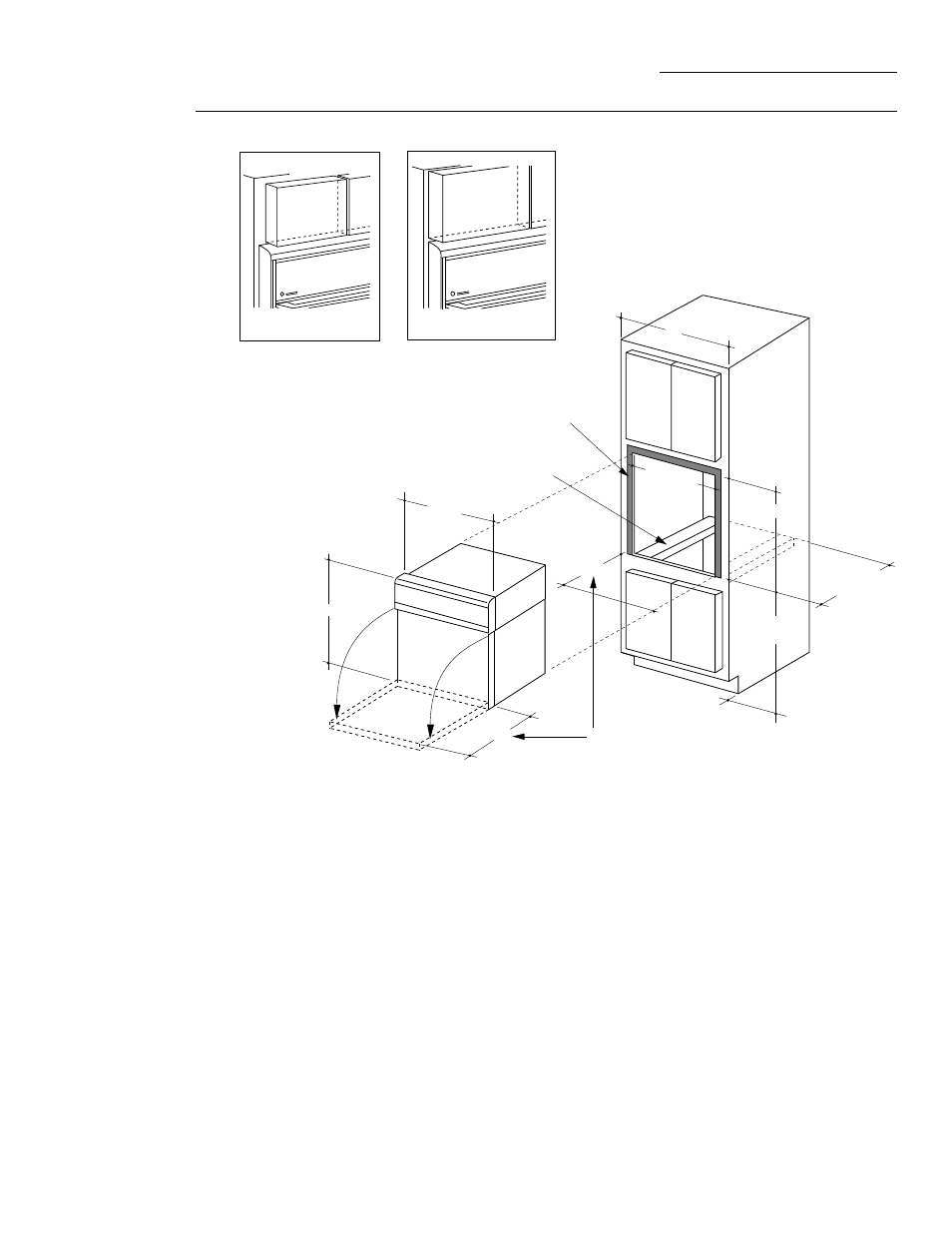

Use the information in this dimension drawing for
typical framed cabinets. The front face of the oven
will be flush with cabinetry doors or drawers.

Order a single oven cabinet.
Rough opening for single oven must be:
• Depth—23-1/2" min. from inside back to front of

cabinet frame.

• Width—28" min., 28-3/8" max.
• Height—23" max.

• 34" from floor is recommended to bring oven

door to countertop height when opened.

• All Monogram ovens require 3/4" overlap on both

sides. Allow 1" min. for top overlap and clearance to
upper doors.

• Oven overlaps will conceal raw edges on top and both

sides of cutout.

Single ovens can be installed below a countertop. Use
the cutout dimensions shown on this page. If the
cabinets being used have an opening that is taller than
the maximum dimensions shown, filler panels can be
made to fill the gaps. See Cabinetry Modifications
Suggestions on page 13 for more information.

23" Max.

17-3/4"

29-1/4"

17-3/4"

Allow Minimum of 17-3/4" for Clearance
to Adjacent Corners, Drawers, or Walls, etc.

34"

Recomended

28" Min.

28-3/8" Max.

30"

23-1/2" Min.
Inside Depth

Allow 3/4" Overlap
on Sides. Allow
1" Min. for Top
Overlap and Clearance.
Allow 1/4" at Bottom
for Clearance.

2"x 4" or
Equivalent Runners
or Solid Shelf

23-1/4"
