GE Monogram ZGU48L6RDSS - Manual

Monogram. ™
Specification Created 7/01
For answers to your Monogram, ® GE Profile ™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
® service, 800.626.2000.
ZGU48L6RDSS—48" Professional Gas Cooktop

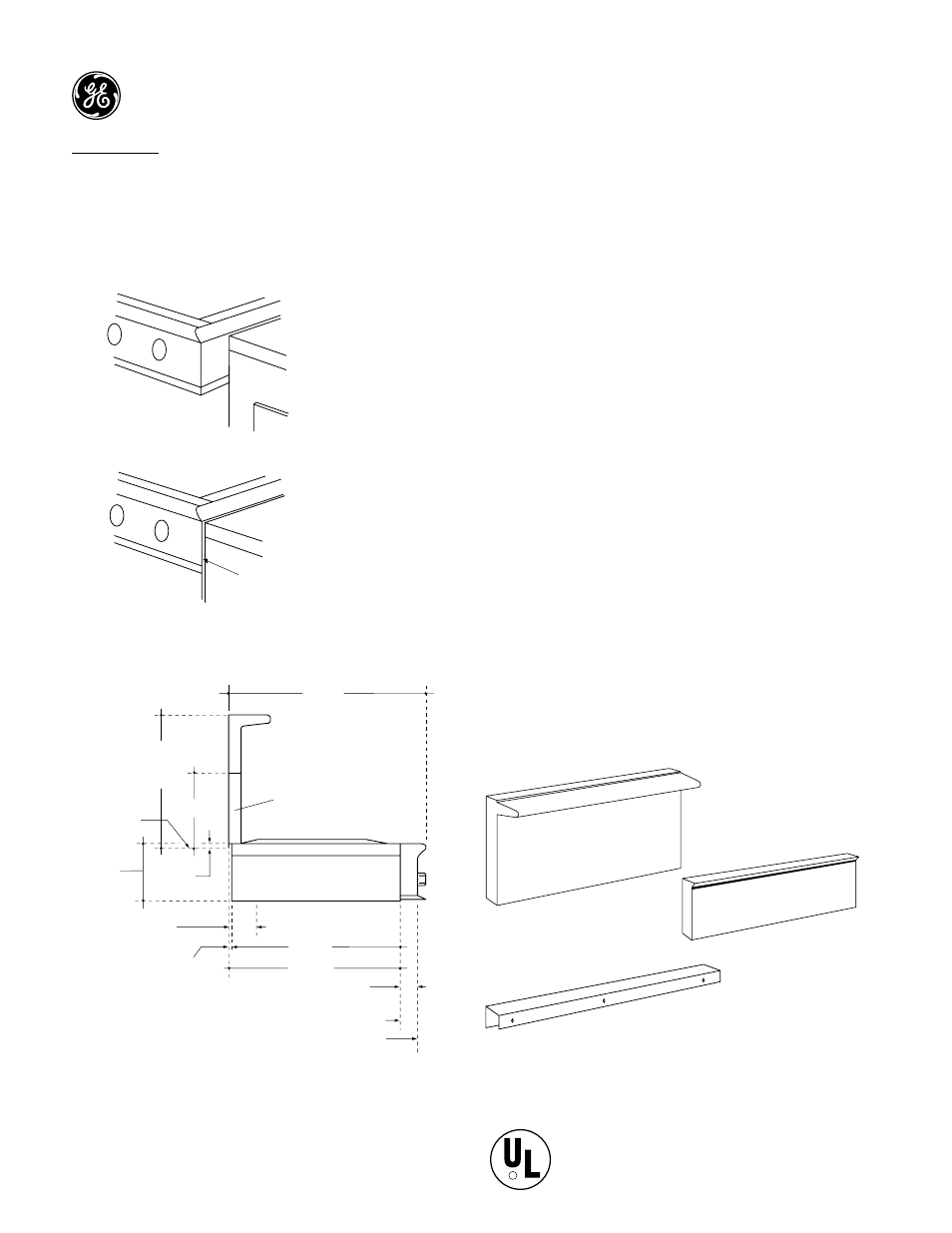

Dimensions and Specifications (in inches)
This cooktop is factory set for liquid propane gas and has 6 gas
burners and grill.
Natural Gas Model Also Available:
ZGU48N6RWSS–6 gas burners and grill.
Installation Options:
This cooktop can be installed in standard 24" or deeper 25" cabinets.
• In 24" deep cabinets, the front of the cooktop will project
approximately 1-7/8" beyond the front of the countertop.
• In 25" deep cabinets, the cooktop will be flush with the front of the
countertop
• The stainless surface of the cooktop will be 1/2" higher than adjacent
countertop.
Accessory Requirements:
All models require the installation of a backguard. A backguard should
be ordered at the same time as the cooktop. Both should be
on site before cabinetry has been installed.
Order one backguard:
ZXC1B48WSS–1-1/2" high backguard (required for island installations)
ZXC12B48WSS–12" high backguard
ZXC22B48WSS–22" high backguard with warming shelf (2 piece)
26-5/8"
12"
1/2"
8-7/16"
Countertop
Level
22-3/4"
23-1/4"
3" to Center Line
of Gas Inlet
2-1/2"
Cabinet Face - Projecting Control Panel
Cabinet Face - Flush Control Panel
1/2"
Low Back
21-1/4"
High
Back
ZXC22B48WSS
ZXC12B48WSS
ZXC1B48WSS
1/2" Above Adjacent
Countertops.
Front Projects Outward as Shown
From Standard Depth Cabinets.
Cooktop
1/2" Above Adjacent
Countertops.
Front Flush With Cabinets - a Minimum
of 25-3/4" Cabinet Depth Required
Flush With Cabinet Front
Cooktop
