10

Installation

30" Built-I n Convection Oven s

208V
Electrical
supply

CAUTION

WARNING

These ovens are pre-wired for connec-

tion to 240 volt, 60 Hz., supply. If connecting
to a 208 volt supply, modifications must be made.

If connecting to a 208 volt, 60 Hz., supply, a jumper
must be used across two terminals.
• For double ovens, there are two jumpers, one for the

upper oven, one for the lower oven.

• For single ovens there is one jumper.

Single ovens,
double ovens–
(upper oven)

Double ovens–
(lower oven)

Double ovens–Lower

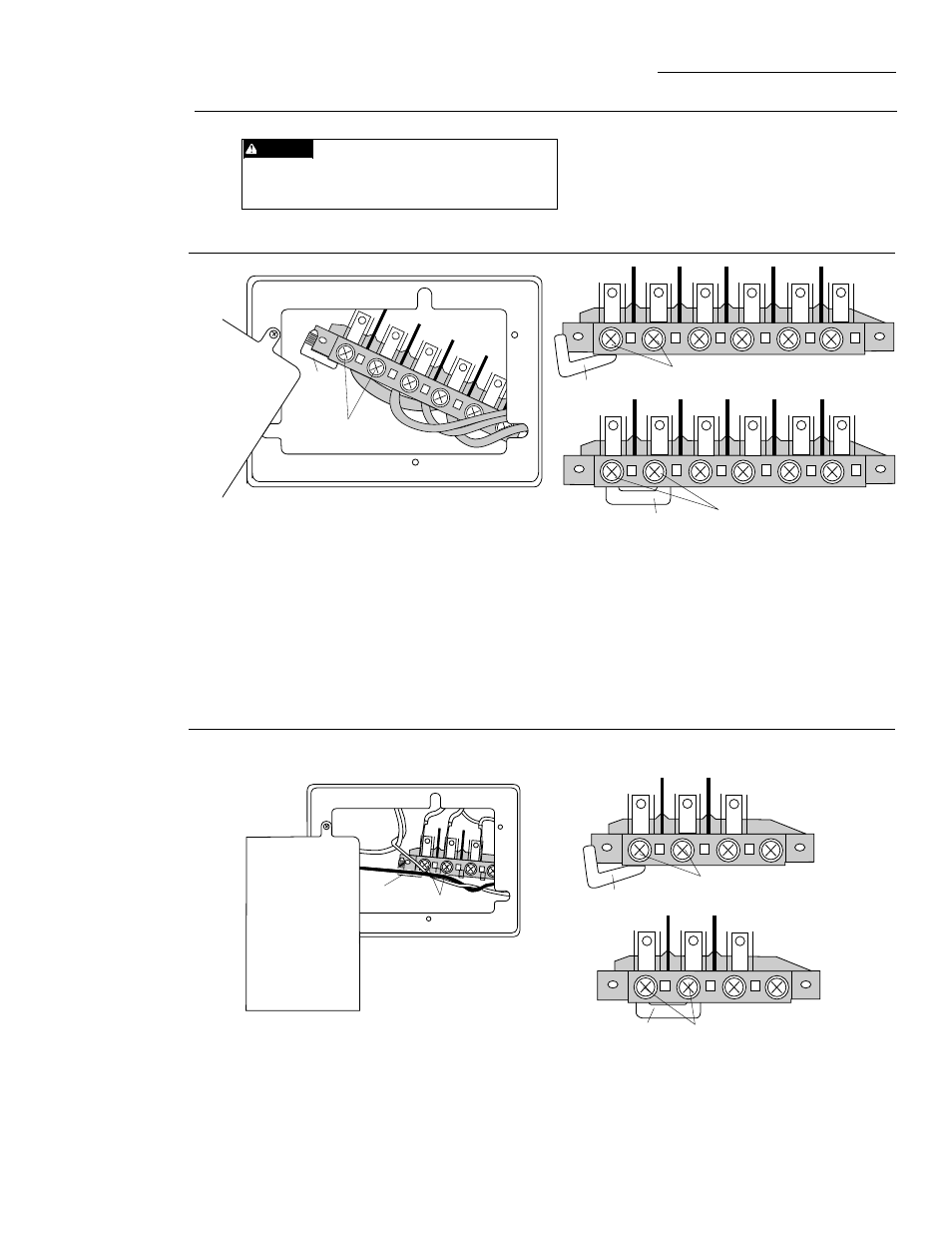

To connect to 208 volt circuit:
• Remove the access panel(s) located on the back of

the ovens.

• Loosen the first and second screws in the terminal

block as shown.

• Remove the jumper and place between the first and

second screws, tighten the screws to hold the
jumper in place.

• Replace the access panel(s).

Jumper

Loosen Screws

Jumper

Tighten Screws

1

2

3

4

5

Loosen Screws

Jumper

1

2

3

4

Loosen Screws

Jumper

Jumper

Loosen Screws

Jumper

Tighten Screws
