2-1
WIRING
2.1 Display Unit
Fabricating the power cable DPYCY-3.5 (JIS cable)
1. Remove the vinyl sheath by 80 mm.
2. Cut off jute tape wrapped around the armor.
3. Unravel the armor to expose the cores by about 35 mm.
4. Remove insulation of cores by about 10 mm. Fix crimp-on lugs to the cores and
armor.
5. Cover the armor with vinyl tape, leaving the portion which will lie inside the
cable clamp untaped.
40 mm
Lay this part in cable clamp.
Taping
(a)
(b)
(d)
Vinyl sheath
5 mm
Armor
DPYCY-3.5
10 mm
(c)
About 80 mm
Core
S = 3.5 mm
∅
= 2.4 mm
2
Armor
Vinyl
sheath
DPYCY-3.5 sectional view

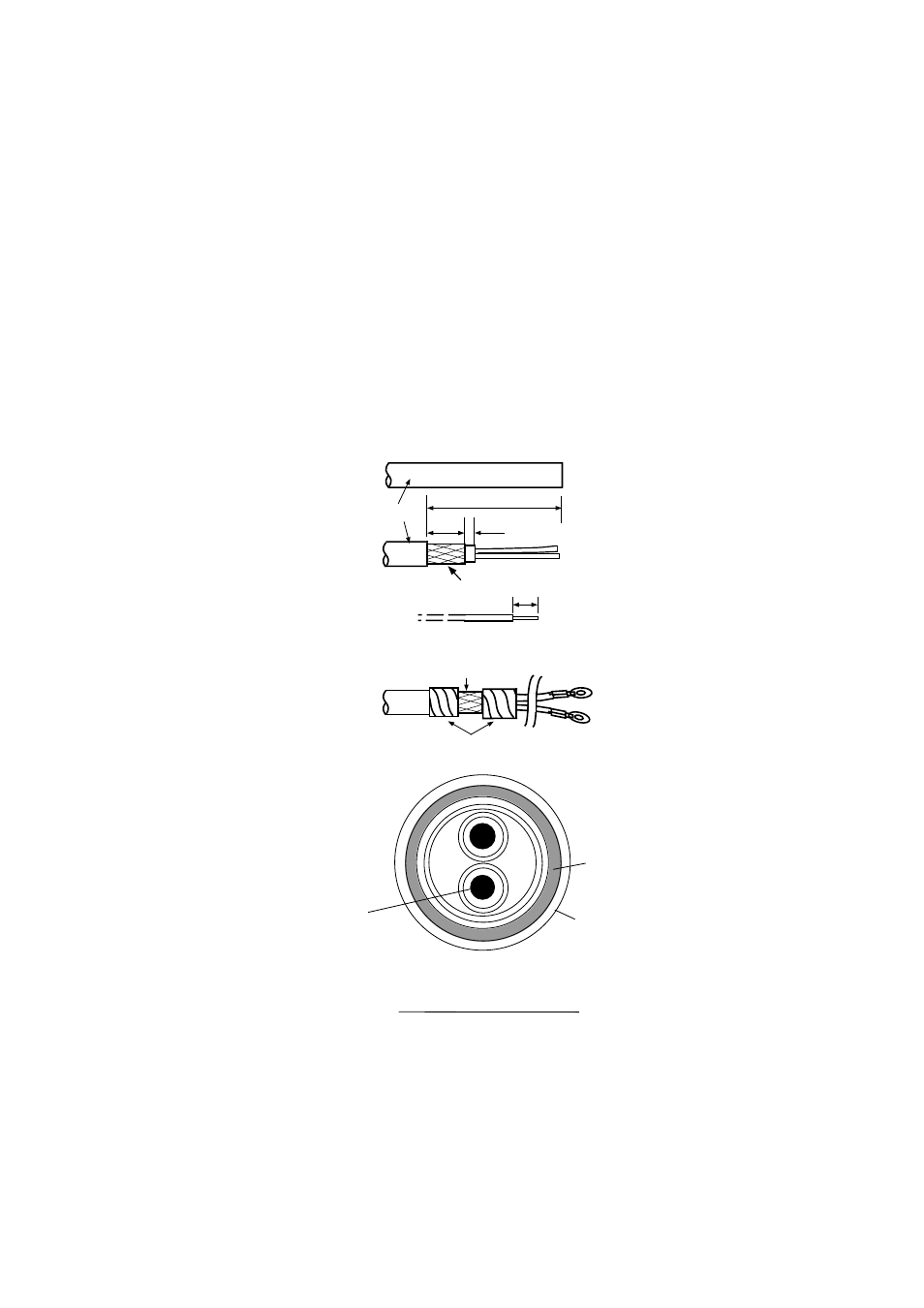

Figure 2-1 Fabrication of power cable DPYCY-3.5 (JIS cable)
