1-10
✂
✲✔✓✙
✲✔✓✘
✲✔✓✗
✲✔✓✖
✲✗✗✙
✲✗✙✙
✲✗✙✕
✲✗✙✘
*M3x8, 5 pcs.
*
*
*
*
Slide forward.
M4x8, 2 pcs.
Fixing hole (front)
Fixing hole (rear)
Knob

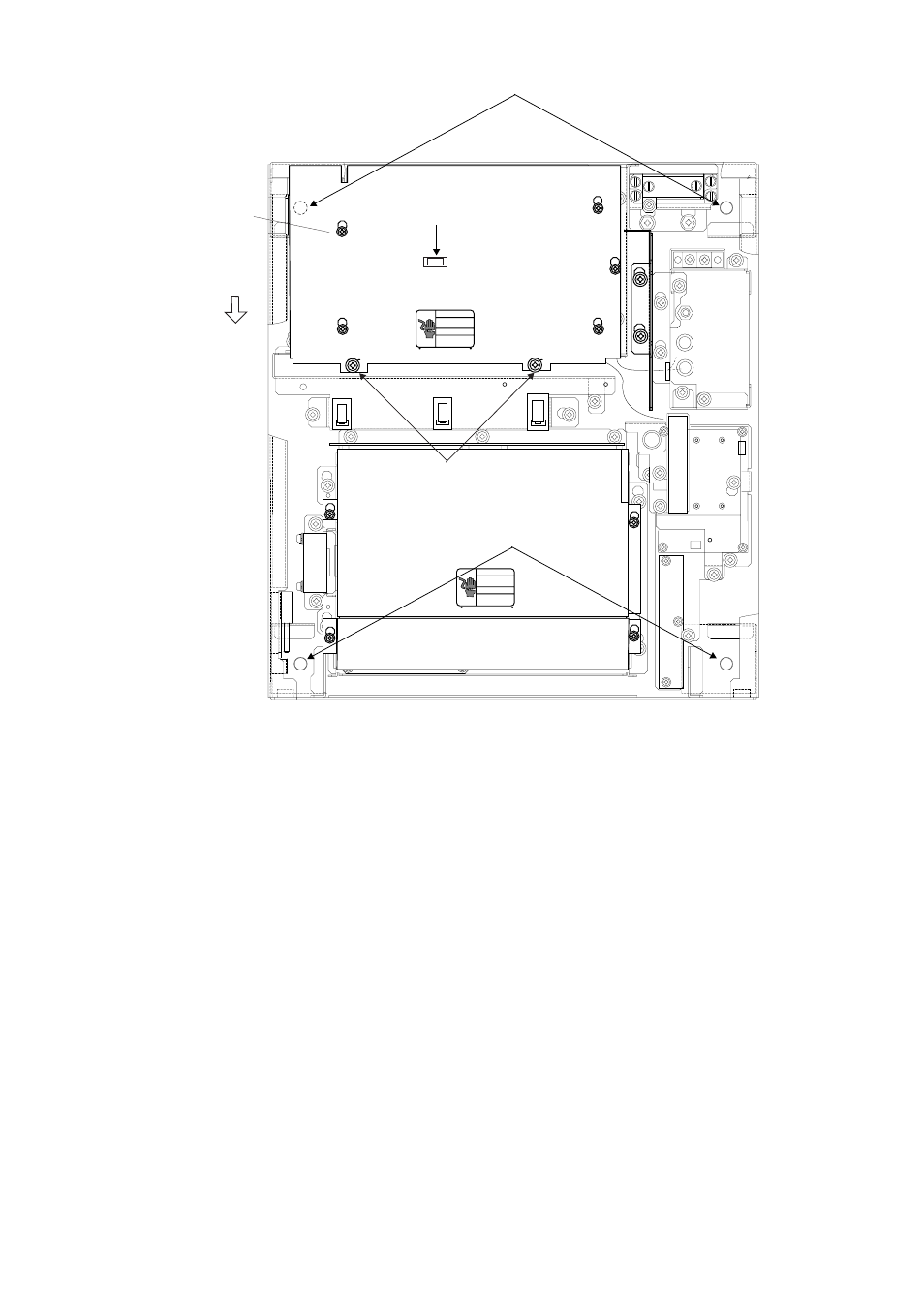

Figure 1-12 How to remove the PTU cover
9. Push the monitor forward until you hear a click.
10.Fix the brackets with the M10 bolts removed at step 2.
Console type mounting
1. Make six holes of 15 mm diameter and a cable entrance hole through the deck
referring to the outline drawing at end of this manual.
2. Open the front cover.
3. Fix the equipment with M12 bolts, nuts and washers.
4. Hoist the console to the deck by using the eye bolts attached to the console.
Remove the eye bolts and set the cosmetic caps to the eye bolt holes.
Separating the control head
The control head connects to the display unit with a connection cable, thus it can
be located where desired, using the separate control head kit (option). Follow the
procedure on the next page to separate the control head from the display unit.
