4. Unfasten the M4 screw fixing the ground terminal of the connection cable.
5. Push the monitor forward until you hear a click.
6. Unscrew four screws fixing the top cover of the display unit.
7. Remove three clamps fixing the connection cable in the monitor unit.
8. Unfasten four screws fixing the right and left brackets on the control head.
9. Unfasten four screws fixing the right and left covers of the display unit.
10.Unfasten six screws fixing the right and left KB arms.
11. Unfasten three screws fixing the panel cover.
KB arm (L)
03-144-1341
M5X25 SUS 3 pcs.
Panel cover
03-144-1345
M4X10, 3 pcs.
Control head
M5X25 SUS 4 pcs.
M5X25 SUS 3 pcs.
KB arm (R)
03-144-1342

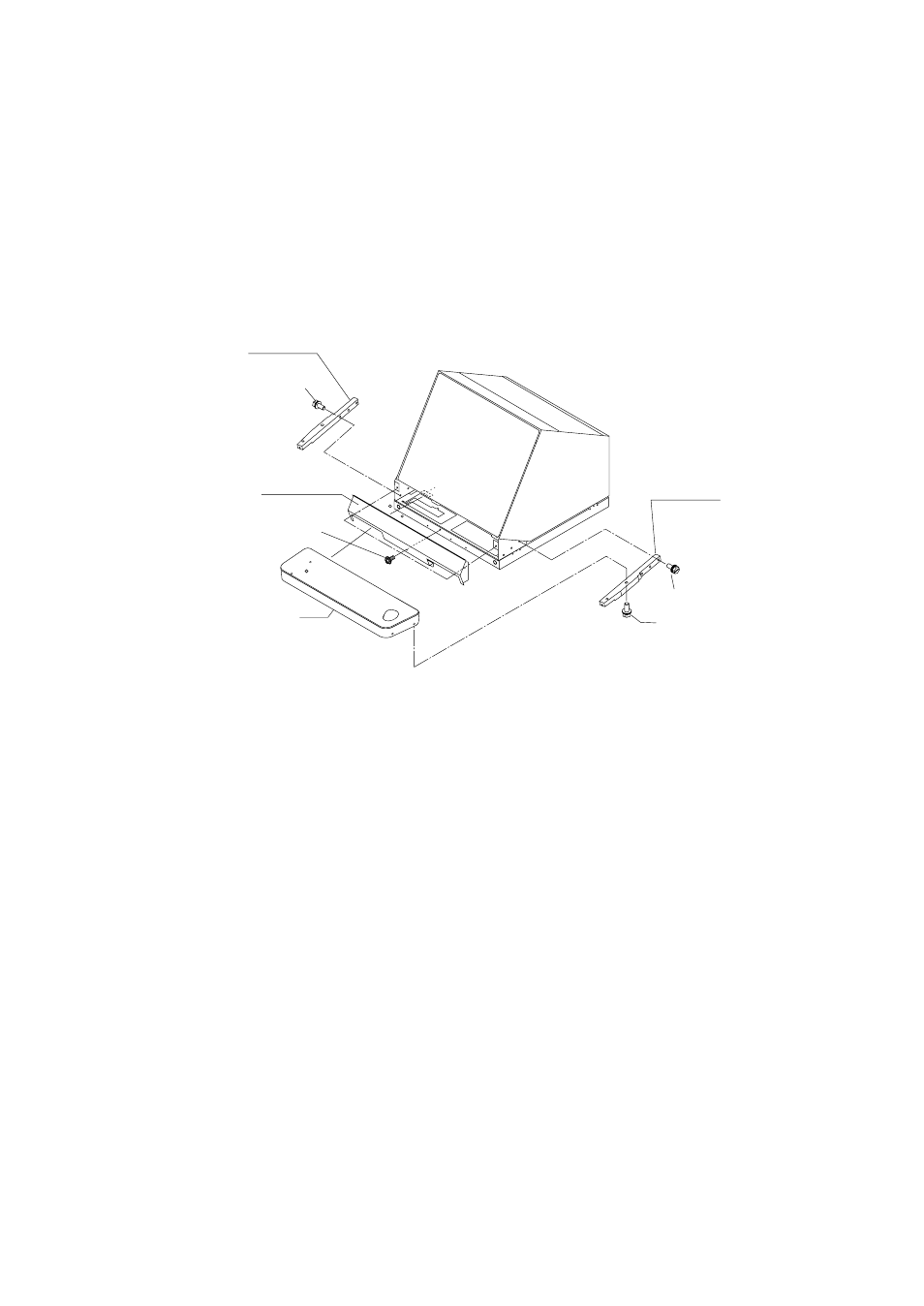

Figure 1-14 Detaching the control head
