AP-5
Appendix 3
REPLACING CONSUMABLES
■ Consumables and Replacement
Cycle
The followings are the specifications of consumables
and their recommended replacement cycles.
To purchase consumables, contact the store where you
purchased the scanner or an authorized FUJITSU scanner
service provider.
The replacement cycles above are rough guidelines
when scanning A4/Letter sized, 80 g/m
2
[20lb] paper.
This cleaning cycle varies according to the type of
papers scanned and how frequently the scanner is used
and cleaned.

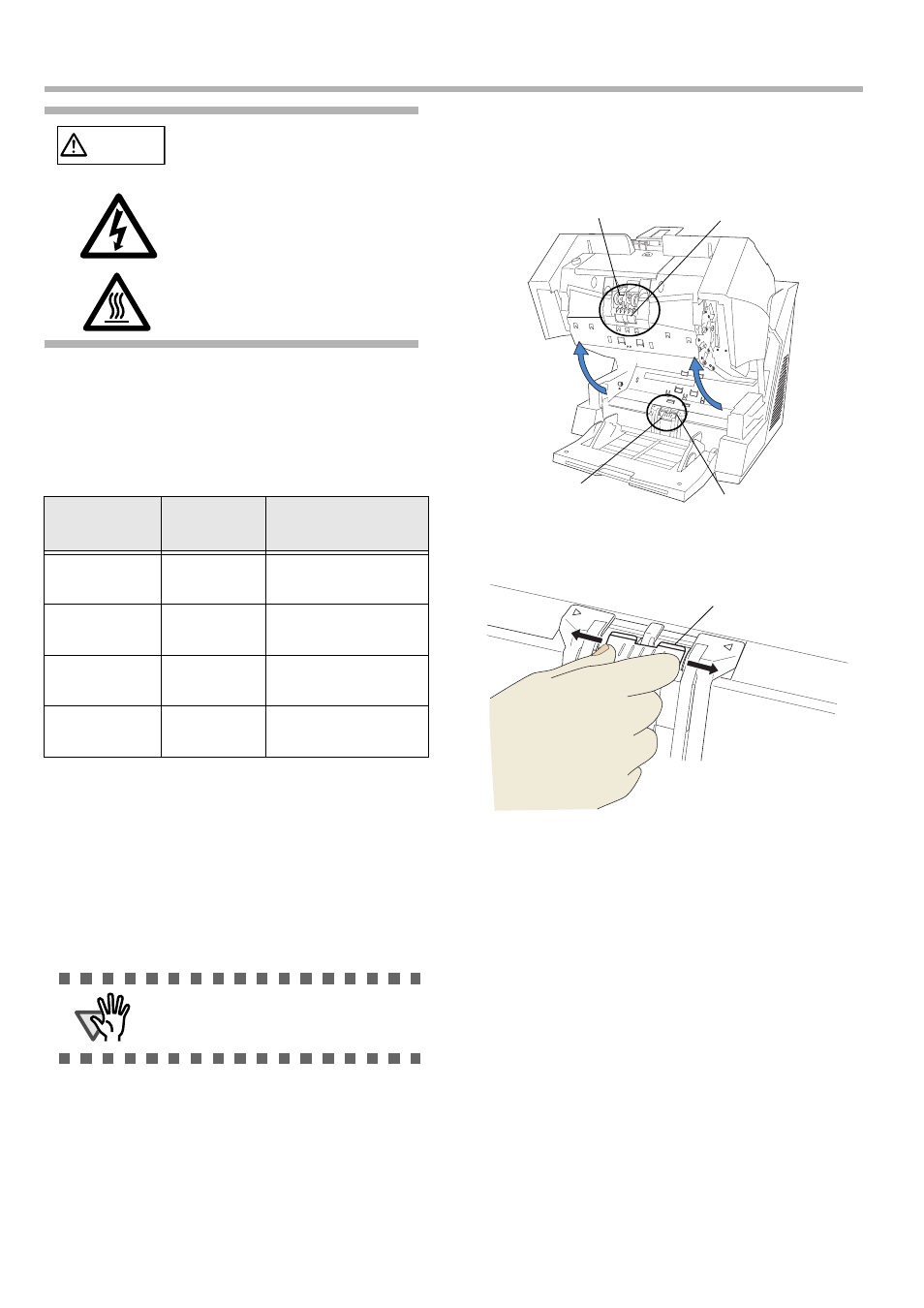

The following illustrations show the locations of the
consumables. Refer to "5. REPLACEMENT OF CON-
SUMABLES" in the fi-5950 Operator’s Guide on the
SETUP DVD-ROM.
■ Pad
CAUTION
During its operation, the inside
glass of the ADF becomes very
hot.
Before replacing the
consumables, turn its power off
and unplug the AC adapter from
the outlet. Wait at least
15 minutes.
Description Parts No.
Standard
Replacement Cycle
Pad PA03450-
K014
After 600,000 scans or
one year
Pick rollers PA03450-
K011
After 600,000 scans or
one year
Brake roller PA03450-
K013
After 600,000 scans or
one year
Separator
rollers
PA03450-
K012
After 600,000 scans or
one year
ATTENTION
Use only the specified consumables.
Separator roller
Pick roller
Pad
Brake roller
Pad
To remove
To install
