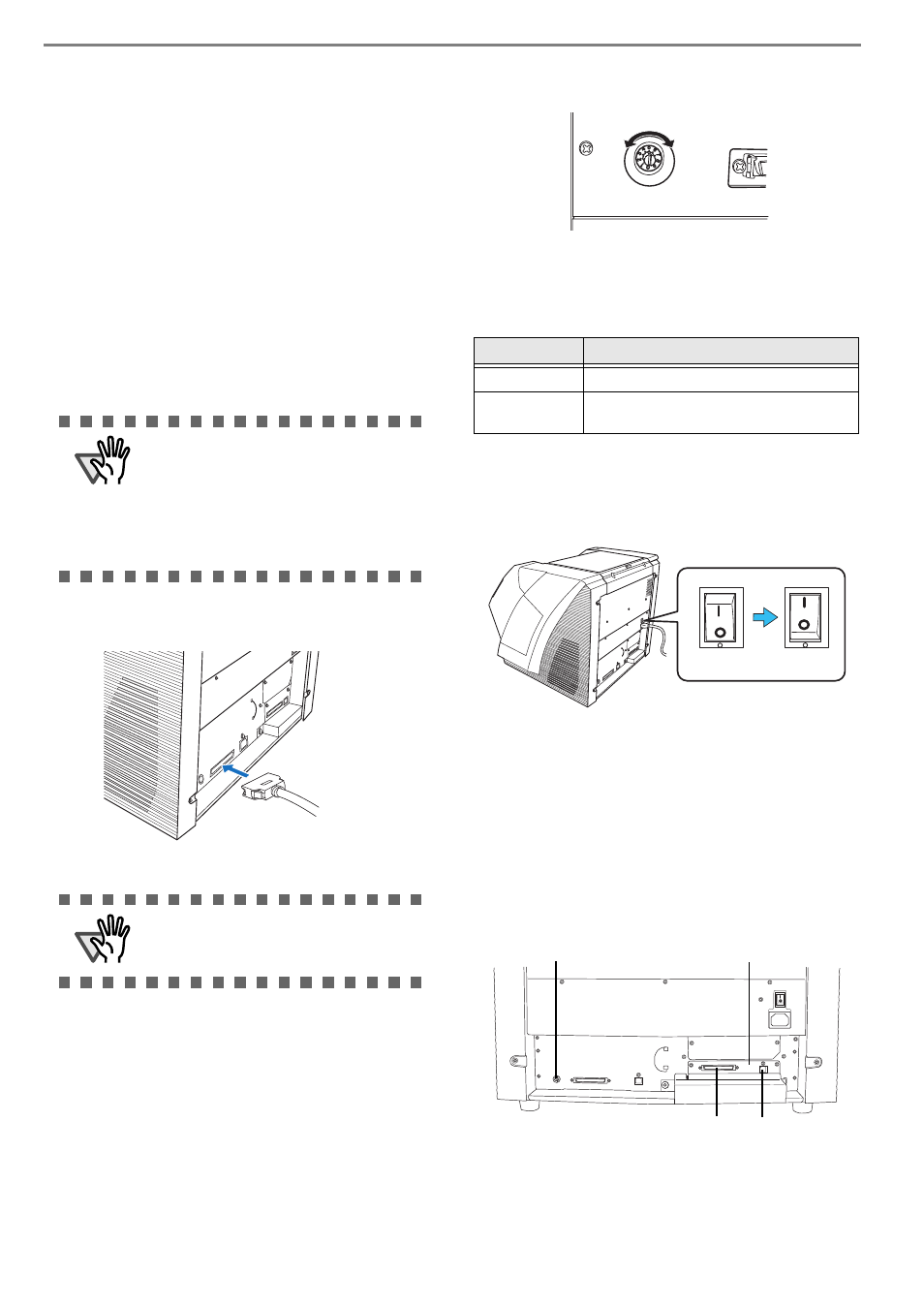

■ Connecting the SCSI interface

When using the scanner with a SCSI interface, the fol-
lowing SCSI cable and SCSI card must be purchased.

• SCSI cable

Use a SCSI cable whose connector on the scan-

ner side is the 68-pin high-density shielded-type

and whose connector on the PC side fits the con-

nector of the SCSI card to use.

It is recommended to use a cable of length 1.5 m

or shorter.

• SCSI card

Find the recommended SCSI card information

1. Insert the SCSI cable into the interface connec-

tor of the scanner until both sides click.

2. Connect the other end of the cable to your PC.

3. Set the SCSI ID using the SCSI ID switch on

the back of the scanner.

The SCSI ID is initially set to "5" at the factory.
If the SCSI ID of another SCSI device is set to the

same ID, either change the scanner's SCSI ID or
SCSI ID of the other SCSI device.

When the scanner is turned on, the SCSI ID set is

enabled.

4. Press the "I" side of the main power switch to

turn on the scanner.

■ When using VRS

When using the Kofax

VRS, you need to connect it to

the exclusive VRS board with either the USB cable or
SCSI cable.

1. If you use the USB cable, insert it into the inter-

face connector (1) shown below.
If you use the SCSI cable, insert it into the
interface connector (2) shown below.

2. Connect the other end of the cable to your PC.

ATTENTION

•

When connecting the SCSI cable, turn
the scanner off. Be sure to connect the
SCSI cable first, and then turn on the
power of the scanner and PC.

•

In a SCSI daisy chain configuration,
connect the scanner so that it is the ter-
minated device.

ATTENTION

Be careful not to bend the pins of the SCSI
cable when connecting to the scanner.

ID No.

Description

0 to 7

Can be set as the ID

8, 9

Works with the factory default value
(SCSI ID = 5).

OFF

SCSI ID Switch

VRS board
