DOUBLE MODELS
US CA

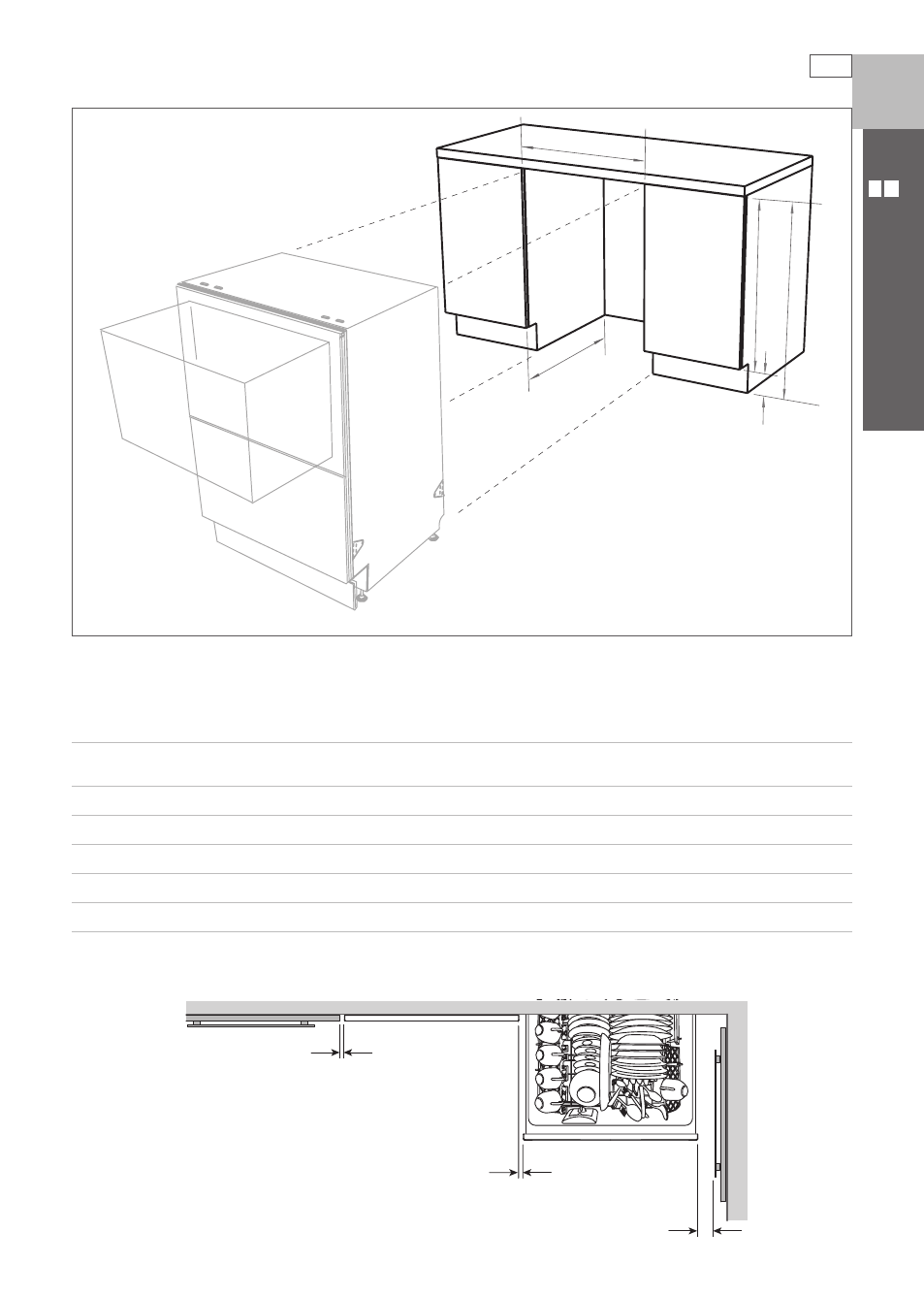

Cabinetry dimensions
A
B
C
D
E
Installation diagrams for illustration purposes only
Cabinetry dimensions (inches (mm))
Pr
e
fi nished
F
lat door DD224P5
A inside height of cavity
32 5⁄16 - 34 ¾ ”
(820 - 882.5)
B inside width of cavity 24” (610)
C inside depth of cavity (inside) 22 7⁄8 ” (580)
D height of adjacent cabinetry 28 3⁄8” (720)
E height of kickstrip 2 ¾ - 4 ¾ ” (70 - 120)
Minimum clearances (inches (mm))
1⁄8 ” ( 2.5 mm)
1⁄8 ” ( 2.5 mm)
½ ” ( 13 mm)
