DOUBLE MODELS
US CA

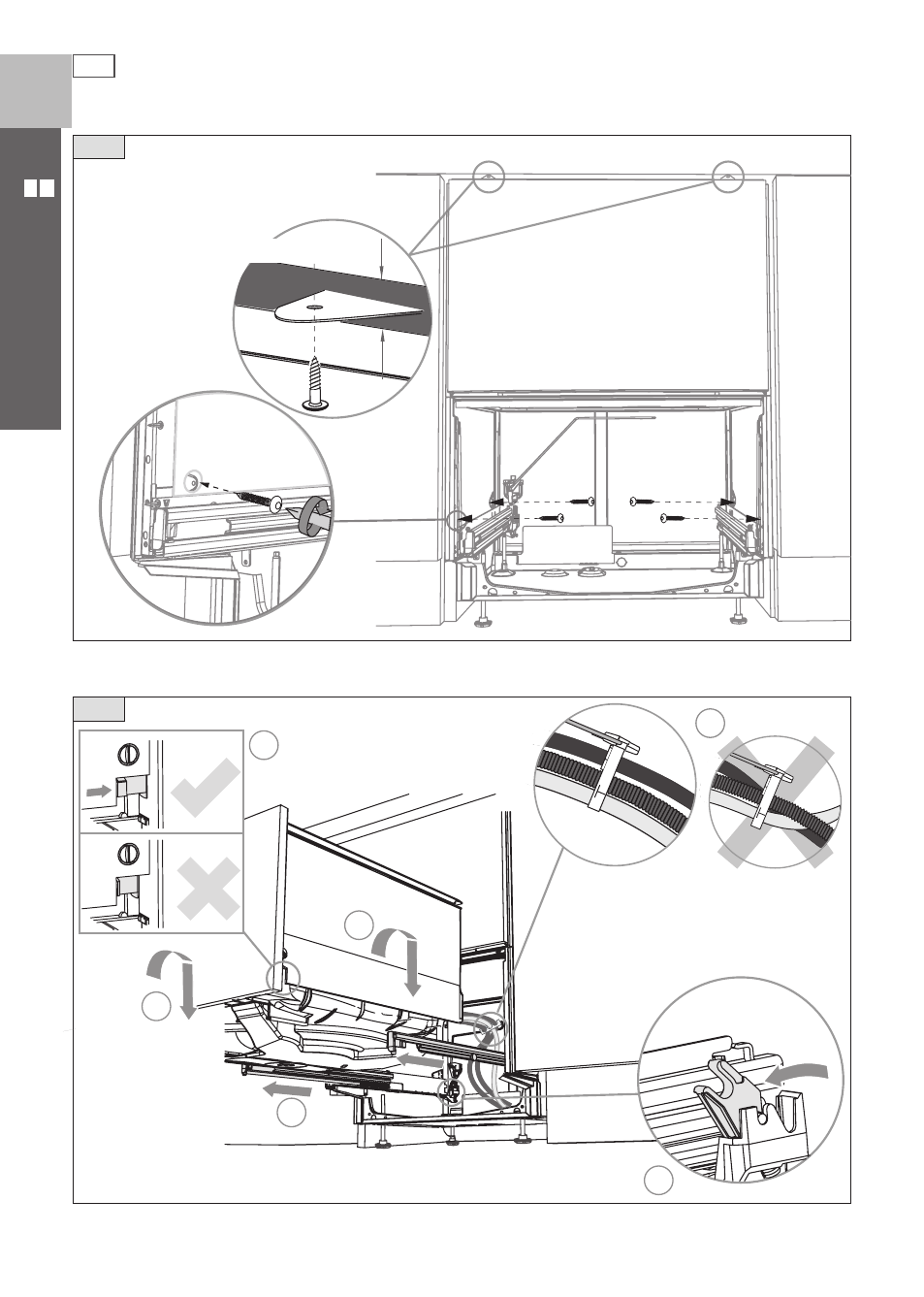

Securing the product and refi tting the tub
A
1
2
4
5
4
3
C C
B B
A
5
optional
6
max. ¾ ” (19 mm)
The mounting tabs
are in pairs, one on
each side of the
product. At least two
sets of tab pairs must
be used.
A and B tab pairs
OR B and C tab pairs
or all three pairs.
Ensure the sound
insulation is
repositioned
correctly.
Before refitting the tub,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.
Ensure the tub clips on
both sides are reset.
Ensure the tub is
now rotated
clockwise back.
