SINGLE MODELS
US CA
DishDrawer® and Standpipe Ø 1 ½ ” (38 mm)

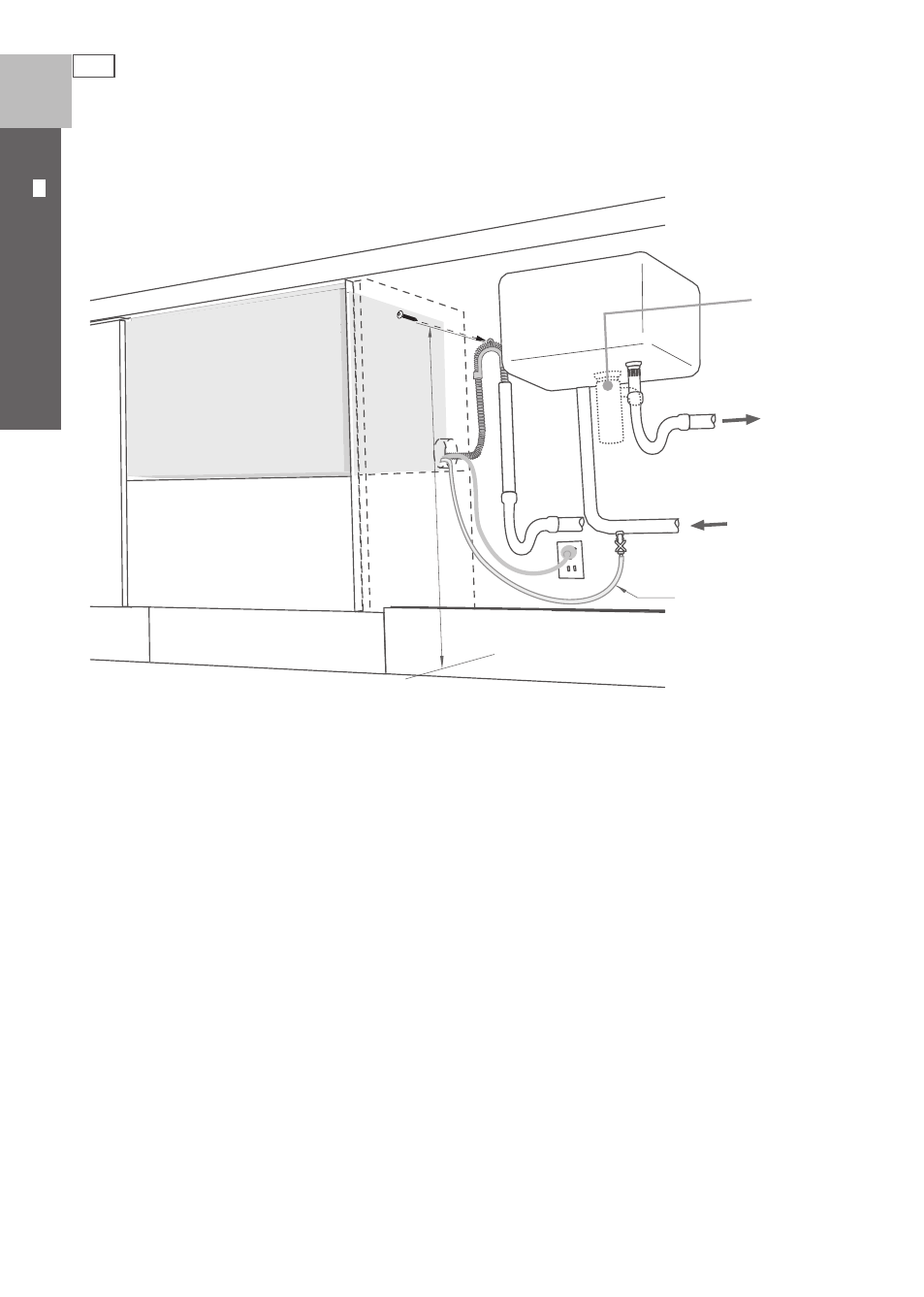

Plumbing and drainage - OPTION 3
29 ½
”
-
34
¾ ”
(
750 - 882.5 mm)
Waste
Waste
Valve
Water
supply
(HOT)
min. R 8 ” ( 200 mm)
Waste disposal
(optional)
