4.3 Replacing the Pick Roller
fi-4120C2 Image Scanner Operator’s Guide 59
REPLACING CONSUMABLES
4

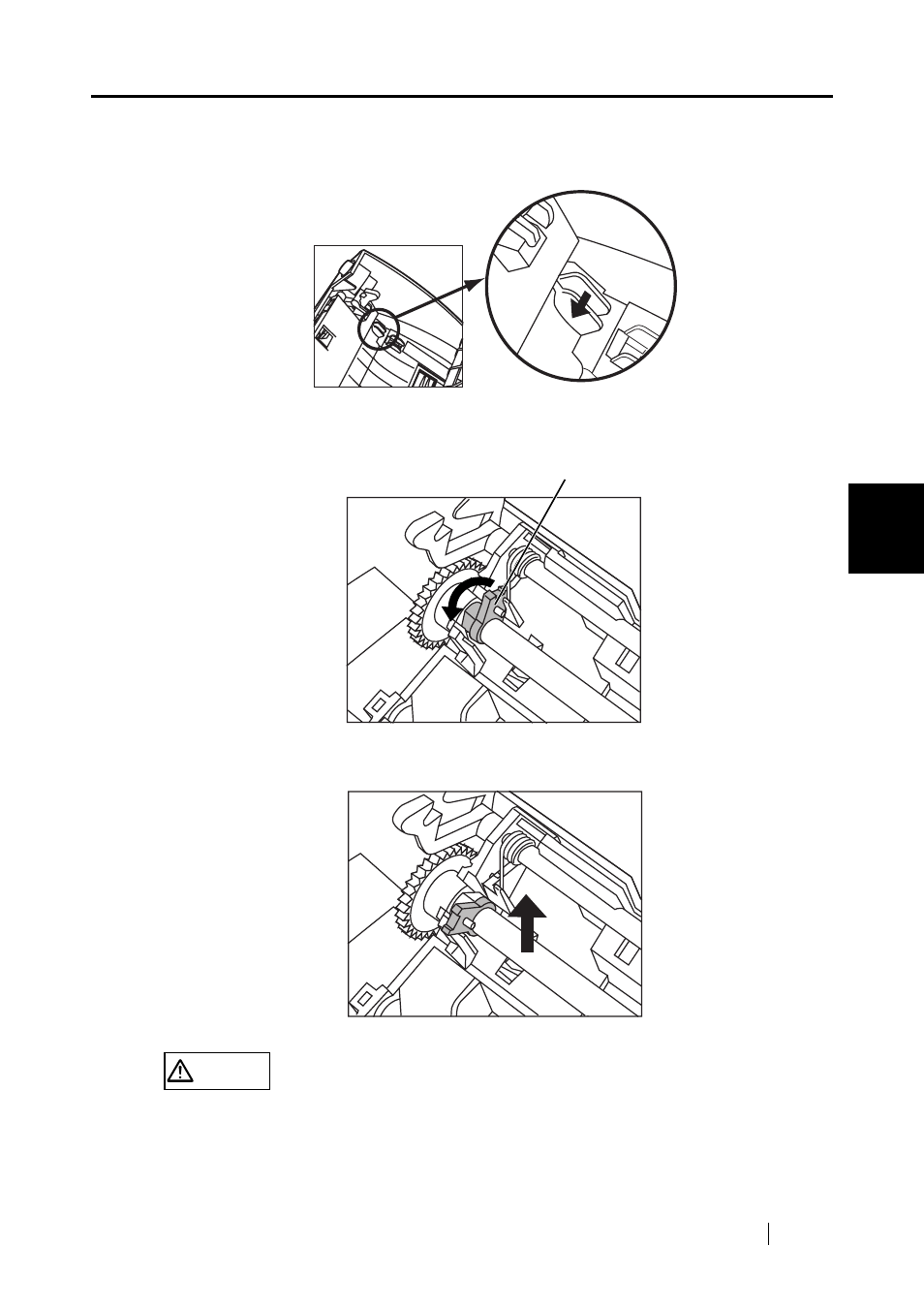

4. Remove the Pick roller from the scanner.
1) Grip the knobs on the sheet guide with your fingers, and lift it up to remove.
2) Rotate the Pick roller bushing in the direction of the arrow.
3) Remove the Pick roller while lifting it up in the direction of the arrow.
CAUTION
The Pick roller Bushing is hard. Do not turn this bearing with your fingernails.
Use a paper clip for turning the roller bushing If you can not rotate it with your finger.
Pick roller bushing
