4.2 Replacing the Pad ASSY
fi-4120C2 Image Scanner Operator’s Guide 55
REPLACING CONSUMABLES
4

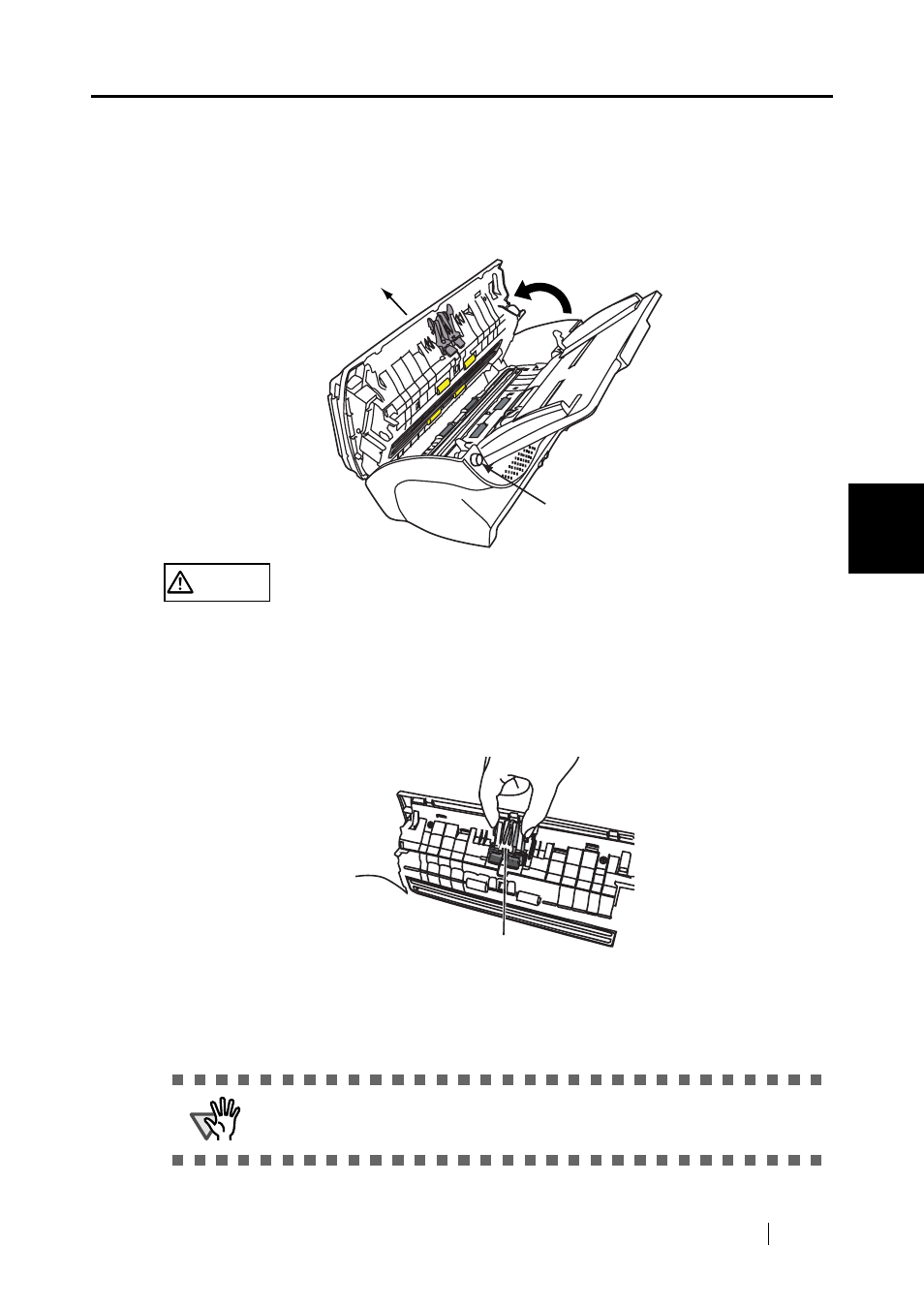

4.2 Replacing the Pad ASSY
1. Remove any documents on the ADF paper chute.
2. Open the ADF by pushing the ADF button.
CAUTION
Be careful, the ADF cover may close and pinch your finger.
3. Remove the Pad ASSY.
Press the knobs on both ends of the Pad ASSY, and pull the Pad ASSY upwards and towards
you.
When doing this, take care not to catch the pick springs.
4. Attach the new Pad ASSY.
Hold both ends of the new Pad ASSY and attach it to its installation location.
When doing this, take care not to catch the pick springs.
ATTENTION
Make sure that the Pad ASSY is firmly attached. When the Pad ASSY is
not correctly attached, document jams or other feeding errors may occur.
ADF button
ADF Cover
Pick spring
