FUJITSU fi-4120C2 User Manual
Page 62
46
2. Clean the following locations with a soft, dry cloth moistened with Cleaner F1.
• Pad ASSY
Clean the Pad ASSY (rubber surface) downwards (direction of arrow). Take care not to
catch the pick springs to avoid bending.

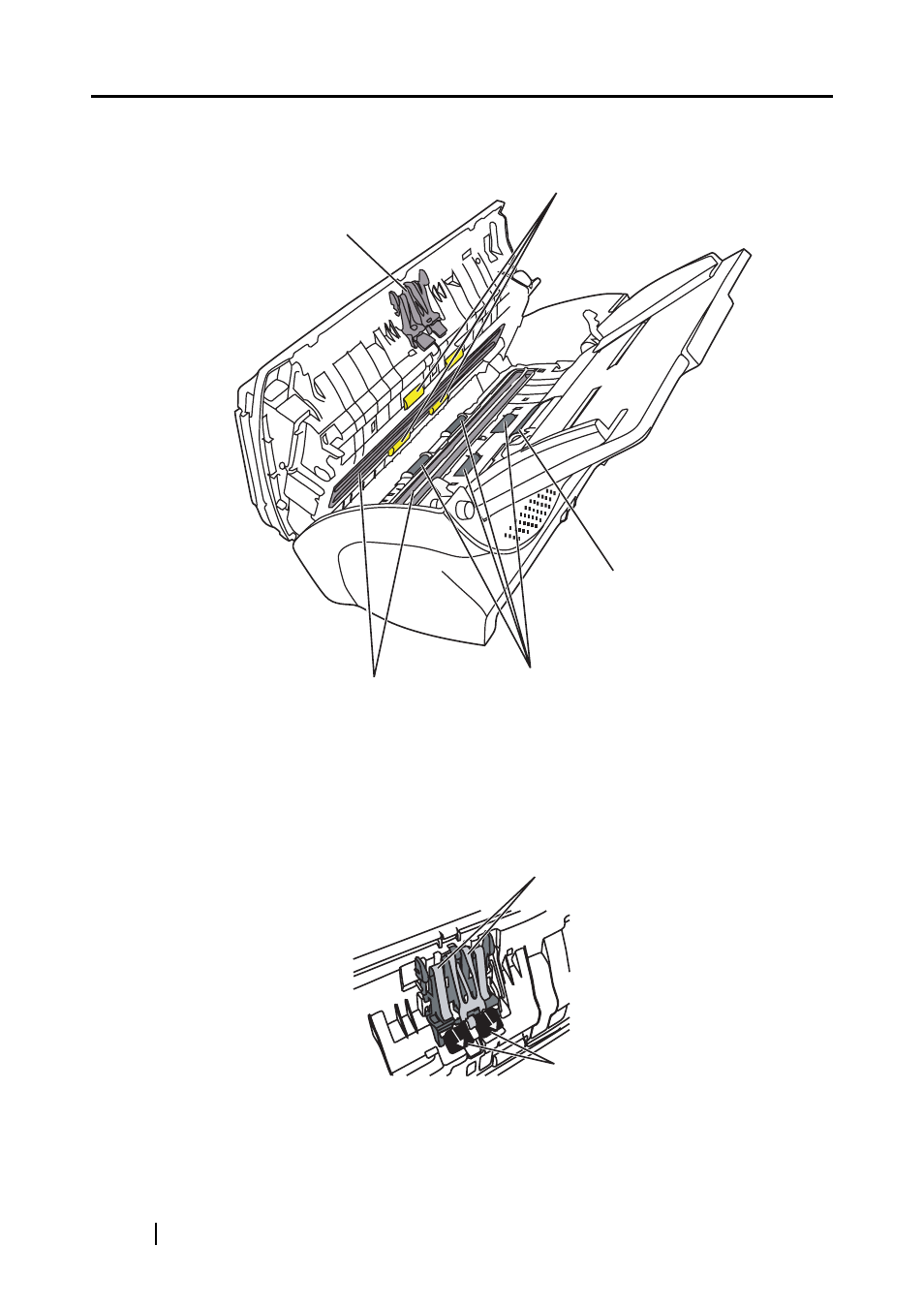

Pick roller (One pieces)
Plastic rollers (Four pieces)
Glass (Two parts)
Feed rollers (Four pieces)
Pad ASSY
Pick spring
The portion
to clean
