1.3.9.1 CD-RW/DVD-RW Drive Unit
TABLE 1-11 lists the features, location, and specifications of the CD-RW/DVD-RW
drive unit.
There are two types of CD-RW/DVD-RW drive units: tray load or slot load. Each
type of drive unit will connect only with its corresponding drive unit backplane.
Caution – Prior to ordering CD-RW/DVD-RW drive unit or CD-RW/DVD-RW
drive unit backplane replacements, inspect both the CD-RW/DVD-RW drive and
CD-RW/DVD-RW drive unit backplane of your system for compatibility.

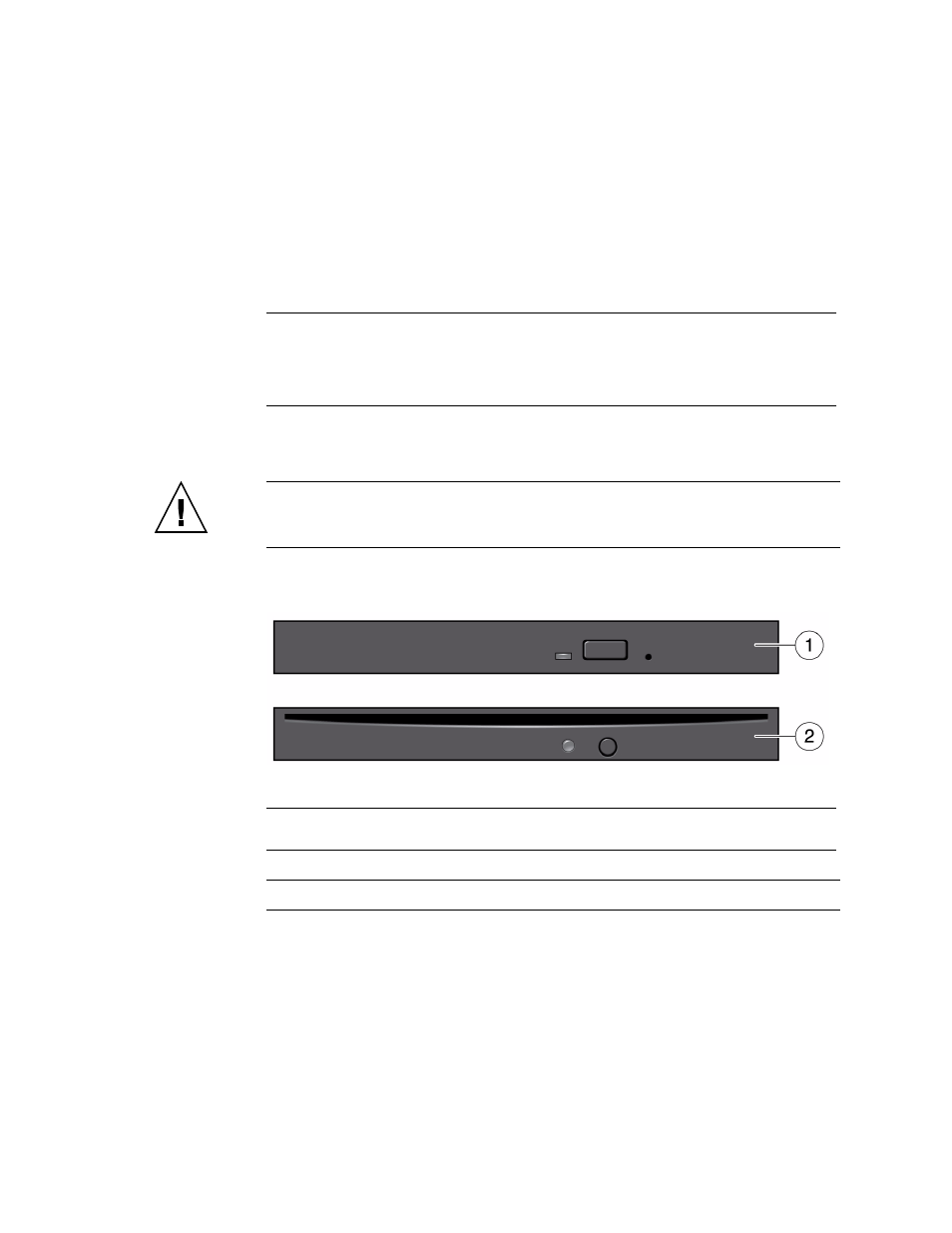

FIGURE 1-22 Two Types of CD-RW/DVD-RW Drive Units
Note – The locations of the LED and button might vary depending on the servers.
1.3.9.2 Hard Disk Drive
The hard disk drives are located on the front of the midrange server. The SAS
interface on the hard disk drive allows a fast data transmission rate.
TABLE 1-11 CD-RW/DVD-RW Drive Unit Features and Specifications for Both Servers
Number of CD-RW/DVD-RW drive unit 1
Location Front of server to the right of the hard disk
drives
Hot FRU replacement No
Figure Legend
1 Tray-loading CD-RW/DVD-RW drive unit
2 Slot-loading CD-RW/DVD-RW drive unit
