ScanSnap S510M Getting Started 16
2.2 Connecting the ScanSnap to Your Computer
Follow the procedure below to connect the ScanSnap to your computer.
1. Connect the ScanSnap to a power outlet with the power cable.
2. Connect the ScanSnap to your computer with the USB cable.
The following describes each of the above two procedures.
■
Connecting the Power Cable

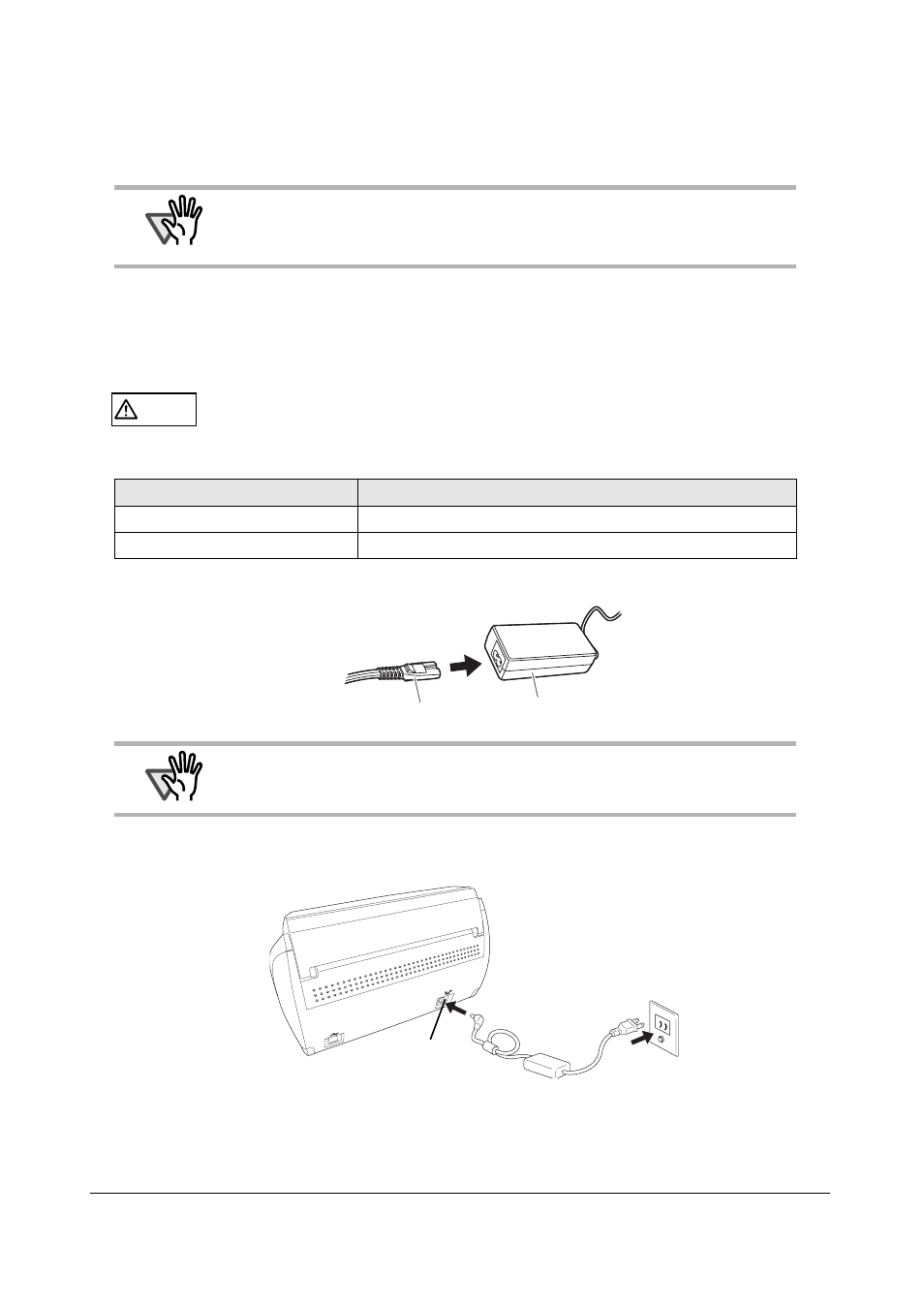

Connect the AC cable and adapter as shown below.
Do not use AC adapters other than the following.
1. Connect the AC cable to the AC adapter (collectively called the power cable).
2. Plug the power cable into the AC adapter connector on the back side of the ScanSnap, and
the other end to a wall outlet.
ATTENTION
• Be sure to connect the power cable before connecting the USB cable.
• Be sure to install the supplied programs before connecting the ScanSnap to your
computer. For details about the installation, refer to "Installing ScanSnap Manager" (page
15).
CAUTION
Manufacturer AC-adapter model number
LEI NU40-2160250-I3
SANKEN ELECTRIC CO,. LTD SEB55N2-16.0x (x= A-Z or Blank)
ATTENTION
Use only the supplied AC cable and AC adapter (power cable).
AC cable
AC adapter
AC adapter connector
Outlet
