Page 26
Color monitor 19T2
18 - English
A26361-K616-Z100-2-5E19

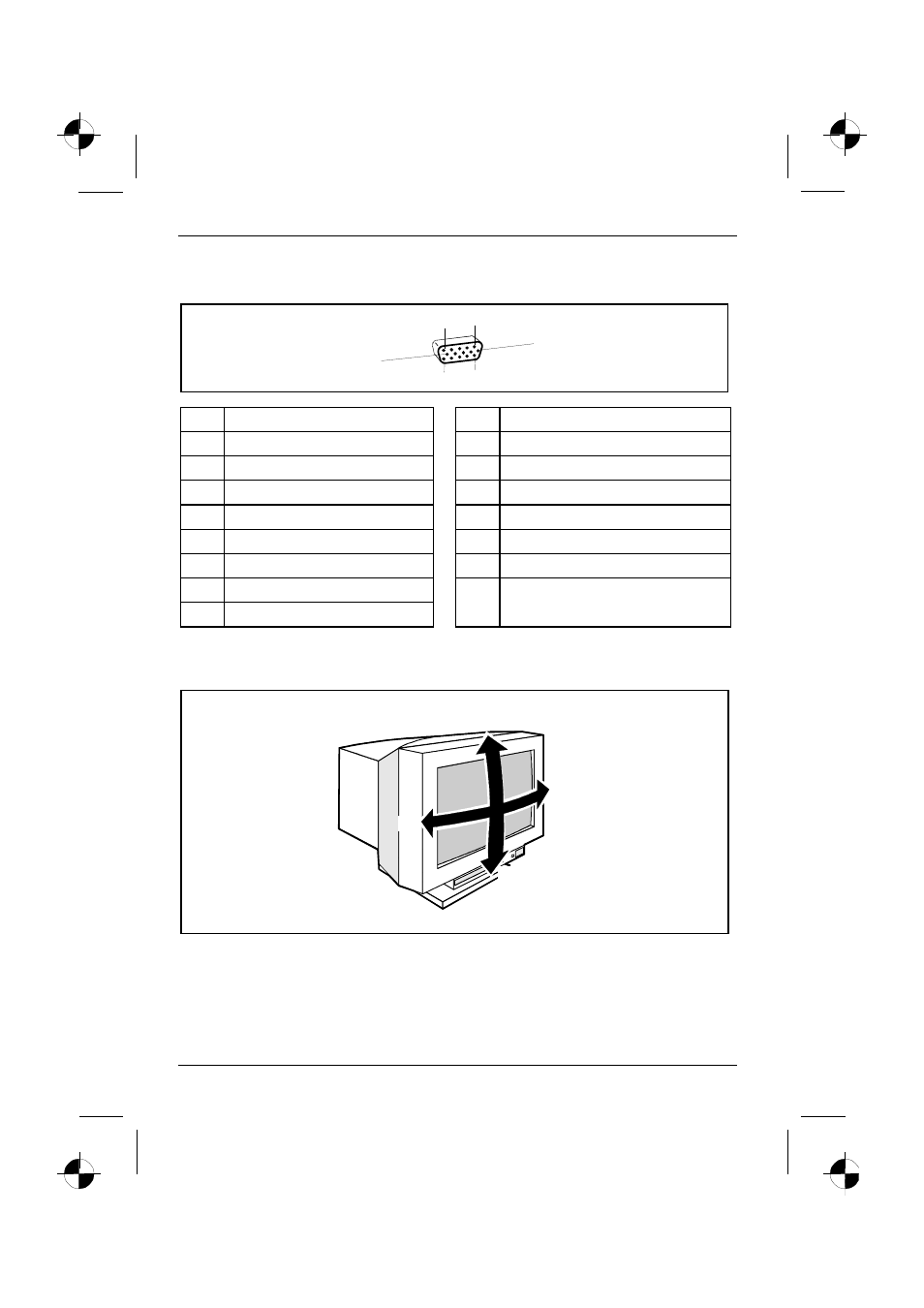

Pin assignment D-SUB (15-pin)
1
5
6
10
11
15
Pin
Meaning
Pin
Meaning
1
Video input red
9
+ 5 V
2
Video input green / Sync. on green
10
Logic ground
3
Video input blue
11
Monitor ground
4
Monitor ground
12
Bi-directional Data (SDA)
5
DDC ground
13
H. sync
6
Red video ground
14
V. sync
7
Green video ground
15
Data Clock (SCL)
8
Blue video ground
Tilting and turning area
15°
5°
90°
90°
