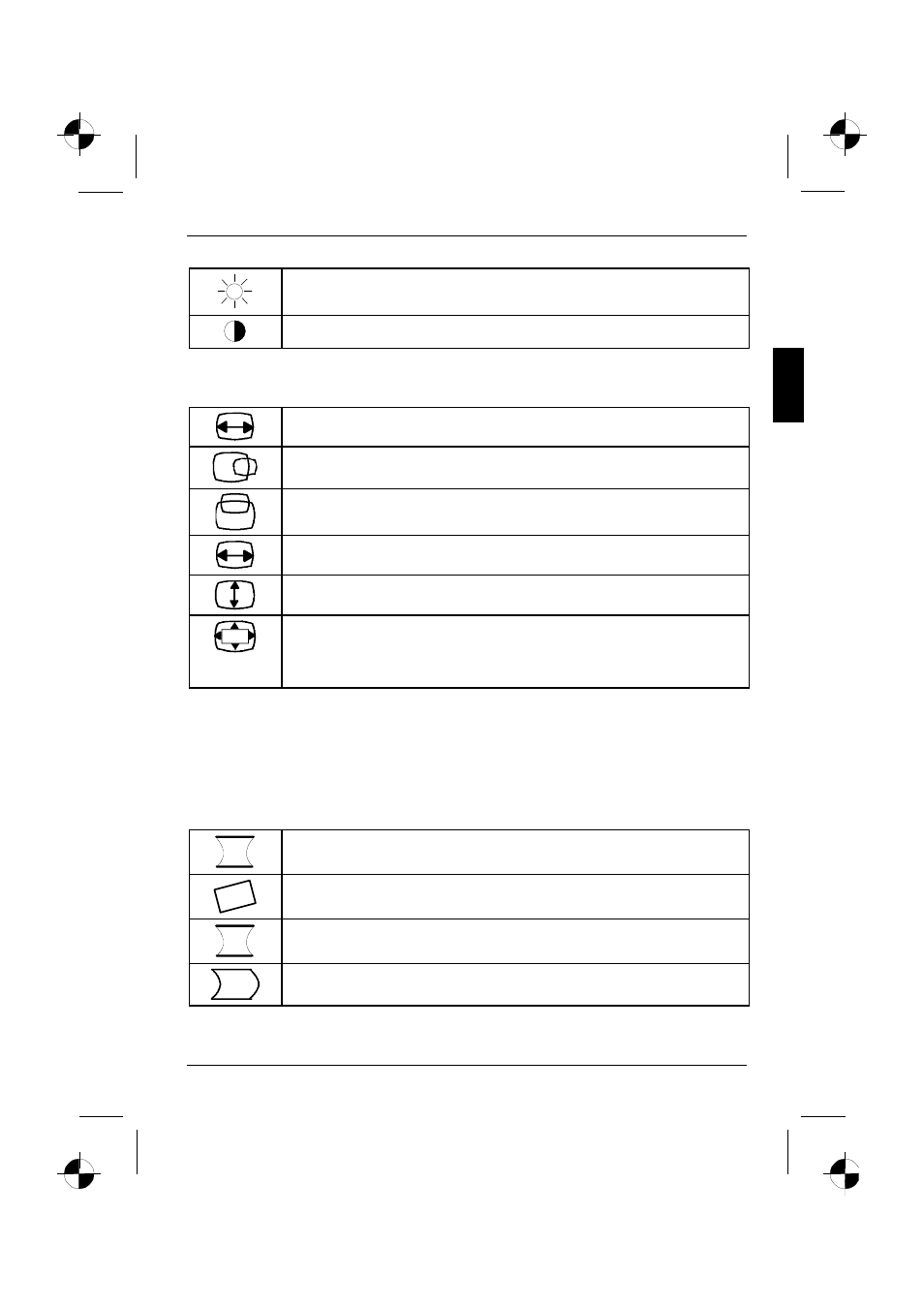

Setting the brightness of the background
Setting the contrast between the foreground and background
Setting picture position and size (SIZE/CENTER)
The set values for the picture position and size are only saved for the current input signal.
Calling the SIZE/CENTER setting window
Horizontal picture position ( H CENTER ): Shifting the picture to the left or to the
right
Vertical picture position ( V CENTER ): Shifting the picture down or up
Horizontal picture size ( H SIZE ): Making the picture narrower or wider
Vertical picture size ( V SIZE ): Making the picture shorter or longer
Proportional picture size ( ZOOM ): Increasing or reducing picture size while
retaining the side ratios
The picture zoom adjustment will stop as soon as either the horizontal or vertical
size reaches its maximum or minimum value.
Setting the picture geometry (GEOMETRY)
Tilt distortion must be set when the screen display is not axially symmetrical.
Pincushion distortion is when the sides of the screen display are bent inward or outward. Trapezoid
distortion is when the top or bottom of the screen display is too wide or too narrow. Parallelogram
distortion means that the sides of the picture bend to the left or right.
The set value for the picture rotation is saved for all input signals. All other values of the picture
geometry are only saved for the current input signal.
Calling the GEOMETRY options window
Picture rotation ( ROTATION ): Rotating the picture in a clockwise or counter-
clockwise direction
Vertical pincushion distortion ( PINCUSHION ): Bending the right and left side
inward or outward
Asymmetrical pincushion distortion ( PIN BALANCE ): adjusting right and left side
symmetrically
