Frymaster 45 Series - Manual (Page 80)

2-32
THROUGH MARCH 2001 APRIL 2001 AND LATER
12
10
6
11
15
1
12
7
11
2
13
14
4
5
3
8
10
9
3
16
13
14
6
10
9
8
5
11
15
1
16
18
17
19
20
21
22

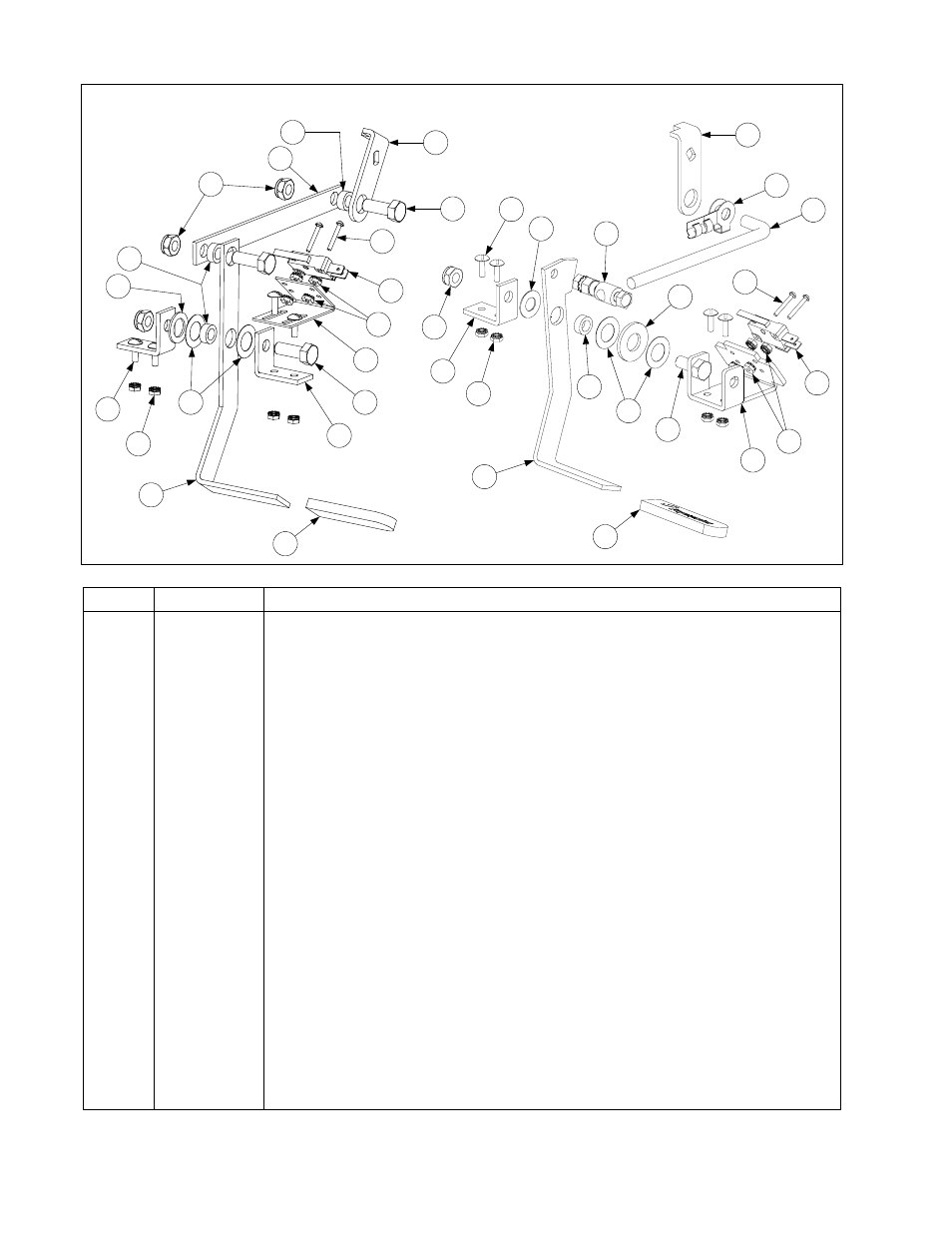

ITEM PART # COMPONENT
1 807-2103 Microswitch
2 930-0839 Bracket, Microswitch
3 810-1999 Bracket, Valve Handle
4 900-1853 Handle, Oil Return
5 814-0047 Sleeve, Handle
6 900-0239 Arm, Oil Return Valve
7 920-0220 Linkage, Oil Return Valve
8 809-0200 Washer, Flat
9 826-1381 Washer, Nylatron (Pkg of 10)
10 810-0220 Spacer, Tubular, .493 OD
11 809-0142 Screw, 5/16 – 24 x ¾” Hex Head
12 809-0056 Nut, 5/16 – 24, Hex Head, Nylon Lock
13 809-0104 Screw, 4 – 32 x ½” Slotted Truss Head
14 809-0247 Nut, Keps Hex, 8 – 32
15 826-1359 Screw, 4 – 40 x ¾” Slotted Pan Head (Pkg of 25)
16 826-1366 Nut, Keps Hex, 4 – 40 (Pkg of 25)
17 200-0938 Handle, Oil Return
18 810-1165 Washer, Teflon 0.372 I.D. X 0.753 O.D.
19 810-0285 Swivel, Oil Return Linkage Rod
20 200-1059 Rod, Oil Return Linkage
21 809-0601 Clip, Clevis
22 200-0821 Bracket, Microswitch
