2-18

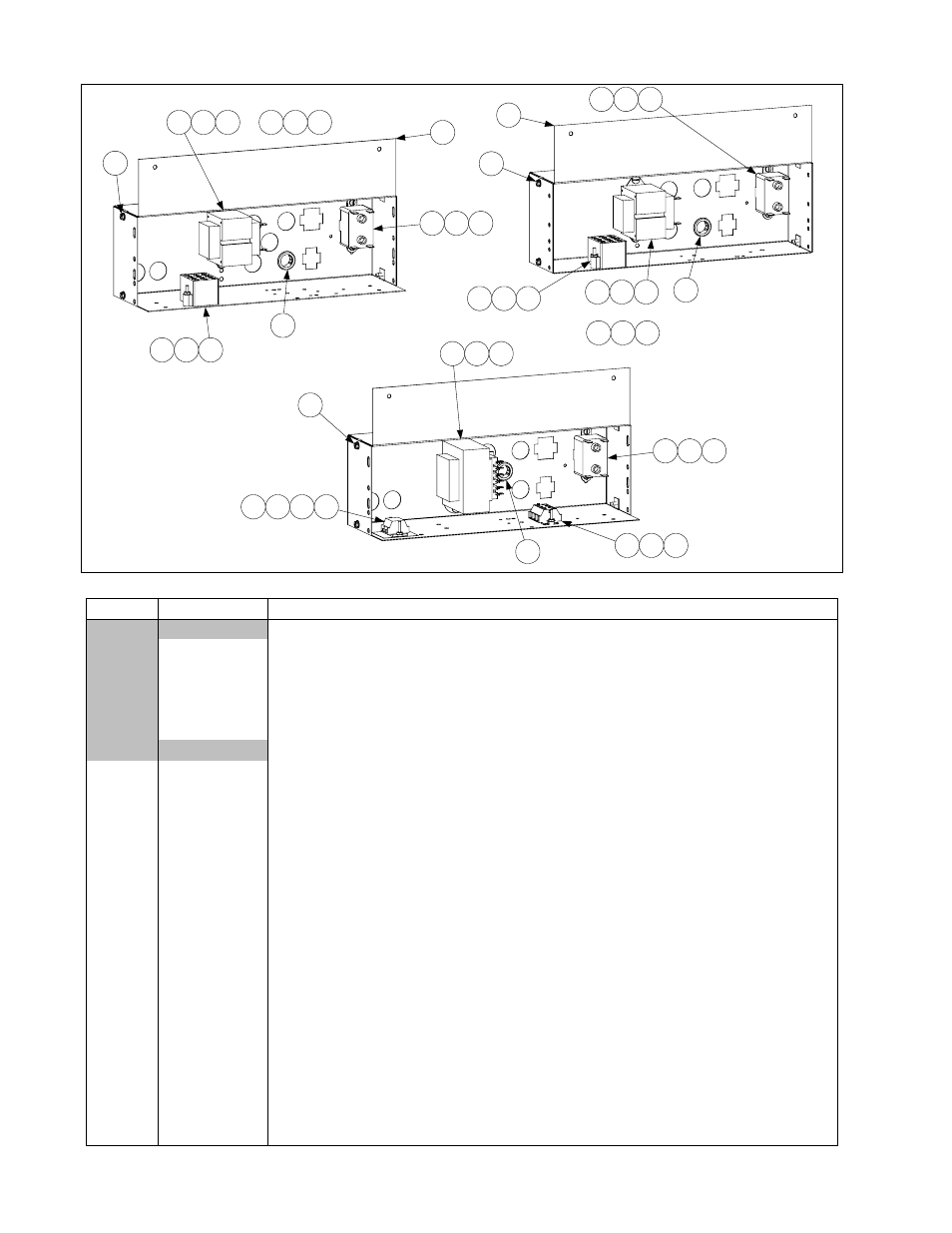

Filter Boxes
1
2
19 19
19
3 4 5
5 4 3
18
18
18
3 4 5
17 16 13
17 7 6
17 7 6
10 11 12
12 11 9 8
13 16 17 or 17 16 14
or
17 16 14
15 16 17
Non-CE Standard
Non-CE
Undercounter
CE Standard
ITEM PART # COMPONENT
Complete Box Assembly
806-4359SP 100-120V Standard Cabinet
806-4360SP 208-240V Standard Cabinet (Non-CE)
806-6709SP 230V Standard Cabinet (CE)
806-4361SP 100-120V Undercounter Cabinet
806-4362SP 208-240V Undercounter Cabinet (Non-CE)
Components
1 200-0409 Box, Standard Filter Control
2 200-0410 Box, Undercounter Filter Control
3 807-0012 Relay, 15 Amp, SPST, Filter
4 809-0096 Screw, 6-32 X ⅝-inch Slot Head
5 826-1358 Nut, 6-32 Hex (Pkg. of 25)
6 807-0276 Terminal Block, 20-Position
7 809-0097 Screw, 6-32 X 1-inch Slotted Round Head
8 816-0217 Paper, Insulating
9 810-1164 Terminal Block, 6-Position
10 810-1168 Terminal Block, 8- Position
11 826-1359 Screw, 4-40 X ¾-inch Slotted Round Head (Pkg. of 25)
12 826-1366 Nut, 4-40 Hex Keps (Pkg. of 25)
13 807-0800 Transformer, 100-120V Primary/24V Secondary 50/60 Hz 50VA
14 807-0680 Transformer, 208-240V Primary/24V Secondary 50/60 Hz 20VA
15 807-1999 Transformer, 208-240V Primary/12V & 24V Secondary Dual Voltage (CE)
16 809-0103 Screw, 8-32 X ½-inch Slotted Truss Head
17 809-0050 Nut, 8-32 Hex
18 807-0124 Bushing, Heyco (fits ⅞-inch (.875-inch) hole)
19 809-0360 Screw, #8 X ⅜-inch Washer Slotted Hex Head
