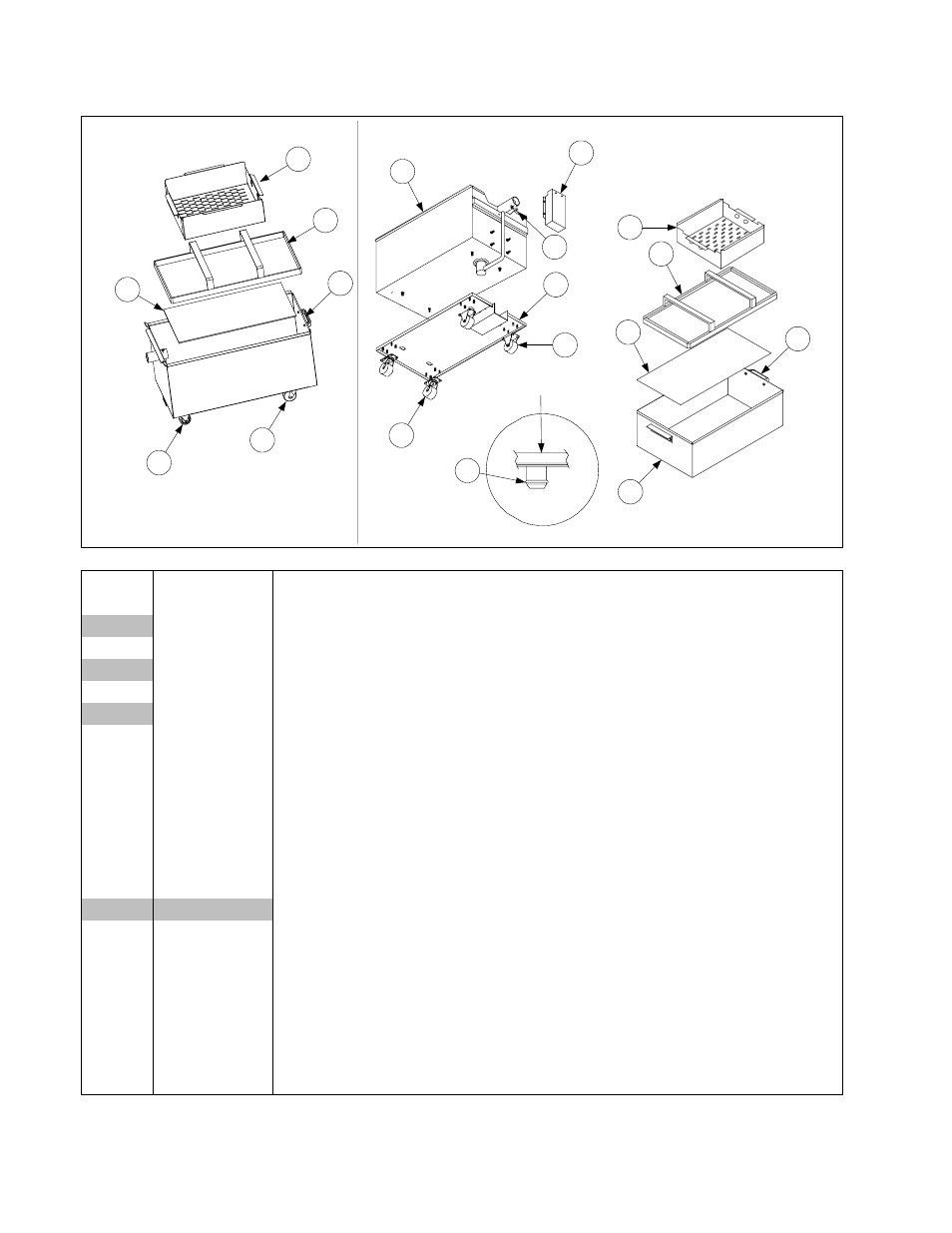

Filter Magic II Filter Pan Assemblies
Fitting on outside
bottom of inner pan.
1
8
4
9
10
5
3
11
7
6
2
12
B A
9
10
11
12
7
8
Item Part # Component
A 806-9255SP One-Piece Filter Pan Assembly (Items 7, 8, 10, 11, and 12)
823-2751SP One-Piece Filter Pan
B 806-6093SP Two-Piece Pan Assembly (Unique components are listed below.)
806-4338SP Outer Pan Assembly (Items 1, 3, 4, 5, 7, 8, and 806-4373)
1 823-1360SP Outer Pan
806-5282SP Inner Pan Assembly (Items 2, 6, 10, 11, and 12)
2 823-1731SP Inner Pan
3 823-1361 Base, Filter Pan Assembly
4 824-0291 Cover, Suction Tube
5 910-1350 Clamp, Suction Tube
6 816-0117 O-Ring, .609 OD
* 806-4373 Heater Strip Assembly
* 811-0861 Insulation, Foam (50-foot/15m roll
* 811-0746 Tape, Aluminum Insulation (50-yard/46m roll)
Components Used in Both Designs
7 810-0005 Caster, Rigid
8 810-0006 Caster, Swivel
9 824-0416 Crumb Screen
10 810-1406 Hold Down Ring Assembly
11 900-8827 Sanagrid Filter Screen
12 810-0180 Handle, Filter Pan
* 803-0170 Paper, Filter (100 sheets)
* 803-0002 Powder, Filter (80 1-cup applications)
* Not illustrated.
