13
Top
mounting
rail
Front angle
Window stool
Sash
seal
Cabinet
Frame curtains
INDOOR OUTDOOR
Sill Support
Nut
Bolt
INDOOR
OUTDOOR
ABOUT 1/2"
Cabinet
Screw(Type A)
Frame guide
(Type C)
Screw
Sash
Track
Front Angle
Screw(Type B)
Sill Support
(Type C)
Screw
Foam top window gasket
Top
mountaing rail Window Sash

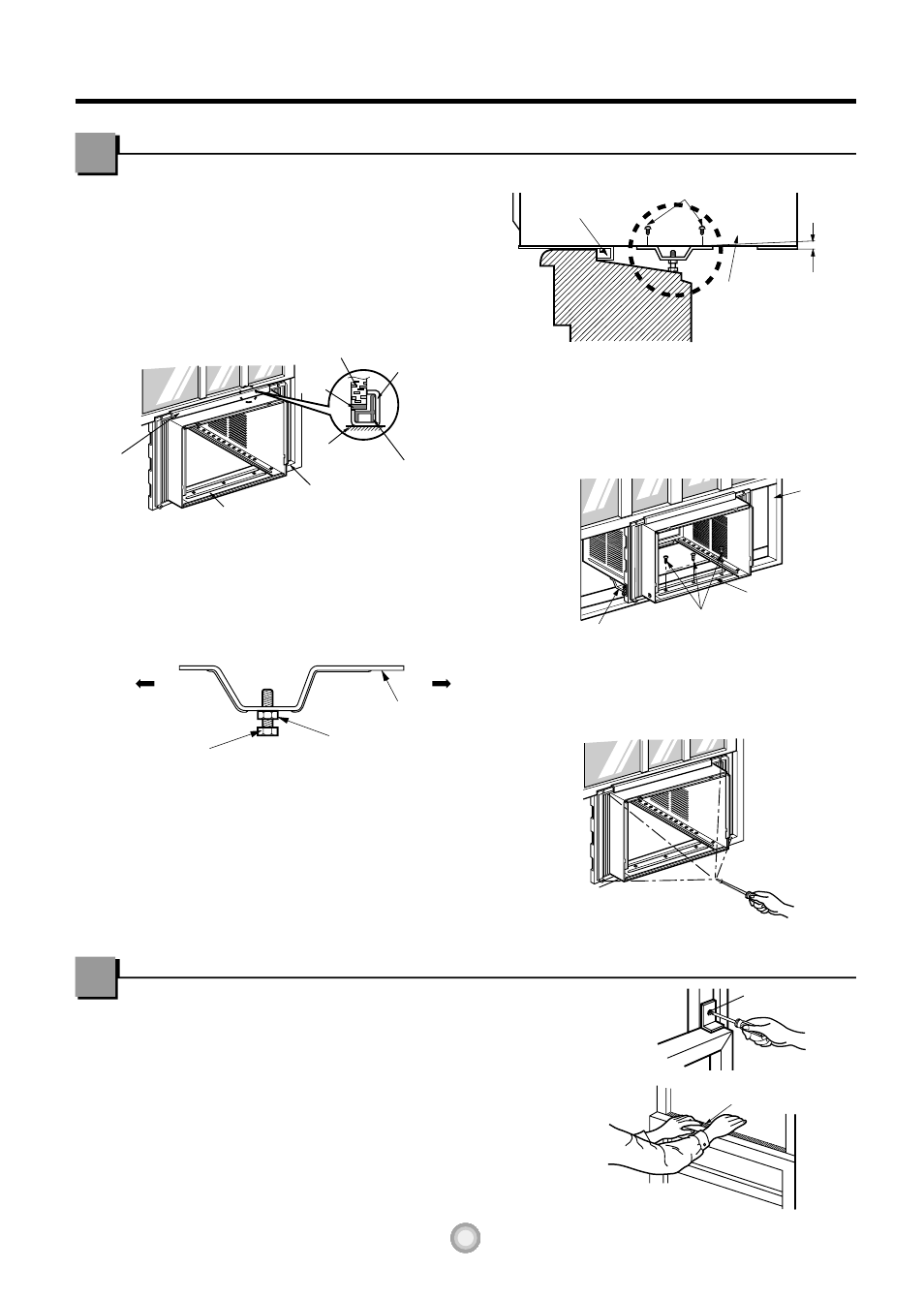

Step 1. Open the window and mark the
centerline of the window stool (or desired
air conditioner location).
Step 2. Carefully place the case on the window
stool and align the center mark on the
bottom front with the centerline of the
stool
Step 3. Pull the window down behind the top
mounting rail
NOTE: Do not shut the window so tightly that
movement of the frame curtains is restricted.
Step 4. Loosely assemble the sill supports.
Step 5. Select the position that will place the sill
supports near the outermost point on the
sill. Attach the sill supports to the case
track hole in relation to the selected
position using 2 type A screws in each
support.
Step 6. Adjust the bolt and the nut in each
support so that the case is installed with
a slight downward tilt (about 1/2").
Step 7. Secure the case to the window stool by
using 3 type B screws.
Step 8. Pull the frame curtains to each window
sash track. Attach them on each side to
the window sash and the window stool
using 4 type C screws.
Install the Case in the Window
Step 1. Attach the window locking bracket with
type C screw.
Step 2. Cut the foam top window gasket to the
window width.
Step 3. Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
Install the Window Locking Bracket and the Foam Top Window Gasket
Installation Instructions
