ENGLISH
12
Window sash seal
Frame
guide
Bottom of
case
(Type A)
(Type A)
Shipping screws ✓

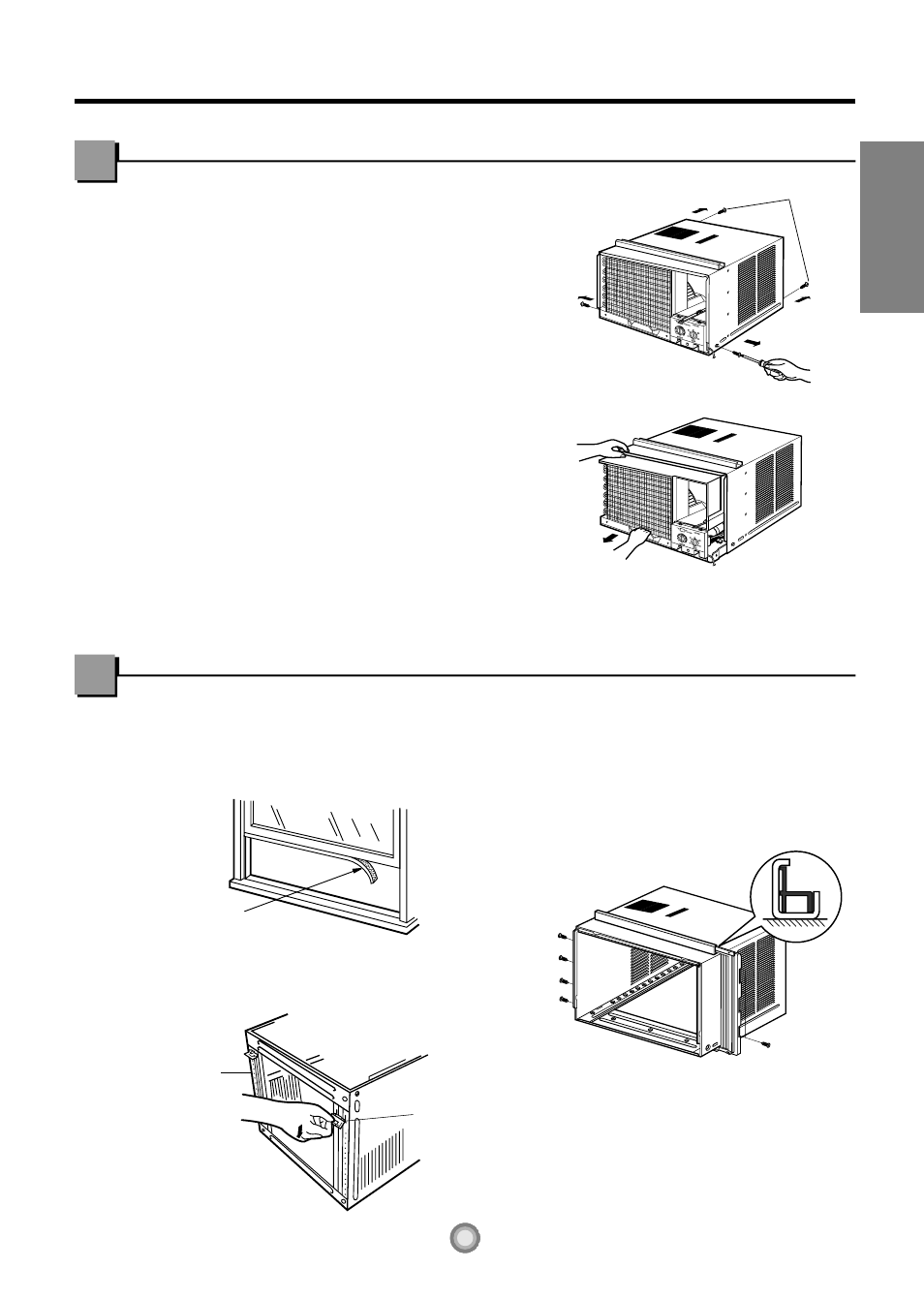

Remove the 2 shipping screws from the back
of the case.
✓
Remove the 2 screws on each side of the
case. Keep these for later use.
✓
Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
✓
Cut the window sash seal to the proper
length. Peel off the backing and attach the
seal to the underside of the window sash.
✓
Carefully insert the plastic frame guides into
the bottom of the case on each side.
✓
Insert the frames for the frame curtains into
the top mounting rail and the frame guides.
Attach the frame curtains to the side of the
case using 4 type A screws
Preparing the Unit for Installation
Before Installation...
Installation Instructions
When the frame guides are set, the arrows
should be pointing toward the back end of
the unit.
