Unpacking the Analyzer
Carefully unpack all items from the box and check that
you have the following items:
•
ESA612
•
Getting Started Manual
•
Users
Manual
CD
•
Carrying
case
•
Power
cord
•
15 – 20 A Adapter (USA only)
•
ESA USA Accessory Kit (USA, Australia, and Israel
only)
•
ESA EUR Accessory Kit
•
Ansur demo CD
•
Null Post Adapter
•
5-to-5 Banana to ECG Adapter (BJ2ECG)
•
Transfer
cable
Instrument Familiarization

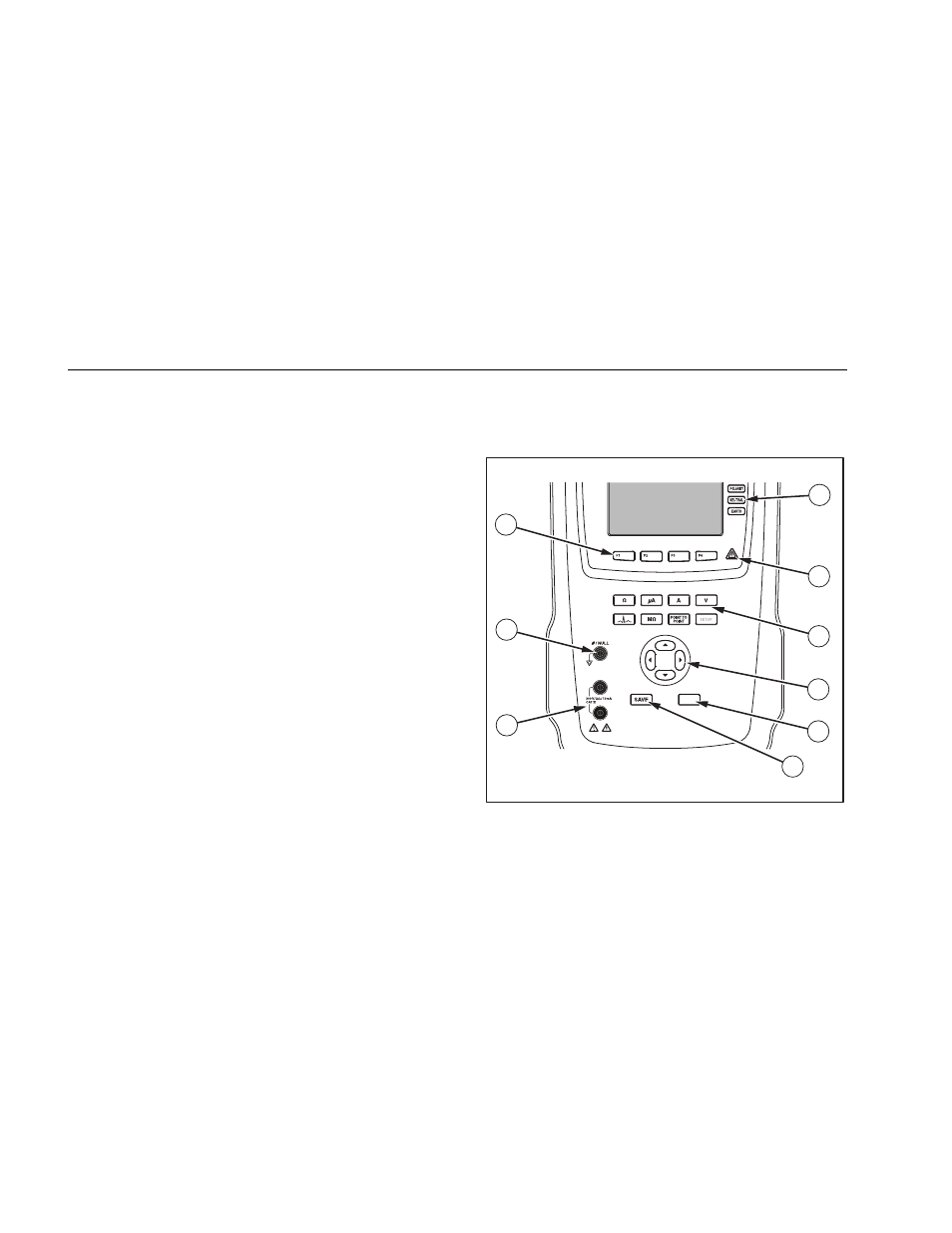

Figure 1 and Table 2 describes the front-panel controls
and connections of the Analyzer.
TEST
2
3
7
8
9
1
4
5
6
fis116.eps
Figure 1. Front-Panel Controls and Connections
