FUJITSU MPA3043AT User Manual
Page 39
C141-E034-02EN
3 - 12
(3)
Special setting 1 (SP1)
The number of cylinders reported by the IDENTIFY DEVICE command is selected.

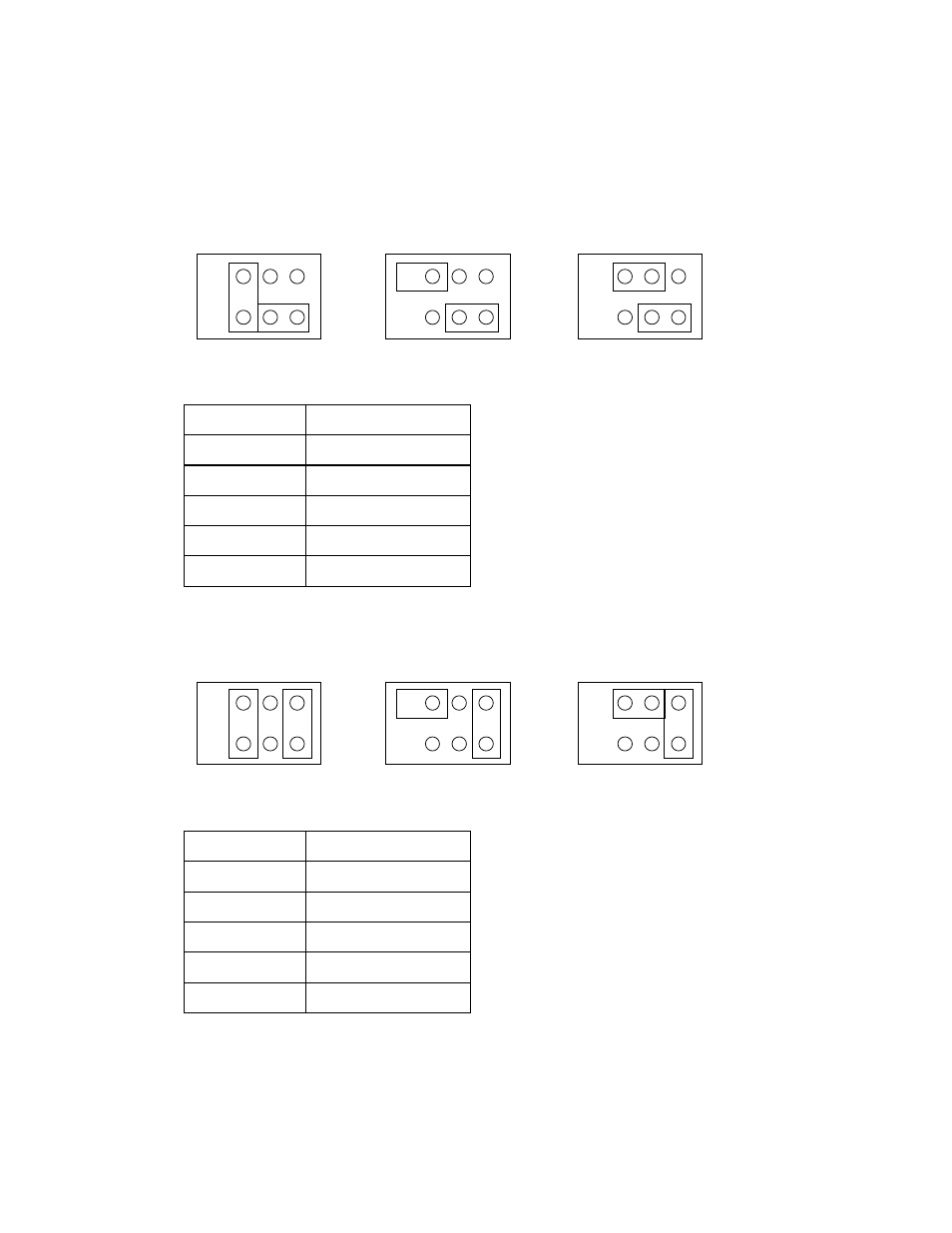

(a) Default mode
2 4 6
1 3 5
2 4 6
Slave Device
Master Device
1 3 5
2 4 6
1 3 5
Cable Select
Model
No. of cylinders
MPA3017AT
3,390
MPA3026AT
5,086
MPA3035AT
6,780
MPA3043AT
9,042
MPA3052AT
10,850
(b) Special mode
2 4 6
1 3 5
2 4 6
Slave Device
Master Device
1 3 5
2 4 6
1 3 5
Cable Select
Model
No. of cylinders
MPA3017AT
3,390
MPA3026AT
4,092
MPA3035AT
4,092
MPA3043AT
4,092
MPA3052AT
4,092
