FUJITSU MPA3043AT User Manual
Page 149
C141-E034-02EN
5 - 88
5.6.4.11 Device terminating an Ultra DMA data in burst
5.6.4.2 contains the values for the timings for each of the Ultra DMA Modes.
Note: The definitions for the STOP, DDMARDY and HSTROBE signal lines are no longer in
effect after DMARQ and DMACK are negated.

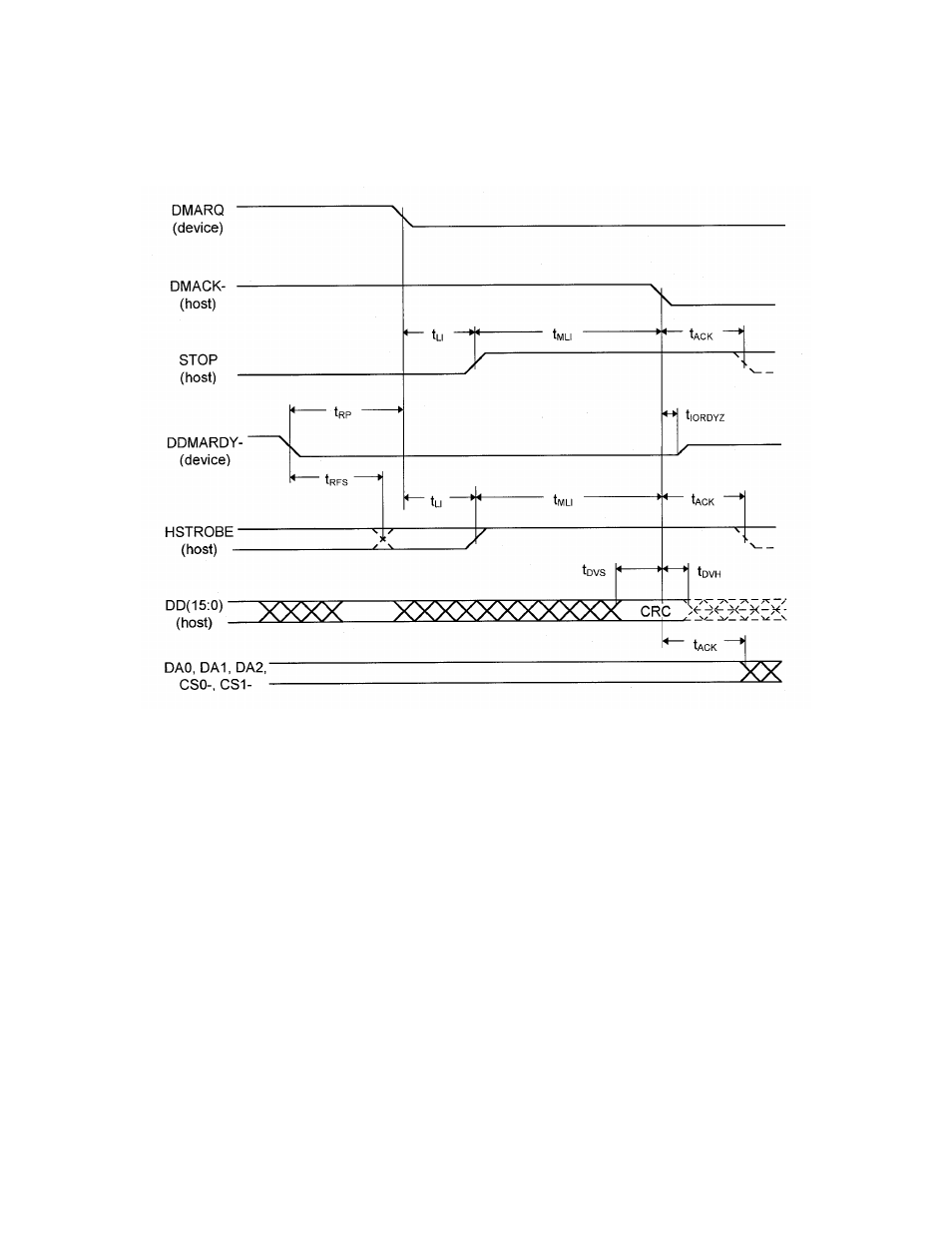

Figure 5.21 Device terminating an Ultra DMA data out burst
