3.4.2 Factory default setting

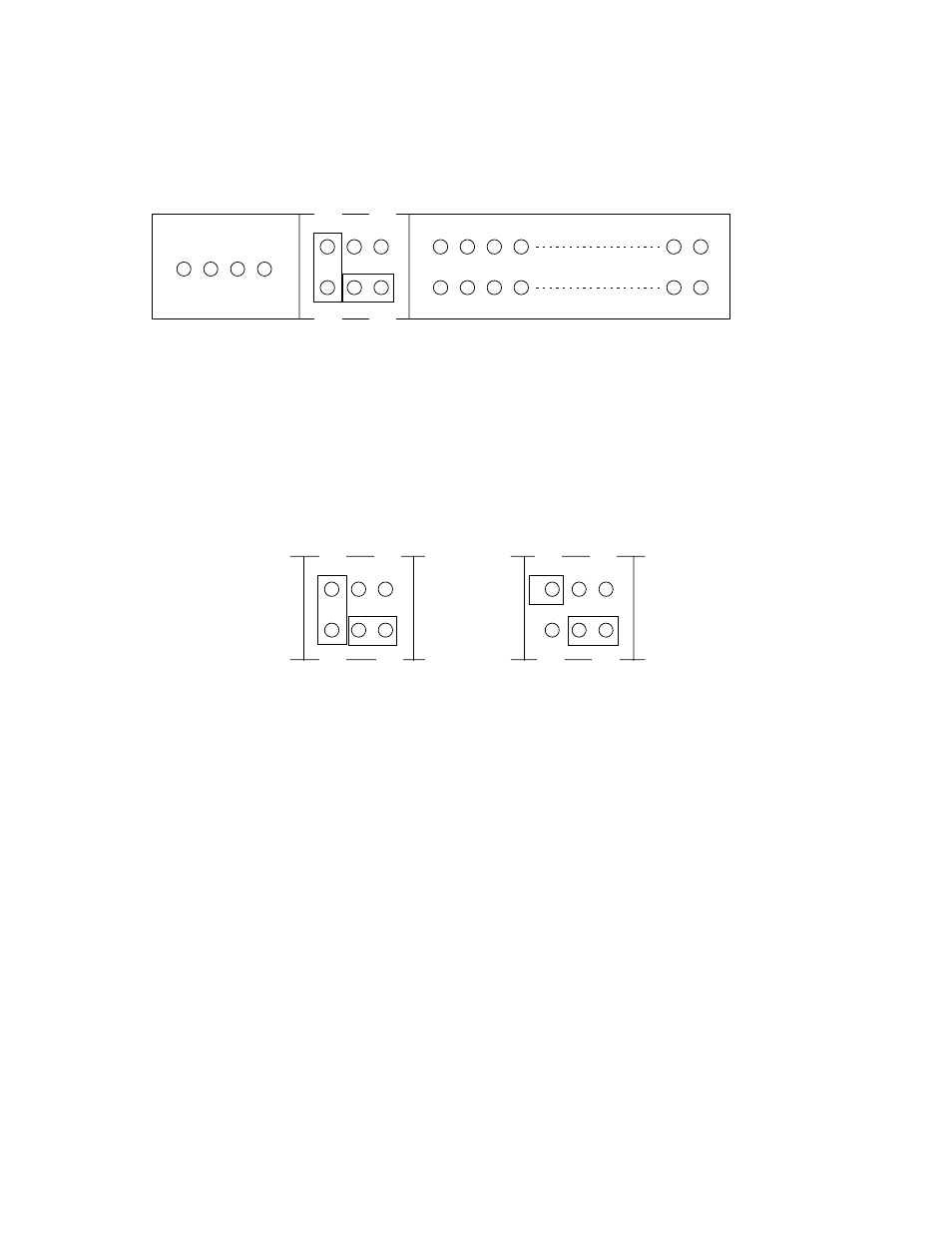

Figure 3.11 shows the default setting position at the factory.
C04
A01
A02
C01
A39
A40
05
06
B01
B02
Figure 3.11 Factory default setting
3.4.3 Jumper configuration
(1) Device type
Master device (device #0) or slave device (device #1) is selected.
06 B02
05 B01
(a) Master device (b) Slave device
B01 05
06 B02
Figure 3.12 Jumper setting of master or slave device
(2) Cable Select (CSEL)
In Cable Select mode, the device can be configured either master device or slave device. For use of
Cable Select function, Unique interface cable is needed.
